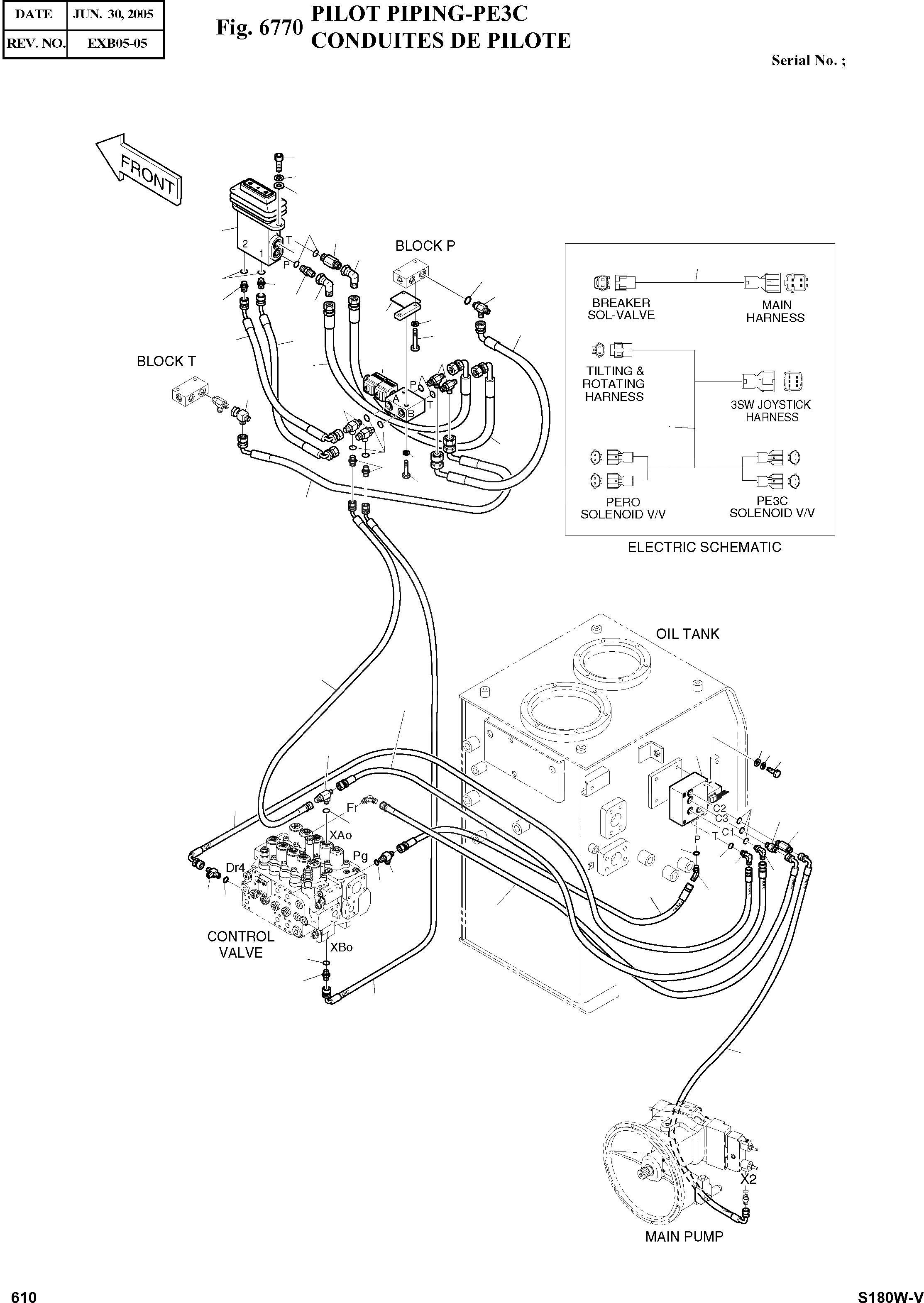

Запчасти Doosan Daewoo PILOT PIPING-PE3C OPTION PARTS

-

K1004144F2

PILOT PIPING-PE3C/PERO

SERIAL: 1001-1285

-2шт.

-

K1004144F2A

PILOT PIPING-PE3C/PERO

SERIAL: 1286

-2шт.

1

420-00340B

VALVE;BREAKER PAKAGE

desc: VANNE

1шт.

3

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

4

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

5шт.

5

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

3шт.

9

S8000111

O-RING

desc: JOINT TORIQUE

17шт.

10

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

11

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

12

2181-1126D14

ADAPTER

desc: ADAPTATEUR

2шт.

13

2181-1126D39

ADAPTER

desc: ADAPTATEUR

4шт.

14

2181-1126D7

ADAPTER

desc: ADAPTATEUR

1шт.

15

2181-1126D34

ADAPTER

desc: ADAPTATEUR

1шт.

16

2181-1702D4

ELBOW

desc: COUDE

2шт.

17

2181-1126D34

ADAPTER

desc: ADAPTATEUR

1шт.

18

181-00709

ELBOW;UNION

desc: COUDE

2шт.

19

2181-1951D1

TEE

desc: TE

4шт.

21

2181-1951D19

TEE

desc: TE

1шт.

22

181-00673D3

TEE;UNION

desc: TE

1шт.

23

K1002694

TEE;SHUTTLE

desc: TE

2шт.

24

K1004103

TEE;SHUTTLE

desc: TE

1шт.

25

K1002677

SOLENOID;VALVE

desc: VANNE

1шт.

26

K1004104

BRACKET

desc: SUPPORT

1шт.

27

S0559066

BOLT

desc: BOULON A 6 PANS

2шт.

28

S0556266

BOLT

desc: BOULON A 6 PANS

2шт.

29

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

30

530-00330

HARNESS;BREAKER

desc: HARNAIS

1шт.

31

K1000408

HARNESS

desc: HARNAIS

1шт.

32

2184-1045D200

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1046D61

HOSE PF1/4-1750L

desc: TUYAU FLEXIBLE

1шт.

34

DS2053124

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1046D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1061D277

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

37

DS2055277

HOSE PF3/8-3000L

SERIAL: 1001-1285

1шт.

37

DS2055599

HOSE PF3/8-2300L

SERIAL: 1286

1шт.

38

DS2055604

HOSE PF3/8-3500L

SERIAL: 1001-1285

1шт.

38

DS2055277

HOSE PF3/8-3000L

SERIAL: 1286

1шт.

39

DS2059482

HOSE PF3/8-450L

desc: TUYAU FLEXIBLE

1шт.

40

DS2059482

HOSE PF3/8-450L

desc: TUYAU FLEXIBLE

1шт.

41

DS2055586

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

42

DS2055586

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

43

DS2059483

HOSE PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

44

DS2059484

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

53

420-00347

VALVE;PEDAL

desc: VANNE

1шт.

54

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON DE PLOT

2шт.

55

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

56

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

59

2181-2419D1

ELBOW

desc: COUDE

1шт.
