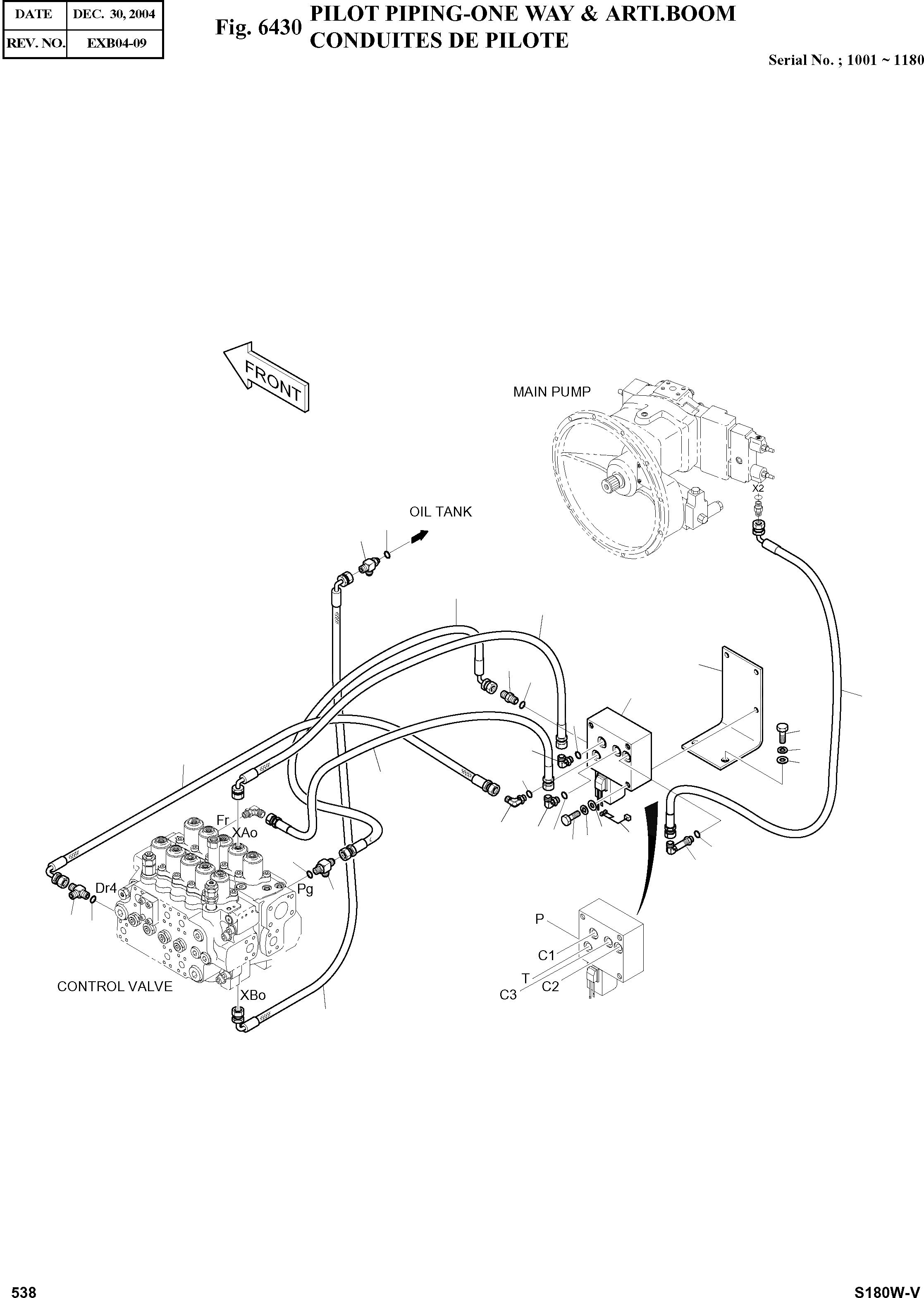

Запчасти Doosan Daewoo PILOT PIPING-ONE WAY & ARTI.BOOM OPTION PARTS

-

400-01221

PILOT PIPING-ONE WAY

SC: D

-2шт.

1

420-00340

VALVE;BREAKER

SERIAL: 1001-1116

1шт.

1

420-00340A

VALVE;BREAKER

SERIAL: 1117-1135

1шт.

1

420-00340B

VALVE;BREAKER

SERIAL: 1136

1шт.

2

195-00224A

BRACKET

desc: SUPPORT

1шт.

3

S0558953

BOLT M10X1.5X70

desc: BOULON

3шт.

4

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

5

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

3шт.

6

S0515253

BOLT M12X1.75X30

desc: BOULON

2шт.

7

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

8

S5010713

WASHER;PLAIN M12

desc: RONDELLE PLATE

2шт.

9

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

11

2181-1126D14

ADAPTER PFO-PF1/4

desc: ADAPTEUR

1шт.

12

2181-1702D4

ELBOW PFO-PF1/4

desc: COUDE

3шт.

13

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

3шт.

15

2184-1046D81

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1046D130

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1061D216

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1046D68

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

19

2184-1045D99

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

1шт.

20

2184-1046D61

HOSE PF1/4-1750L

desc: TUYAU FLEXIBLE

1шт.

21

2181-1702D56

ELBOW

desc: COUDE

1шт.

22

530-00330

HARNESS;BREAKER

desc: HARNAIS

1шт.
