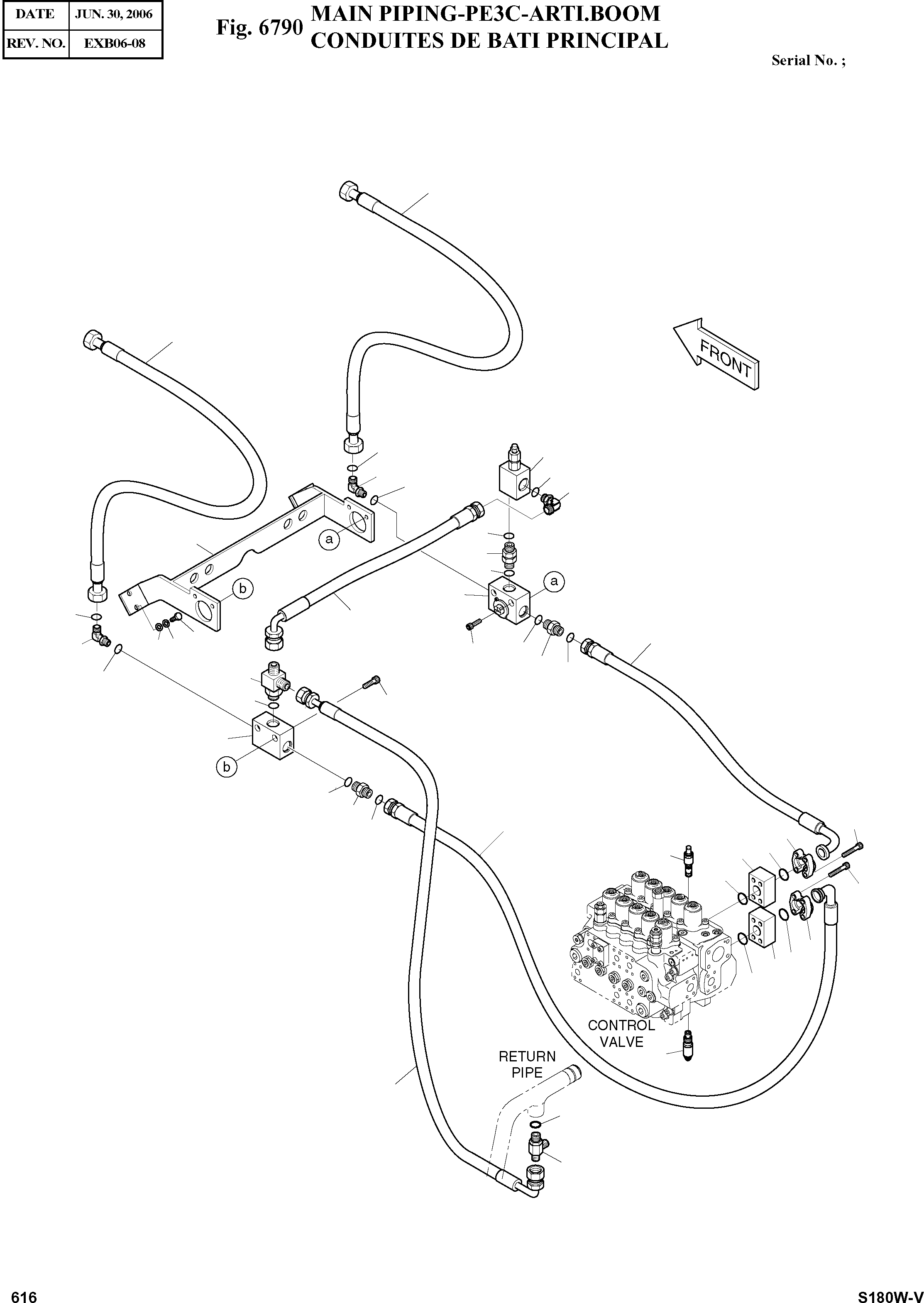

Запчасти Doosan Daewoo MAIN PIPING-PE3C-ARTI.BOOM OPTION PARTS

-

K1008288F1A

MAIN PIPING-PE3C-ARTI.BOOM

SC: D

-2шт.

1

2420-9627B

VALVE;RELIEF

desc: VANNE

1шт.

2

K1002695A

VALVE;SWITCH

desc: VANNE

2шт.

3

2181-2614

BLOCK;SPACER

desc: BLOC

2шт.

4

K1008287

BRACKET

desc: SUPPORT

1шт.

5

DS2018109

HOSE

desc: TUYAU FLEXIBLE

1шт.

6

DS2055874

HOSE PF1-870L

desc: TUYAU FLEXIBLE

1шт.

7

DS2055903

HOSE PF1-580L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1200D52

HOSE

desc: TUYAU FLEXIBLE

1шт.

9

DS2011335

HOSE

desc: TUYAU FLEXIBLE

2шт.

10

2181-4133D6

ADAPTER

desc: ADAPTATEUR

2шт.

11

2181-2818

ADAPTER

desc: ADAPTATEUR

1шт.

12

2181-2815D1

ELBOW

desc: COUDE

2шт.

13

2181-1702D73

ELBOW

desc: COUDE

1шт.

14

2181-1951D36

TEE

desc: TE

2шт.

15

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

16

S8000291

O-RING

desc: JOINT TORIQUE

9шт.

17

S8030161

O-RING

desc: JOINT TORIQUE

4шт.

18

2181-9083

FLANGE;SPLIT

desc: BRIDE

4шт.

19

S2215766

BOLT;SOCKET M12X1.75X55

desc: BOULON DE PLOT

4шт.

20

S2213066

BOLT;SOCKET M10X1.5X70

desc: BOULON DE PLOT

8шт.

21

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

4шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

23

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

4шт.

24

2420-1226

VALVE;OVERLOAD RELIEF

desc: VANNE

2шт.
