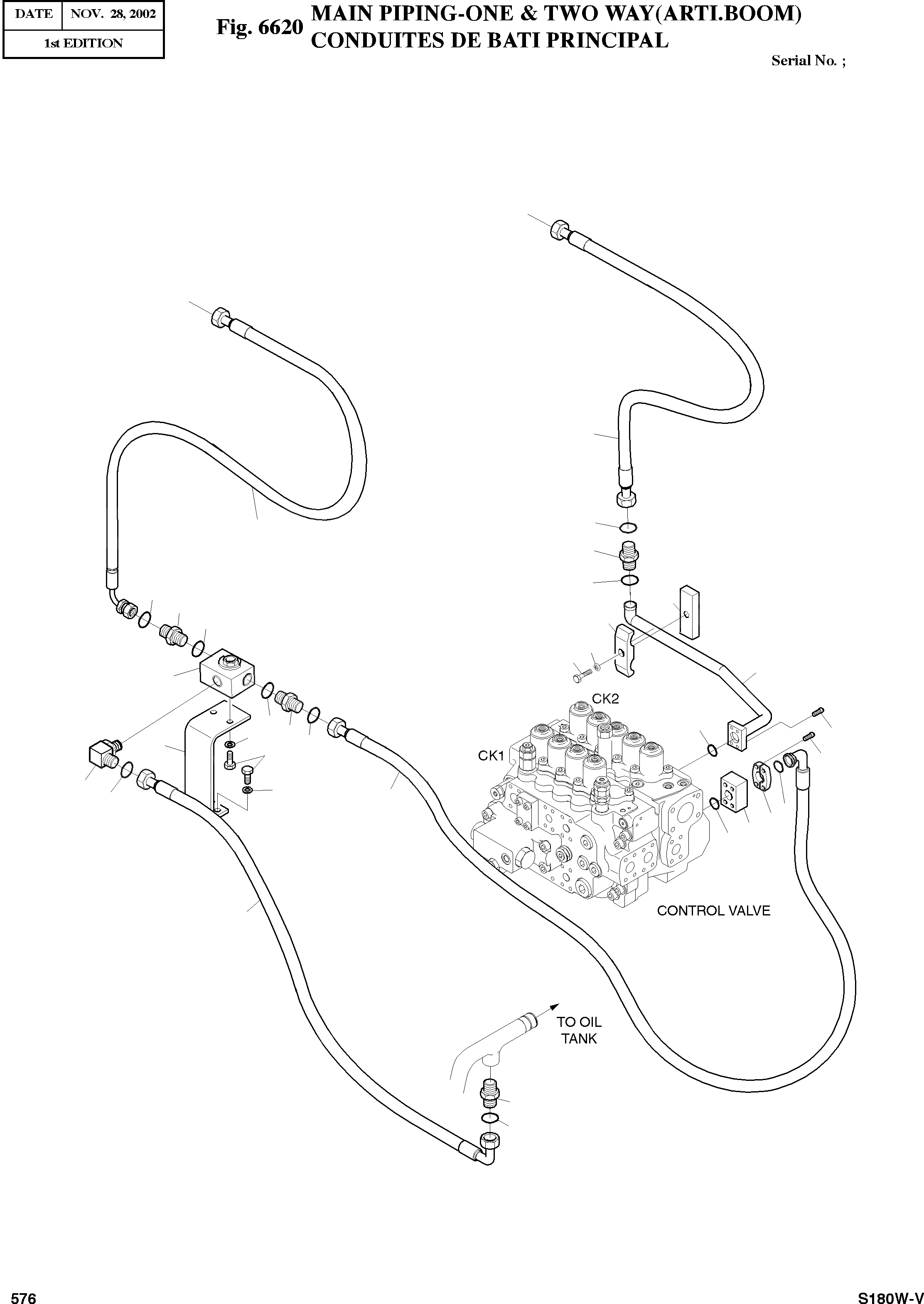

Запчасти Doosan Daewoo MAIN PIPING-ONE & TWO WAY(ARTI.BOOM) OPTION PARTS

-

400-00625

MAIN PIPING

SC: D

-2шт.

1

140-00148

PIPE

desc: TUYAU

1шт.

2

2420-9633A

VALVE;SWITCH

desc: VANNE

1шт.

3

195-00252

BRACKET

desc: SUPPORT

1шт.

4

2124-1025D5

CLAMP

desc: COLLIER

1шт.

5

191-00158

SEAT;SCREW

desc: SIEGE

1шт.

6

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

5шт.

7

S0515253

BOLT M12X1.75X30

desc: BOULON

4шт.

8

S0561053

BOLT M12X1.75X65

desc: BOULON

1шт.

9

2180-1026D19

O-RING

desc: JOINT TORIQUE

3шт.

10

S8000291

O-RING

desc: JOINT TORIQUE

5шт.

11

S8030161

O-RING

desc: JOINT TORIQUE

3шт.

12

2181-4133D6

ADAPTER

desc: ADAPTEUR

3шт.

13

2181-1702D73

ELBOW

desc: COUDE

1шт.

14

S2213066

BOLT;SOCKET M10X1.5X70

desc: BOULON DE PLOT

4шт.

15

S2212366

BOLT;SOCKET M10X1.5X35

desc: BOULON DE PLOT

4шт.

16

2181-9083

FLANGE;SPLIT

desc: BRIDE

2шт.

17

2184-1200D52

HOSE PF1-1450L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1036D429

HOSE PF1-700L

desc: TUYAU FLEXIBLE

1шт.

19

2181-1951D36

TEE

desc: TE

1шт.

20

2181-2614

BLOCK;SPACER

desc: BLOC

1шт.

21

DS2011335

HOSE 1"-1990L

desc: TUYAU FLEXIBLE

1шт.

22

DS2013398

HOSE 1"- 2010L

desc: TUYAU FLEXIBLE

1шт.
