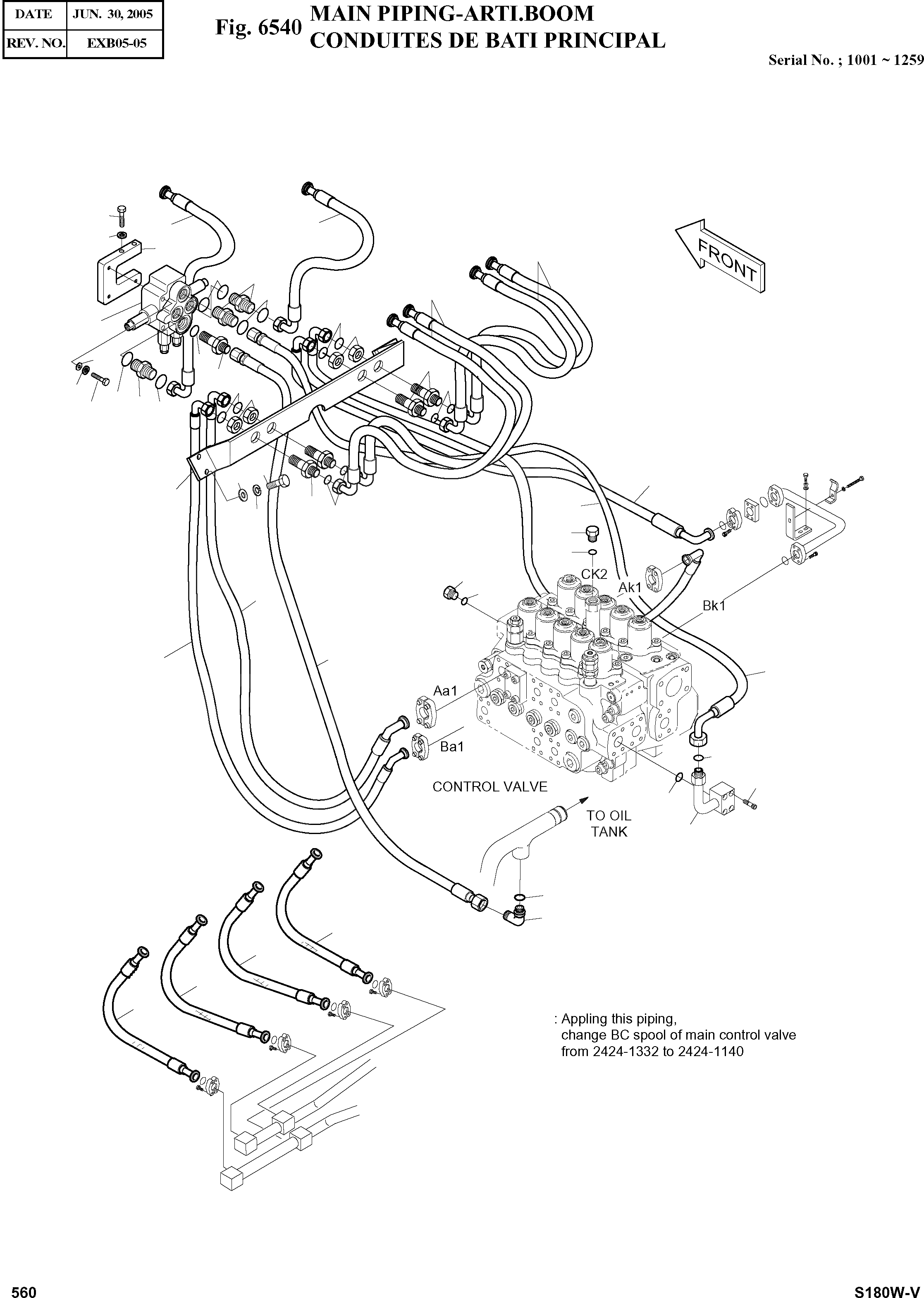

Запчасти Doosan Daewoo MAIN PIPING-ARTI.BOOM OPTION PARTS

-

400-00620

MAIN PIPING FOR ARTI. BOOM

SC: D

-2шт.

1

2420-9365

VALVE;CONTROL

desc: VANNE

1шт.

2

195-02061

BRACKET

desc: SUPPORT

1шт.

3

195-02062

BRACKET

desc: SUPPORT

1шт.

4

2183-3834

PIPE

desc: TUYAU

1шт.

5

2184-1229D1

HOSE PF3/4-900L

desc: TUYAU FLEXIBLE

2шт.

6

2184-1229D2

HOSE PF3/4-850L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1036D112

HOSE PF1-1200L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1250D43

HOSE PF3/4-1450L

desc: TUYAU FLEXIBLE

1шт.

9

DS2026079

HOSE PF1-PF3/4-950L

desc: TUYAU FLEXIBLE

1шт.

10

DS2026081

HOSE PF1-PF3/4-1000L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1250D38

HOSE PF3/4-950L

desc: TUYAU FLEXIBLE

1шт.

12

DS2026083

HOSE PF1-PF3/4-1300L

desc: TUYAU FLEXIBLE

1шт.

13

2424-1140

SPOOL;BC

desc: TIROIR

1шт.

14

2181-1950D7

PLUG PFO1/2

desc: BOUCHON

2шт.

16

2181-2627D1

ADAPTER PFO3/4-UNF1 3/16

desc: ADAPTEUR

3шт.

17

2181-1126D25

ADAPTER PFO1-PF1

desc: ADAPTEUR

1шт.

18

2181-1702D11

ELBOW PFO1-PF1

desc: COUDE

1шт.

22

2180-1026D19

O-RING

desc: JOINT TORIQUE

1шт.

23

S8030121

O-RING

desc: JOINT TORIQUE

12шт.

24

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

25

S8000231

O-RING

desc: JOINT TORIQUE

3шт.

26

S8000291

O-RING

desc: JOINT TORIQUE

2шт.

27

S2212766

BOLT;SOCKET M10X1.5X55

desc: BOULON DE PLOT

4шт.

29

S0559253

BOLT M10X1.5X85

desc: BOULON

3шт.

30

S0512253

BOLT M10X1.5X30

desc: BOULON

4шт.

31

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

7шт.

32

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

7шт.

35

S0558453

BOLT M10X1.5X45

desc: BOULON

2шт.

36

DS2415007

ADAPTER

desc: ADAPTEUR

4шт.

37

121-00010D8

NUT 3/16

desc: ECROU

4шт.

38

DS2013397

HOSE 2040L

desc: TUYAU FLEXIBLE

2шт.

39

DS2025036

HOSE 2050L

desc: TUYAU FLEXIBLE

4шт.
