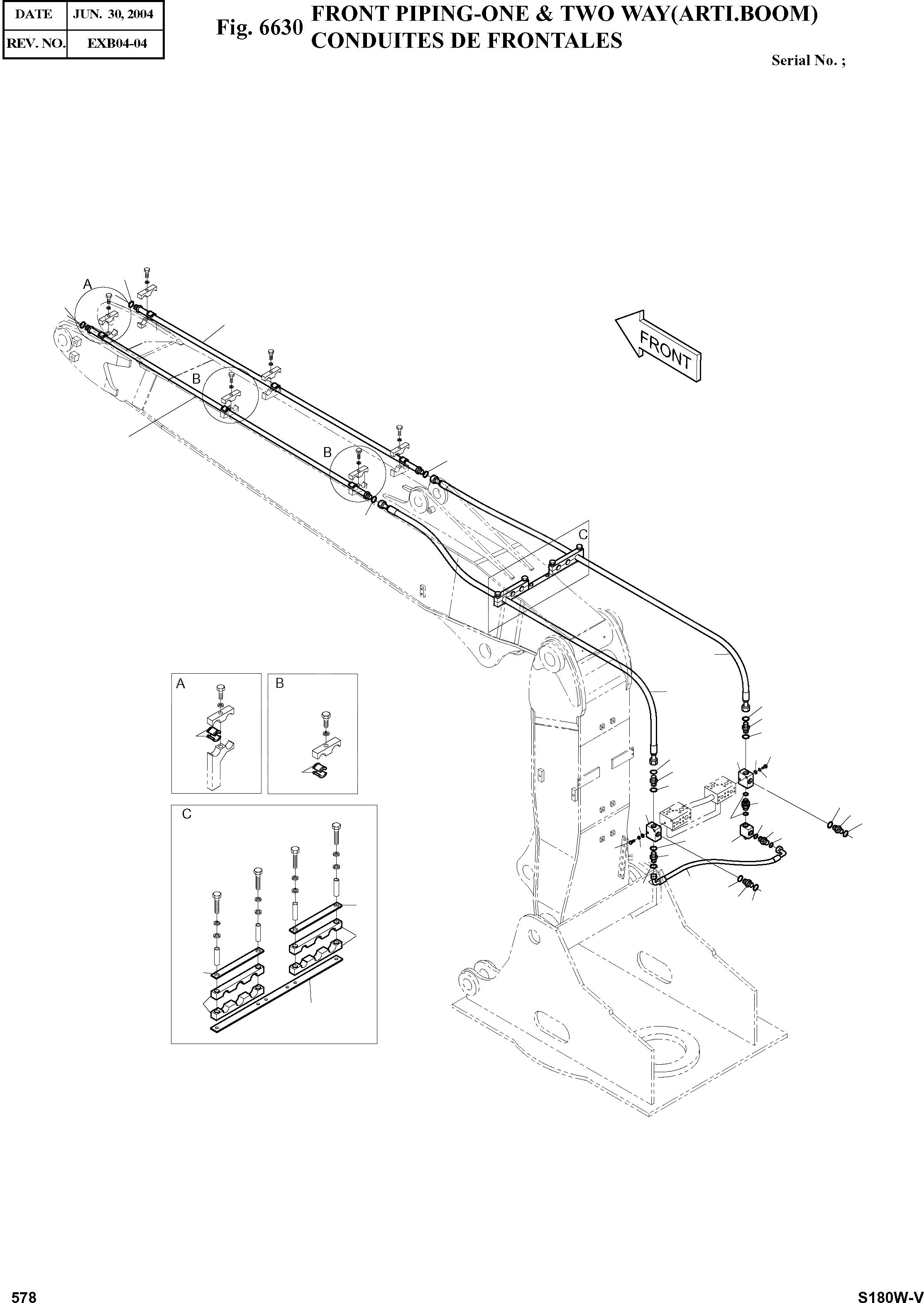

Запчасти Doosan Daewoo FRONT PIPING-ONE & TWO WAY(ARTI.BOOM) OPTION PARTS

-

400-00626

PIPING;FRONT OPTION FOR ARTI. BOOM

SC: D

-2шт.

2

DS2011280

HOSE PF1-2700L

desc: TUYAU FLEXIBLE

2шт.

3

2184-1198D68

HOSE PF1-5800L

desc: TUYAU FLEXIBLE

1шт.

4

140-00751

PIPE

desc: TUYAU

2шт.

5

2420-9627A

VALVE;RELIEF

SERIAL: 1001-1148

1шт.

5

2420-9627B

VALVE;RELIEF

SERIAL: 1149

1шт.

6

2181-2818

ADAPTER;SP

desc: ADAPTEUR

1шт.

7

2181-4133D6

ADAPTER PFO1-UNF1 7/16

desc: ADAPTEUR

6шт.

8

423-00090

BLOCK

desc: BLOC

2шт.

10

124-00034

CLAMP;RUBBER

desc: ATTACHE DE TUBE

8шт.

11

S0559353

BOLT M10X1.5X90

desc: BOULON

4шт.

12

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

13

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

4шт.

14

S8000291

O-RING

desc: JOINT TORIQUE

8шт.

15

S8030161

O-RING

desc: JOINT TORIQUE

10шт.

16

621-00503

PLATE

desc: PLAQUE

2шт.

17

621-00504

PLATE

desc: PLAQUE

4шт.

18

2161-2251A

RUBBER

desc: CAOUTCHOUC

12шт.
