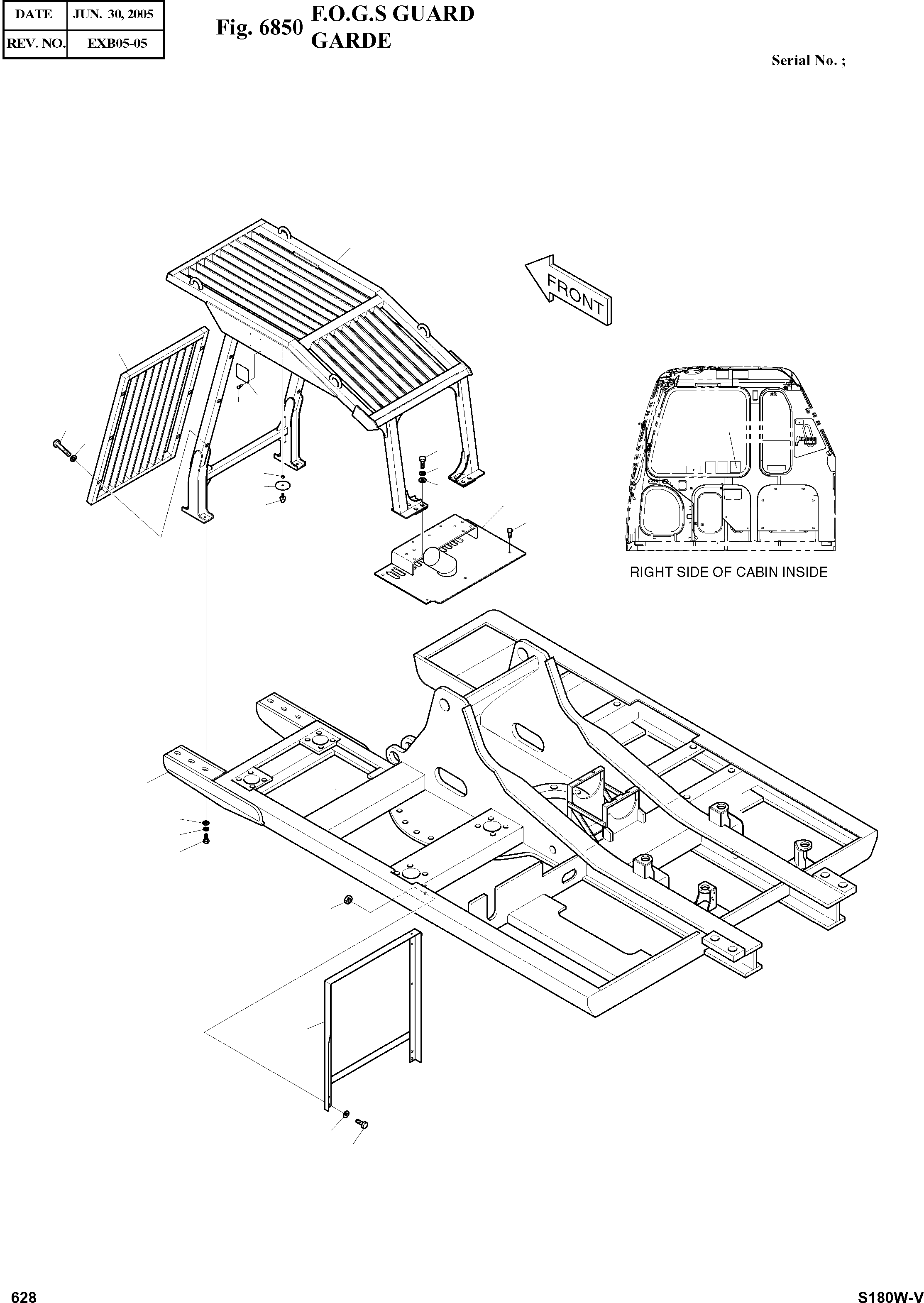

Запчасти Doosan Daewoo F.O.G.S GUARD OPTION PARTS

-

K1010606A

F.O.G.S ASS'Y

SC: D

-2шт.

1

2623-1253C

GUARD;F.O.G.S

desc: GARDE

1шт.

2

S0521466

BOLT M16X2.0X40

desc: BOULON

6шт.

3

S5102903

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

14шт.

4

S0521666

BOLT M16X2.0X50

desc: BOULON

8шт.

5

S0558853

BOLT M10X1.5X65

desc: BOULON

6шт.

6

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

7

K1009432

COVER;F.O.G.S

desc: COUVERCLE

1шт.

8

2142-1123

GUARD;FRONT

desc: GARDE

1шт.

9

2120-2196D4

BOLT;SET

desc: BOULON

5шт.

10

2122-1002D2

RIVET

desc: RIVET

4шт.

11

K1013180

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.

12

190-00003

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.

13

2114-1058D39

WASHER

desc: RONDELLE

14шт.

14

K1006896

MAIN FRAME;F.O.G.S

desc: ARMATURE

1шт.

15

2161-2226

STOPPER;RUBBER

desc: CHAPEAU

1шт.

16

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

1шт.

17

K1010753

SUPPORT

desc: SUPPORT

1шт.

18

S0515253

BOLT M12X1.75X30

desc: BOULON

4шт.

19

2114-1058D30

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

20

S4012733

NUT

desc: ECROU

4шт.

21

S4012633

NUT

desc: ECROU

1шт.
