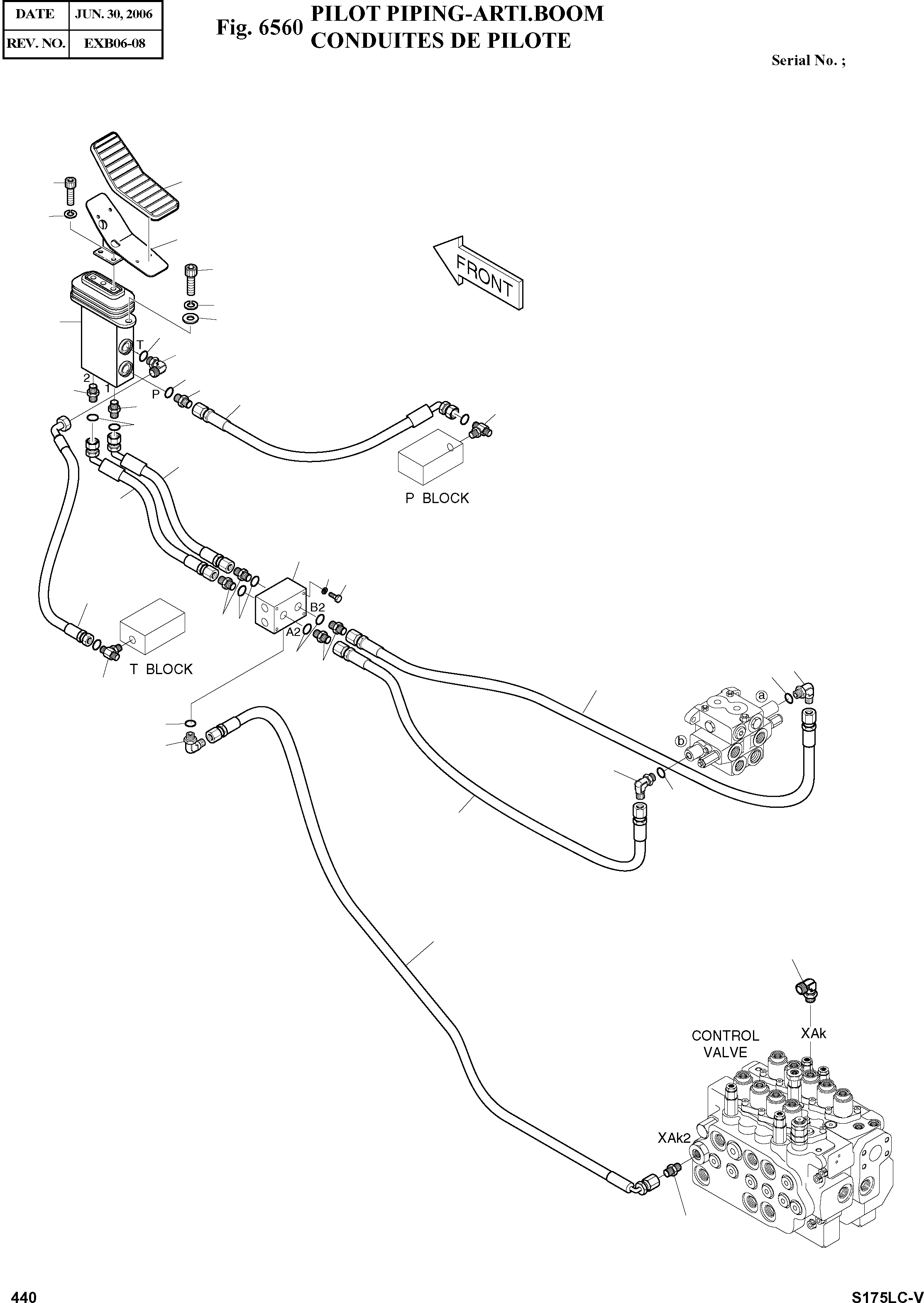

Запчасти Doosan Daewoo PILOT PIPING-ARTI.BOOM OPTION PARTS

-

400-00835B

PILOT PIPING

SC: D

-2шт.

1

420-00347

VALVE;PEDAL

desc: VANNE

1шт.

2

S5110603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

3

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

2шт.

6

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

7

S8000111

O-RING

desc: JOINT TORIQUE

11шт.

8

2181-1126D14

ADAPTER;S PFO-PF1/4

desc: RACCORD ADAPTATEUR

6шт.

9

2181-1702D4

ELBOW

desc: COUDE

3шт.

10

2420-9158

VALVE;SHUTTLE

SERIAL: 1001-1299

1шт.

10

2420-9158P

VALVE;SHUTTLE

SERIAL: 1300

1шт.

11

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

13

2184-1046D165

HOSE PF3/8-610L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1046D32

HOSE PF1/4-480L

desc: TUYAU FLEXIBLE

1шт.

15

DS2054215

HOSE PF3/8-310L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1045D148

HOSE PF1/4-1800L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1045D45

HOSE PF1/4-2240L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1046D121

HOSE PF1/4-2240L

desc: TUYAU FLEXIBLE

1шт.

19

2181-2281D13

TEE PF03/8-2PF3/8

desc: TE

2шт.

20

2181-1702D5

ELBOW PF3/8-PF3/8

desc: COUDE

1шт.

21

2181-1702D3

ELBOW PF1/4-PF3/8

desc: COUDE

1шт.

22

S5010613

WASHER;PLAIN

desc: RONDELLE

2шт.

23

S2211866

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

2шт.

24

2197-1818

BRACKET;PEDAL(L.H)

desc: SUPPORT

1шт.

25

2161-2257

RUBBER;PEDAL

desc: CAOUTCHOUC

1шт.

26

2184-1046D29

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

27

181-00144D21

ADAPTER;ORIFICE

desc: ADAPTEUR

1шт.
