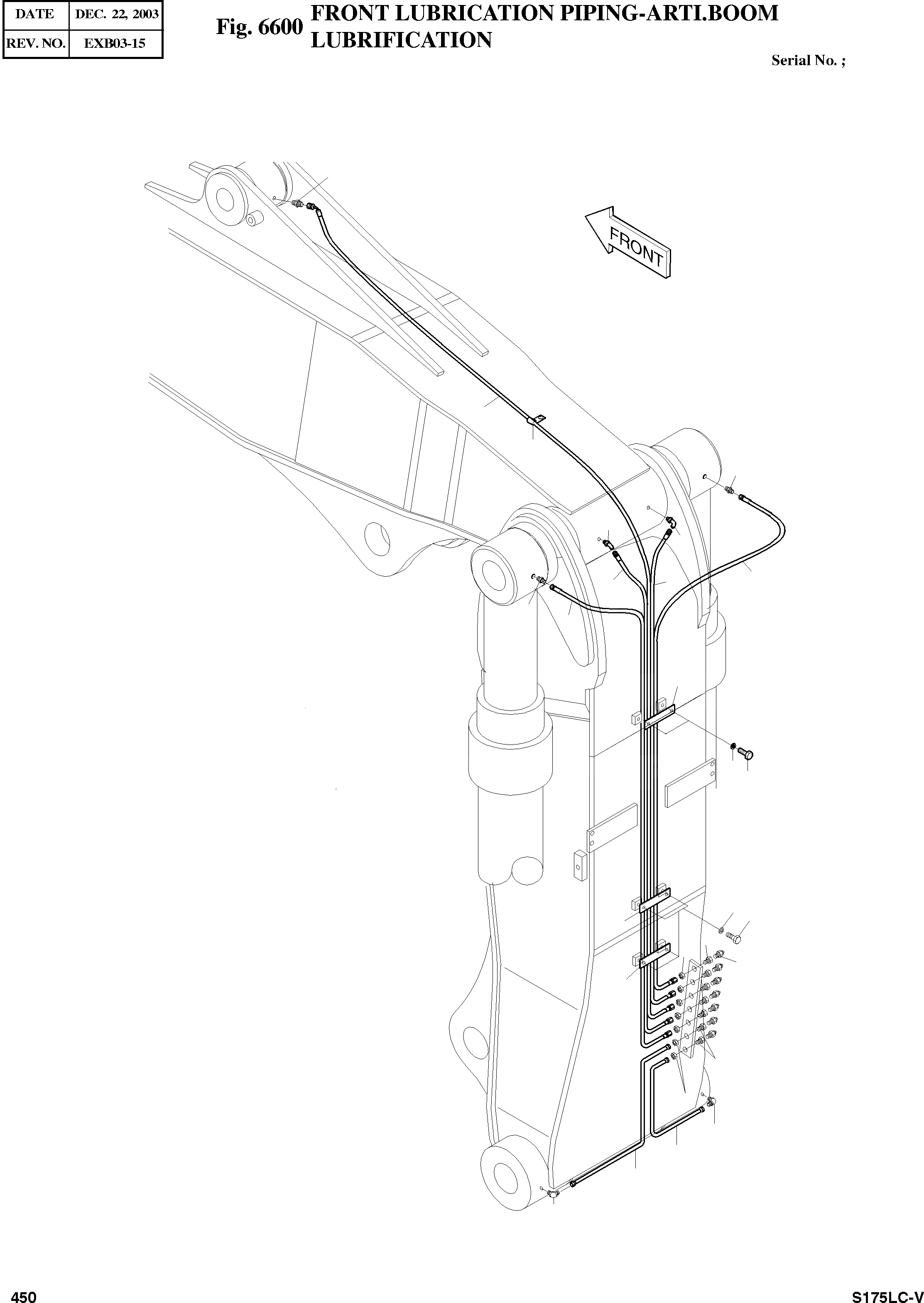

Запчасти Doosan Daewoo FRONT LUBRICATION PIPING-ARTI.BOOM OPTION PARTS

-

400-00623

FRONT PIPING

SC: D

-2шт.

1

2181-1925

ELBOW PT1/8-M14X1.5

desc: COUDE

2шт.

2

S6710041

NIPPLE;GREASE

desc: GRAISSEUR

7шт.

3

181-00103

REDUCER PT1/8-PF1/4

desc: REDUCTEUR

5шт.

4

121-00006

NUT PF1/4

desc: ECROU

5шт.

5

2184-1045D152

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1045D103

HOSE PF1/4-1950L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1046D78

HOSE PF1/4-3200L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1045D110

HOSE PF1/4-1850L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1045D123

HOSE PF1/4-1820L

desc: TUYAU FLEXIBLE

1шт.

10

S0511553

BOLT M10X1.5X14

desc: BOULON A 6 PANS

6шт.

11

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

12

124-00030

CLAMP;PIPE

desc: FIXATION DE TUYAU

3шт.

13

2181-1110D30

ADAPTER PF1/4-PT1/8

desc: RACCORD ADAPTATEUR

3шт.

14

2181-1186D12

ELBOW PF1/4-PT1/8

desc: COUDE

2шт.

15

2124-1353D2

CLIP

desc: ATTACHE

1шт.

16

140-00752

PIPE

desc: TUYAU

1шт.

17

140-00753A

PIPE

desc: TUYAU

1шт.

18

S4032833

NUT M14X1.5

desc: ECROU

2шт.

19

181-00525

REDUCER

desc: REDUCTEUR

2шт.
