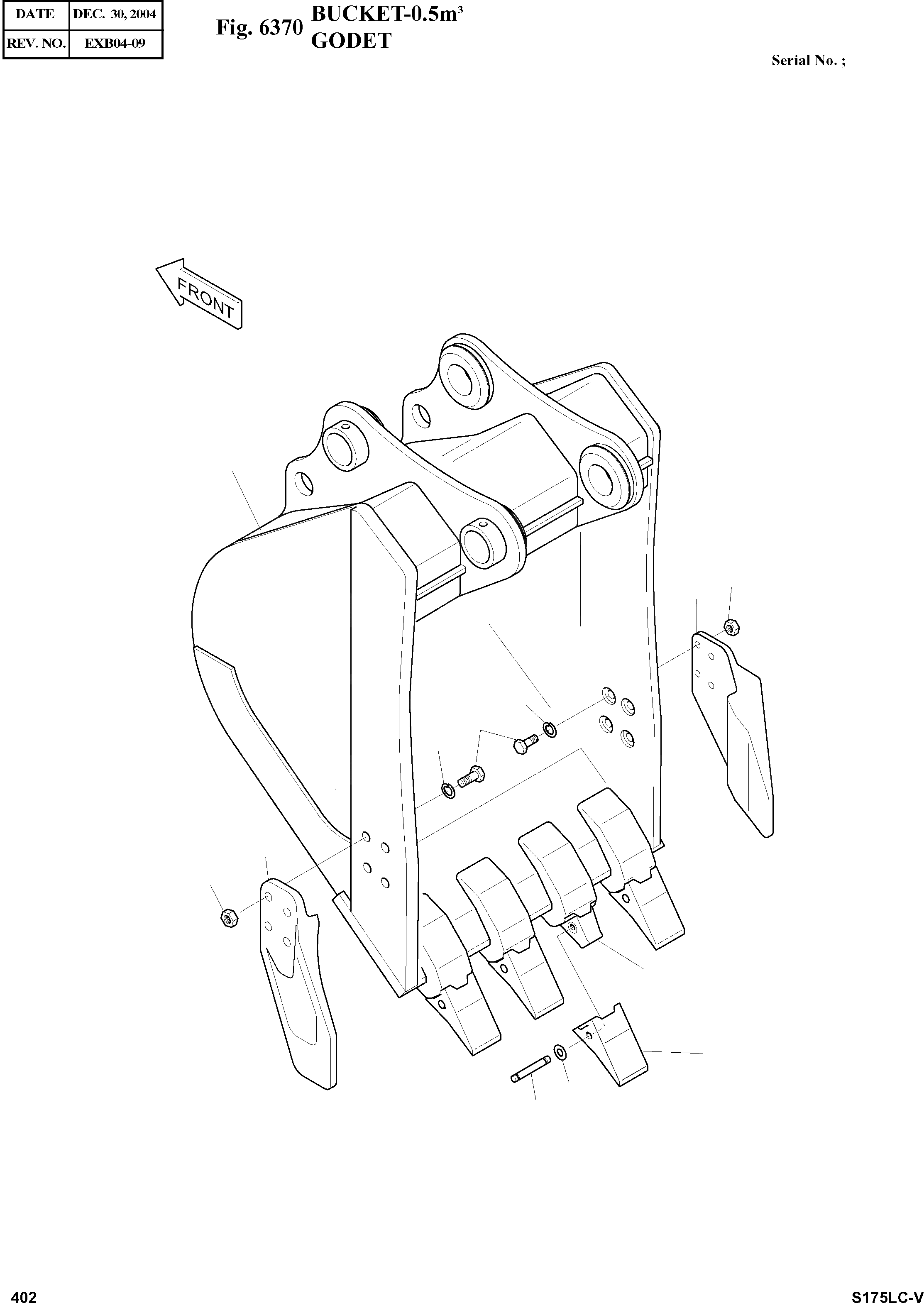

Запчасти Doosan Daewoo BUCKET-0.5§© OPTION PARTS

-

704-00083A

BUCKET ASS'Y-0.5§©

SERIAL: 1001-1130

1шт.

-

704-00083B

BUCKET ASS'Y-0.5§©

SERIAL: 1131

1шт.

1

-

BUCKET;WELD

SC: D

1шт.

1A

2713-1218

ADAPTER;TOOTH

desc: . RACCORD

4шт.

2

2713-1217

POINT;TOOTH

SERIAL: 1001-1130

4шт.

2

K1000344

POINT;TOOTH

SERIAL: 1131

4шт.

3

2705-1020

PIN;LOCKING

desc: BROCHE DE BLOCAGE

4шт.

4

2114-1848A

WASHER;LOCKING

desc: RONDELLE

4шт.

5

2713-1228A

CUTTER;SIDE(R)

desc: COIN DE GODET(RH)

1шт.

6

2713-1229A

CUTTER;SIDE(L)

desc: COIN DE GODET(LH)

1шт.

7

S0574661

BOLT M24X3.0X65

desc: BOULON A 6 PANS

8шт.

8

S4013333

NUT M24

desc: ECROU

8шт.

9

2114-1831

WASHER;HARDEN

desc: RONDELLE ELASTIQUE M20

8шт.
