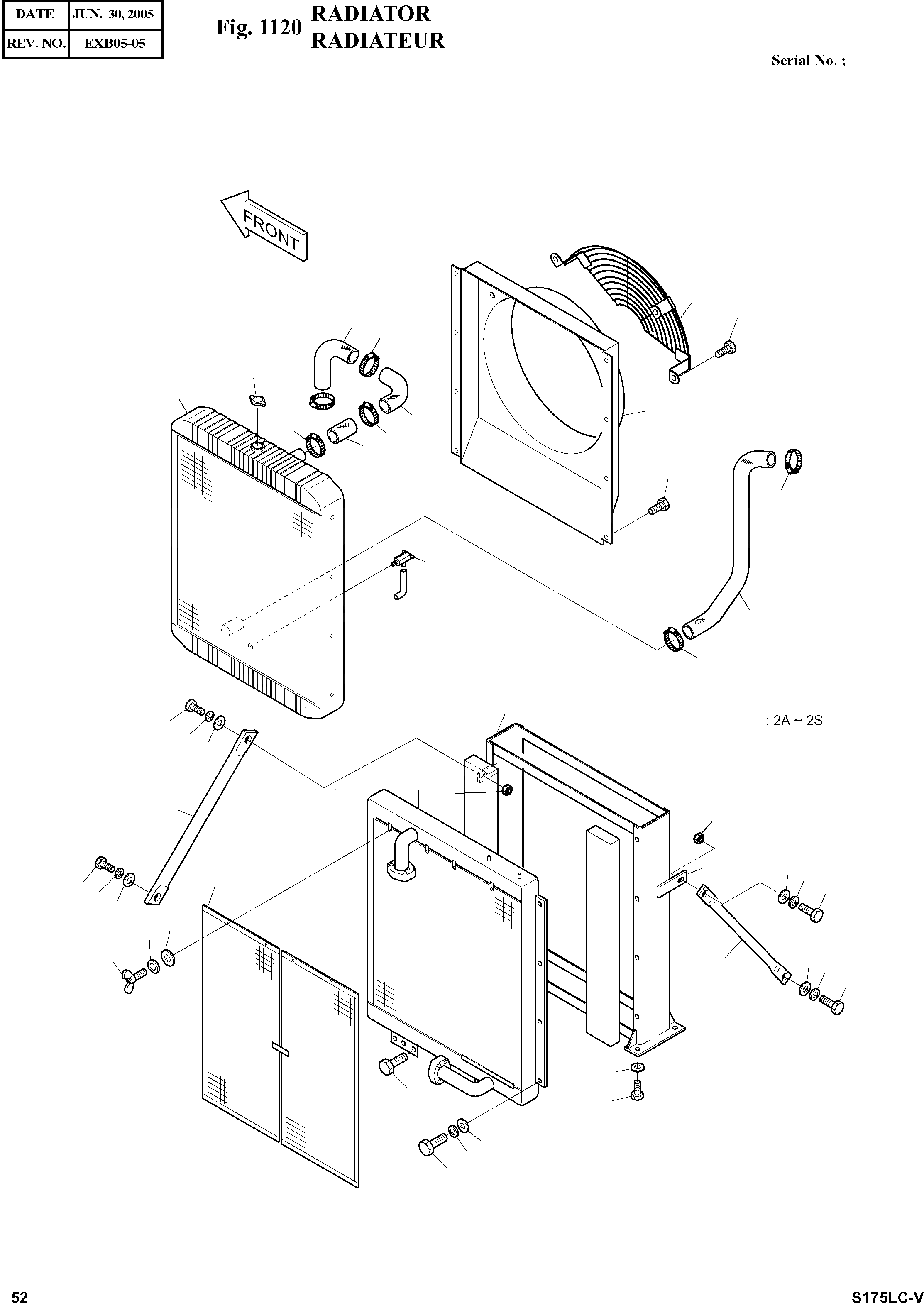

Запчасти Doosan Daewoo RADIATOR BODY PARTS

-

201-00134

ENGINE ASS'Y

SERIAL: 1001-1220

-2шт.

-

201-00134A

ENGINE ASS'Y

SERIAL: 1221

-2шт.

2

202-00012E

RADIATOR ASS'Y

desc: RADIATEUR

1шт.

2A

13C21000

RADIATOR

desc: . RADIATEUR

1шт.

2B

13E72000

COOLER;OIL

desc: . REFROIDISSEUR D'HUILE

1шт.

2C

13E73000

FRAME

desc: . BATI

1шт.

2D

13C24000A

SHROUD

desc: . ARITER

1шт.

2E

13C25000A

GUARD;FAN

desc: . ABRITER

1шт.

2F

13C26000

NET;WIRE

desc: . CABLE

2шт.

2G

13E77000

SUPPORT;SIDE

desc: . SUPPORT

2шт.

2H

P06

CAP

desc: . CHAPEAU

1шт.

2I

P04

COCK;DRAIN

desc: . ROBINET DE PURGE

1шт.

2J

P03

HOSE;DRAIN

desc: . TUYAU FLEXIBLE

1шт.

2K

P1106

BOLT;WING M6X1.0X15

desc: . BOULON D'AILE

4шт.

2L

P1306

WASHER;PLAIN M6

desc: . RONDELLE PLATE

4шт.

2M

P1406

WASHER;SPRING M6

desc: . RONDELLE ELASTIQUE

4шт.

2N

P1108

BOLT M8X1.25X25

desc: . BOULON A 6 PANS

11шт.

2O

P1110A

BOLT M10X1.25X20

desc: . BOULON A 6 PANS

18шт.

2P

P1110B

BOLT M10X1.25X25

desc: . BOULON A 6 PANS

8шт.

2Q

P22

SPONGE

desc: . EPONGE

4шт.

2R

P1310

WASHER;PLAIN M10

desc: . RONDELLE PLATE

8шт.

2S

P1410

WASHER;SPRING M10

desc: . RONDELLE ELASTIQUE

8шт.

3

S0565166

BOLT M16X2.0X45

desc: BOULON

4шт.

4

S5102903

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

4шт.

6

2623-1044C

STAY

desc: ENTRETOISE

2шт.

7

S0521356

BOLT M16X2.0X35

desc: BOULON

4шт.

15

2185-1316

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

16

S8470075

CLAMP;HOSE

desc: ATTACHE

6шт.

17

2182-1652

PIPE;WATER

desc: TUYAU

1шт.

18

2185-1680

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

19

2185-1651A

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

45

S5010913

WASHER M16

desc: RONDELLE

4шт.

46

S4012933

NUT M16X2.0

desc: ECROU

2шт.

54

2114-1816A

WASHER;HARD

desc: RONDELLE

4шт.
