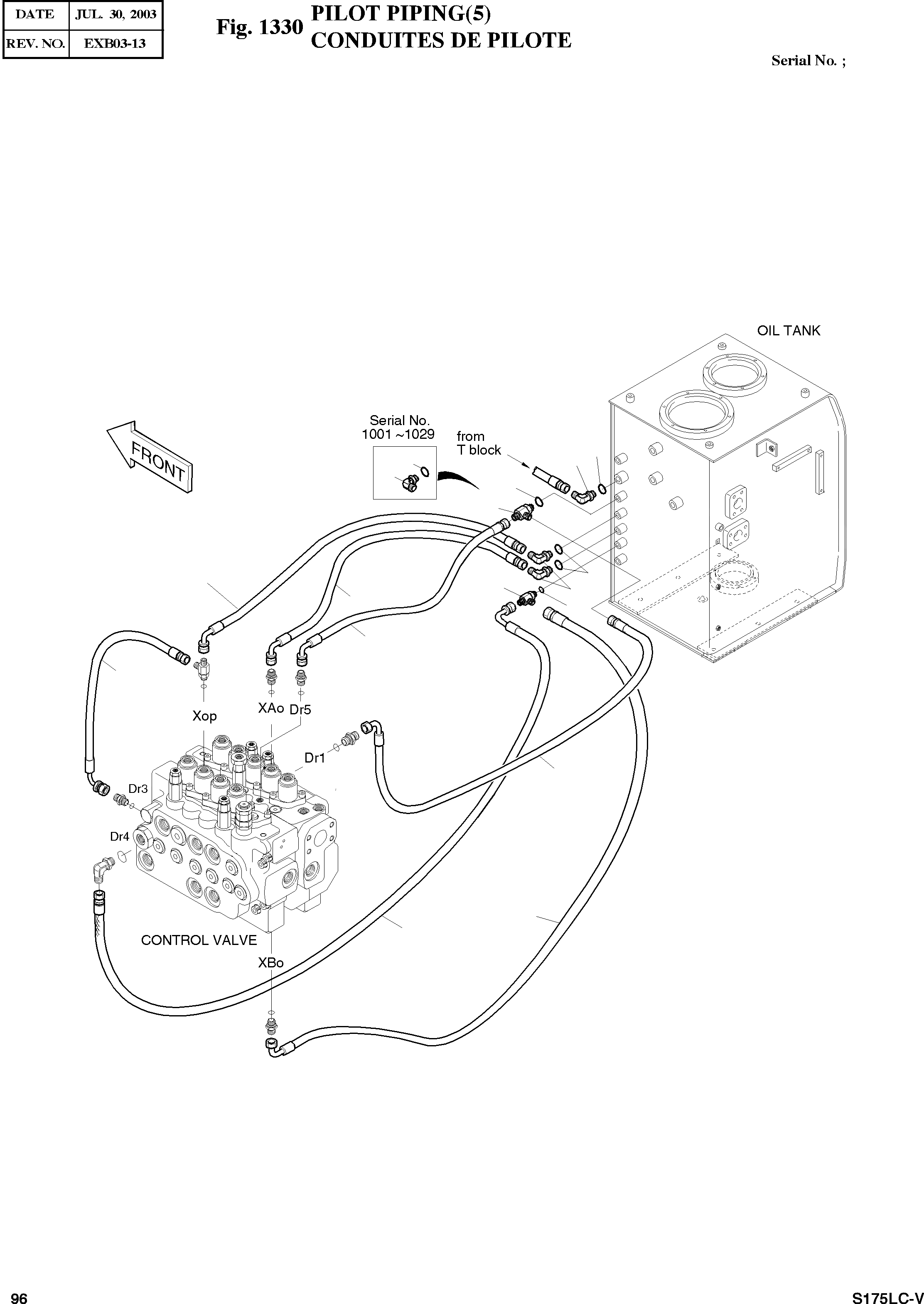

Запчасти Doosan Daewoo PILOT PIPING(5) BODY PARTS

-

400-01097

PILOT PIPING

SC: D

-2шт.

17

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

18

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

20

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

22

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

1шт.

24

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

27

2181-1702D5

ELBOW PFO3/8-PF3/8

SERIAL: 1001-1029

1шт.

28

2181-2375D11

TEE

SERIAL: 1030

1шт.

34

2184-1046D142

HOSE PF1/4-900L

SERIAL: 1030

1шт.

58

2184-1046D191

HOSE PF1/4-870L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1046D82

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1046D144

HOSE PF1/4-630L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1046D124

HOSE PF3/8-550L

desc: TUYAU FLEXIBLE

1шт.

63

2184-1046D69

HOSE PF1/4-580L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1046D198

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

86

2181-2419D3

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.
