Запчасти Doosan Daewoo MAIN PIPING-ARTI.BOOM OPTION PARTS

-

400-00834

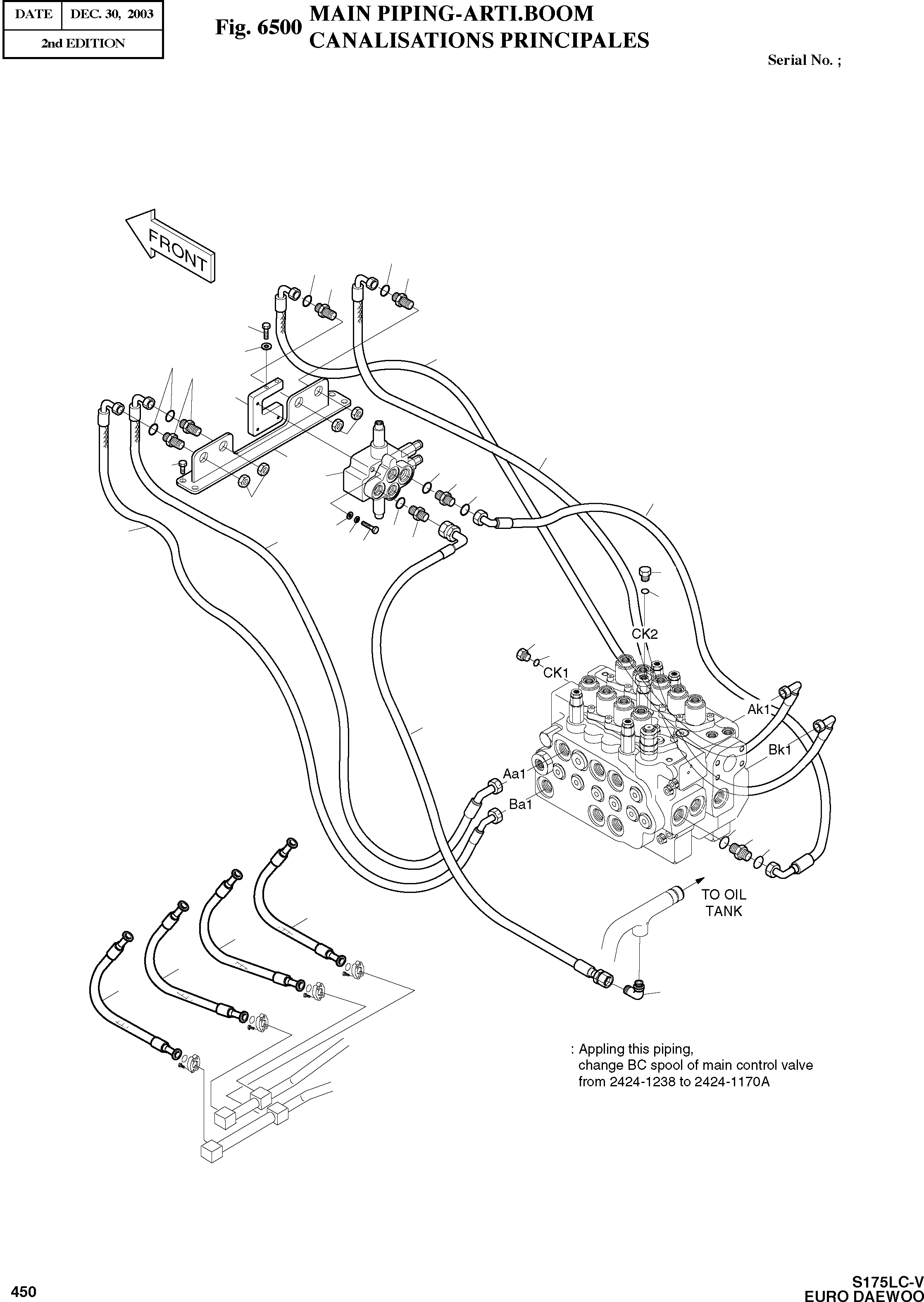

MAIN PIPING FOR ARTI. BOOM

SC: D

-2шт.

1

2420-9365

VALVE;CONTROL

desc: VANNE

1шт.

3

195-01958A

BRACKET

desc: SUPPORT

1шт.

5

2184-1229D1

HOSE PF3/4-900L

desc: TUYAU FLEXIBLE

2шт.

6

2184-1229D2

HOSE PF3/4-850L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1060D200

HOSE PF1-1100L

desc: TUYAU FLEXIBLE

1шт.

8

DS2021039

HOSE PF3/4-1450L

desc: TUYAU FLEXIBLE

1шт.

9

DS2023111

HOSE UNF1 3/16-1050L

desc: TUYAU FLEXIBLE

1шт.

10

DS2023112

HOSE UNF1 3/16-1100L

desc: TUYAU FLEXIBLE

1шт.

11

DS2023113

HOSE UNF1 3/16-1200L

desc: TUYAU FLEXIBLE

2шт.

12

DS2023114

HOSE UNF1 3/16-1250L

desc: TUYAU FLEXIBLE

2шт.

13

2424-1170A

SPOOL;BC

desc: TIROIR

1шт.

14

2181-1950D2

PLUG PFO1/2

desc: BOUCHON

2шт.

16

2181-2627D1

ADAPTER PFO3/4-UNF1 3/16

desc: RACCORD ADAPTATEUR

2шт.

17

2181-1126D25

ADAPTER PFO1-PF1

desc: RACCORD ADAPTATEUR

1шт.

18

2181-1702D11

ELBOW PFO1-PF1

desc: COUDE

1шт.

23

S8030121

O-RING

desc: JOINT TORIQUE

6шт.

24

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

25

S8000231

O-RING

desc: JOINT TORIQUE

2шт.

26

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

27

S0558453

BOLT M10X1.5X45

desc: BOULON A 6 PANS

2шт.

29

S0559253

BOLT M10X1.5X85

desc: BOULON A 6 PANS

3шт.

30

2120-2196D4

BOLT;SET M10X1.5X30

desc: BOULON A 6 PANS

4шт.

31

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

5шт.

32

S5010613

WASHER;PLAIN M10

desc: RONDELLE

3шт.

34

121-00010D8

NUT UNF1 3/16

desc: ECROU

4шт.

35

DS2415007

ADAPTER 2UNF1 3/16

desc: RACCORD ADAPTATEUR

4шт.

36

195-01959

BRACKET

desc: SUPPORT

1шт.
