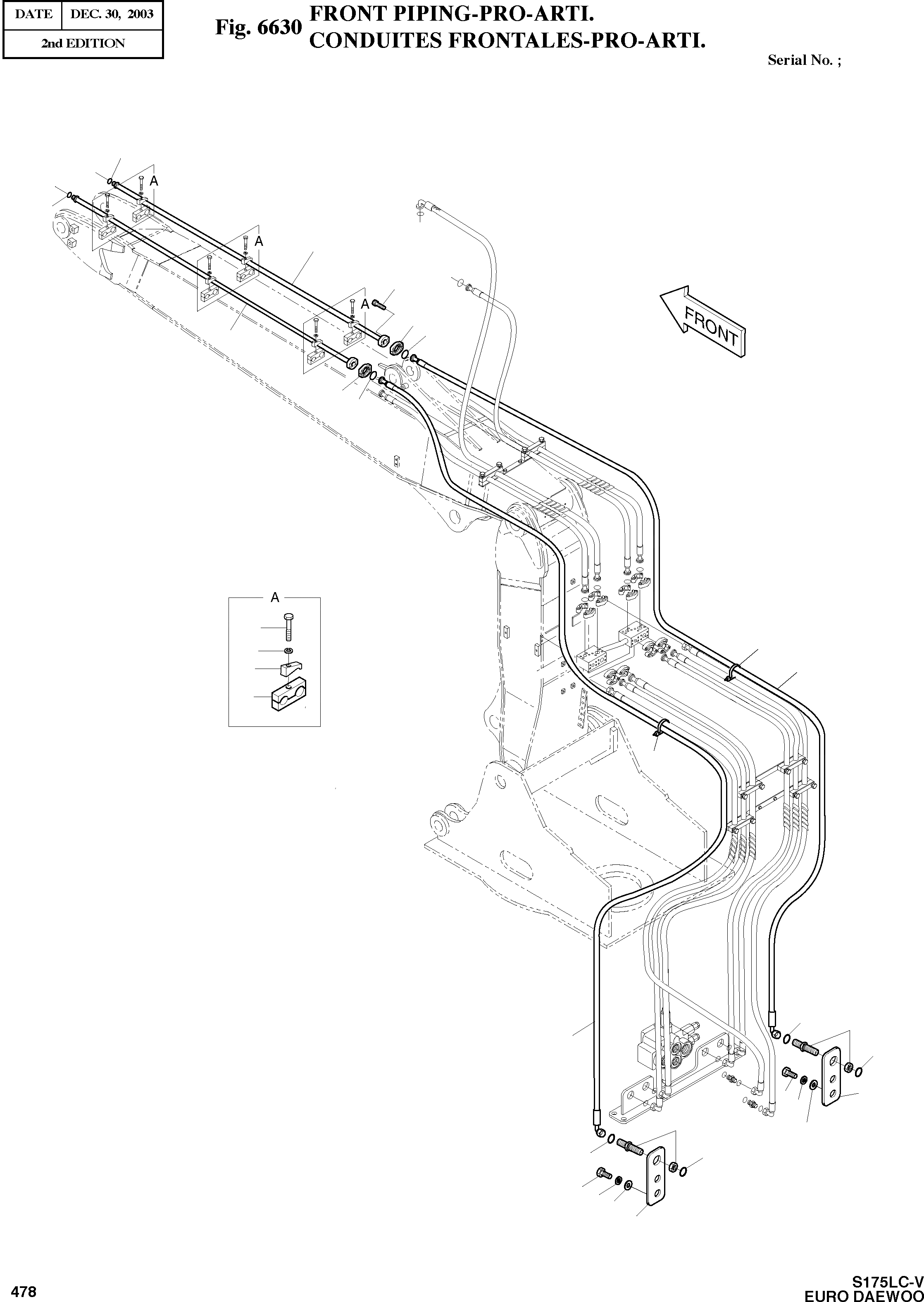

Запчасти Doosan Daewoo FRONT PIPING-PRO-ARTI OPTION PARTS

-

9400-1208

PRONT PIPING-PRO

SC: D

-2шт.

1

140-01198

PIPE;BOOM3

desc: TUYAU

2шт.

2

S8030081

O-RING

desc: JOINT TORIQUE

6шт.

3

9191-1104

PLATE

desc: PLAQUE

2шт.

4

9181-1078

BULKHEAD;UNION

desc: CLOISON ETANCHE

2шт.

5

9184-1067D2

HOSE ORFS1/2-5300L

desc: TUYAU FLEXIBLE

2шт.

6

2181-9089

FLANGE;SPLIT

desc: BRIDE

4шт.

7

2180-1023D30

O-RING

desc: JOINT TORIQUE

2шт.

8

124-00214

CLAMP;PIPE

desc: ATTACHE

6шт.

9

124-00212

CLAMP;PIPE

desc: ATTACHE

6шт.

10

S0566266

BOLT M16X2.0X100

desc: BOULON A 6 PANS

6шт.

11

S5102903

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

12

S0512353

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

13

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

14

S5010613

WASHER;PLAIN

desc: RONDELLE PLAQUE

4шт.

15

S2209366

BOLT;SOCKER M8X1.25X35

desc: BOULON A 6 PANS CREUX

8шт.

16

2124-1084D2

CLIP;BAND

desc: CLIP

25шт.
