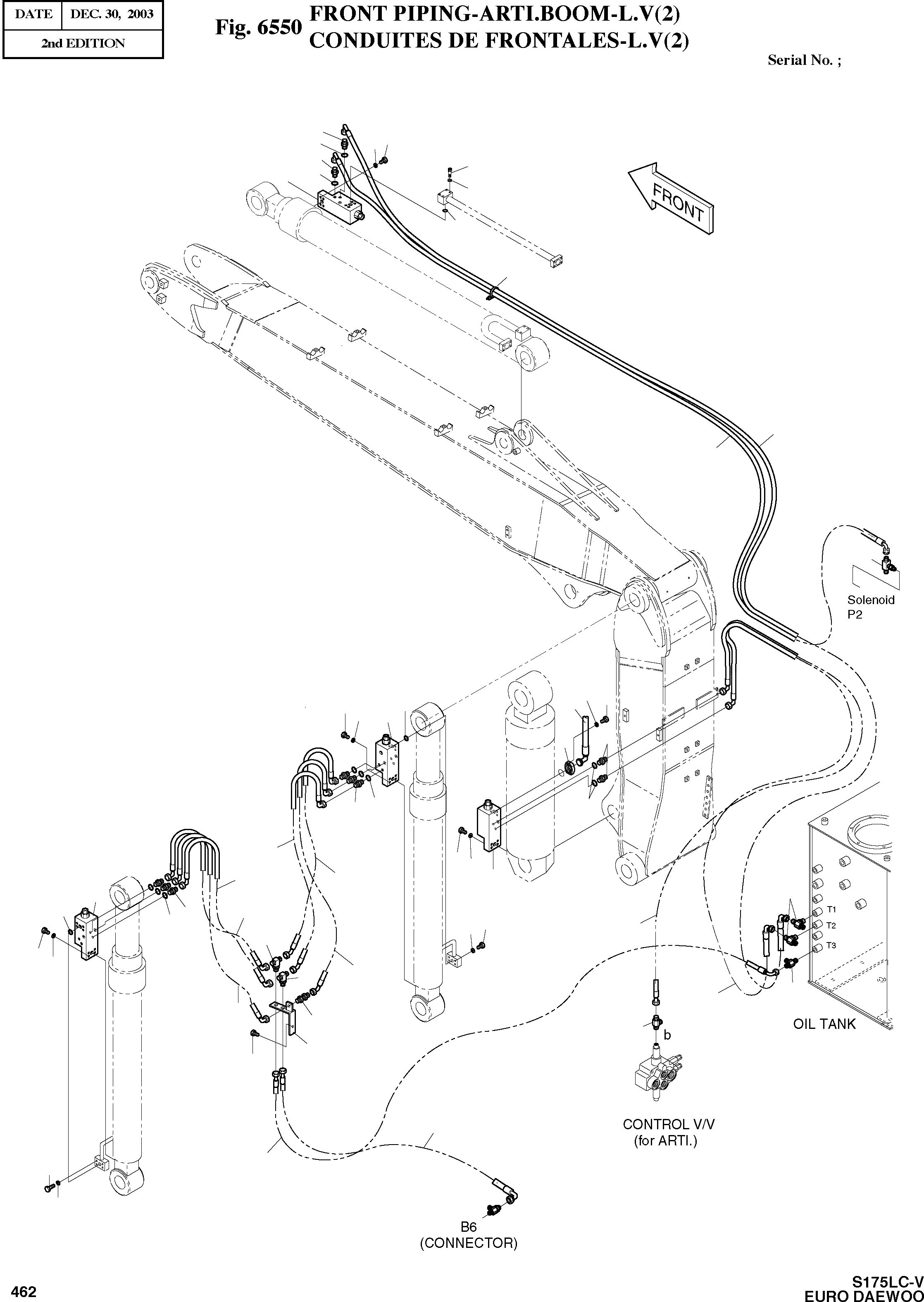

Запчасти Doosan Daewoo FRONT PIPING-ARTI.BOOM-L.V(2) OPTION PARTS

-

9400-1237

LOCK VALVE PIPING

SC: D

-2шт.

46

2184-1202D77

HOSE PF3/4-630L

desc: TUYAU FLEXIBLE

1шт.

47

420-00003A

VALVE;LOCK

desc: VERROU VANNE

4шт.

48

DS2058225

HOSE PF1/4-4300L

desc: TUYAU FLEXIBLE

1шт.

49

DS2058223

HOSE PF1/4-3500L

desc: TUYAU FLEXIBLE

1шт.

50

DS2059416

HOSE PF1/4-6600L

desc: TUYAU FLEXIBLE

1шт.

51

DS2058224

HOSE PF1/4-7100L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1046D284

HOSE PF3/8-1800L

desc: TUYAU FLEXIBLE

1шт.

53

DS2058221

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

2шт.

54

2184-1062D85

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

2шт.

55

2184-1076D147

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

2шт.

56

S2212366

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

57

S2212666

BOLT M10X1.5X50

desc: BOULON A 6 PANS

28шт.

58

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

1шт.

59

S5110613

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

32шт.

60

S8000111

O-RING

desc: JOINT TORIQUE

10шт.

61

S8000281

O-RING

desc: JOINT TORIQUE

3шт.

62

181-00020

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

63

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

10шт.

64

181-00008

TEE

desc: TE

1шт.

65

2181-1951D16

TEE

desc: TE

1шт.

66

2181-1951D1

TEE

desc: TE

1шт.

67

2181-2281D3

TEE

desc: TE

1шт.

68

2181-9080

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

2шт.

69

2181-2281D1

TEE

desc: TE

2шт.

70

2124-1084D2

CLIP;BAND

desc: ATTACHE

30шт.

71

197-00022

BRACKET

desc: SUPPORT

1шт.

72

2184-1046D220

HOSE

desc: TUYAU FLEXIBLE

1шт.

73

181-00807

TEE

desc: TE

1шт.
