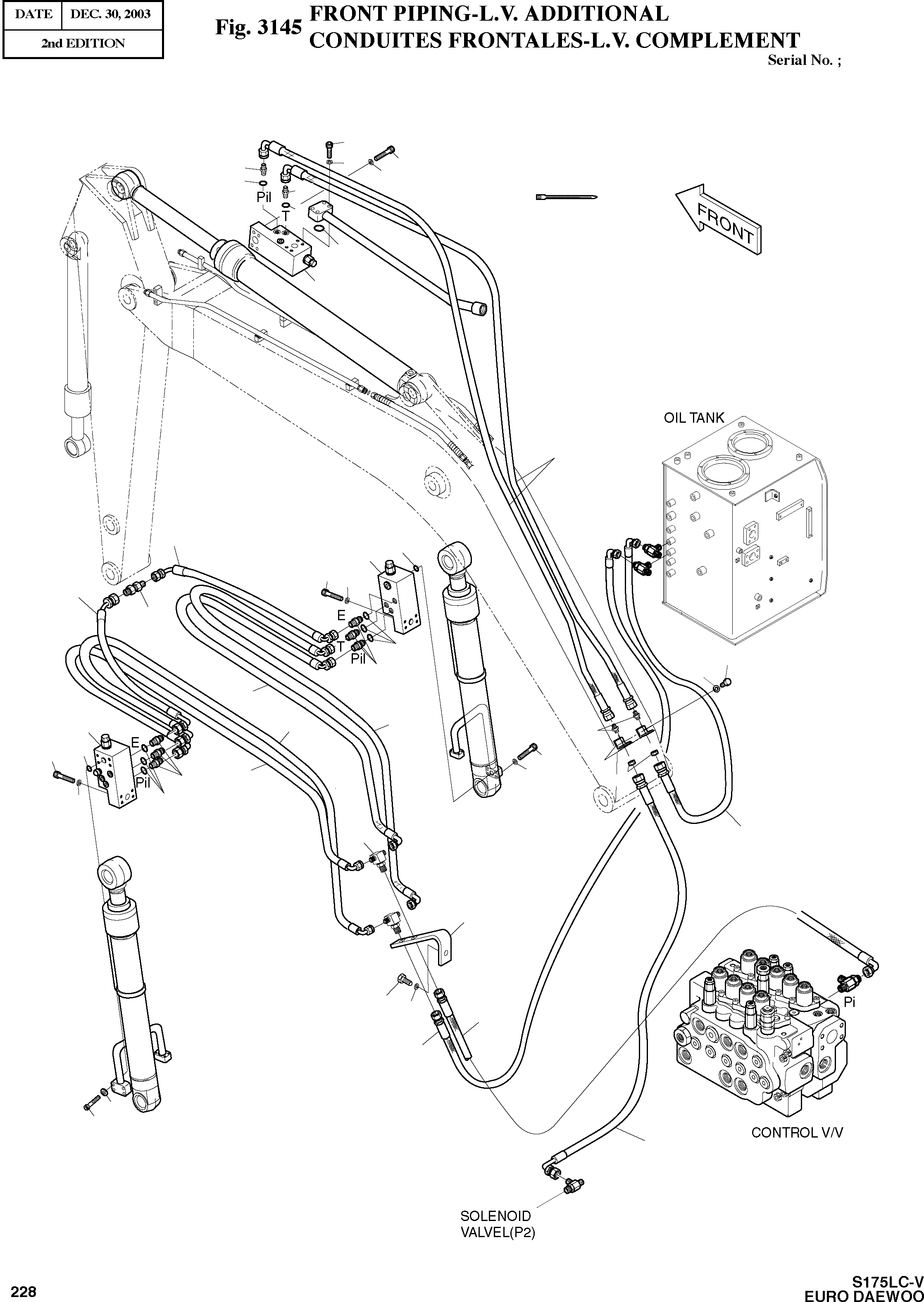

Запчасти Doosan Daewoo FRONT PIPING-L.V. ADDITIONAL FRONT PARTS

-

9400-1075

LOCK VALVE PIPING

SC: D

-2шт.

1

9420-6018A

VALVE;LOCK

desc: VERROU VANNE

3шт.

2

S2212666

BOLT;SOCKET M10X1.5X50

desc: BOULON DE PLOT

20шт.

3

S5110613

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

24шт.

4

S8000281

O-RING

desc: JOINT TORIQUE

3шт.

5

181-00078D5

ADAPTER PF1/4-PF3/8

desc: ADAPTEUR

2шт.

6

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

7

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

3шт.

8

197-00020

BRACKET

desc: SUPPORT

2шт.

9

181-00020

ADAPTER

desc: ADAPTEUR

1шт.

11

197-00022

SUPPORT

desc: SUPPORT

1шт.

12

2181-1126D14

ADAPTER PF1/4-PF1/4

desc: ADAPTEUR

8шт.

13

181-00008

TEE

desc: TE

2шт.

15

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

16

2124-1622D2

CLIP;BAND

desc: ATTACHE

25шт.

19

2184-1076D147

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

2шт.

20

2184-1062D84

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

2шт.

21

2184-1062D85

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

2шт.

22

2184-1046D260

HOSE PF1/4-4740L

desc: TUYAU FLEXIBLE

2шт.

23

2184-1046D275

HOSE PF3/8-1650L

desc: TUYAU FLEXIBLE

1шт.

24

2184-1060D145

HOSE PF3/8-1700L

desc: TUYAU FLEXIBLE

1шт.

25

2184-1046D295

HOSE PF3/8-1450L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1060D79

HOSE PF3/8-1450L

desc: TUYAU FLEXIBLE

1шт.

31

121-00010D1

NUT

desc: ECROU

2шт.

33

S2212866

BOLT;SOCKET M10X1.5X60

desc: BOULON A 6 PANS CREUX

4шт.
