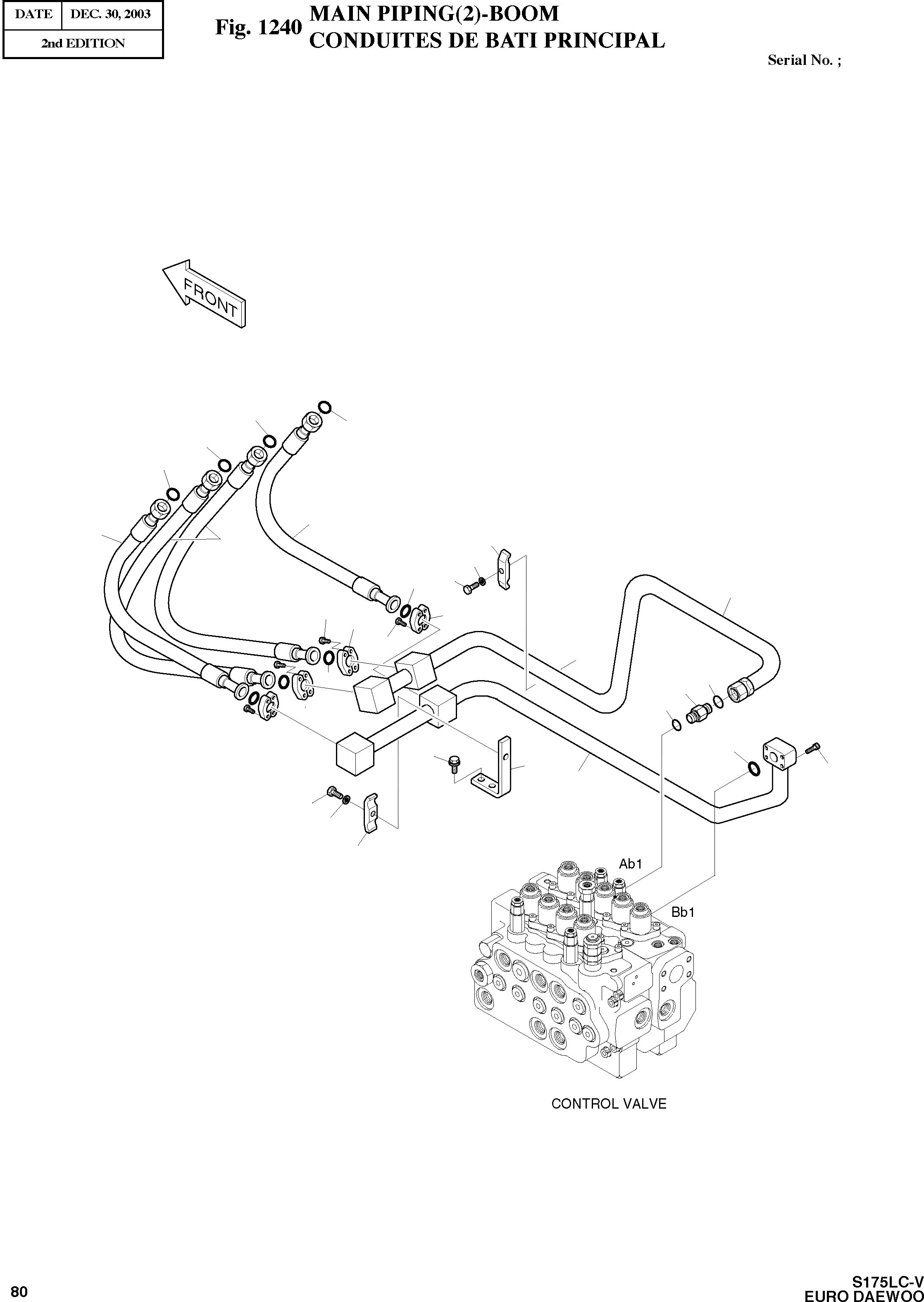

Запчасти Doosan Daewoo MAIN PIPING(2)-BOOM BODY PARTS

-

400-01208

MAIN PIPING

SC: D

-2шт.

2

140-00136A

PIPE

desc: TUYAU

1шт.

3

140-00137

PIPE

desc: TUYAU

1шт.

15

2184-1229D12

HOSE PF3/8-730L

desc: TUYAU FLEXIBLE

4шт.

17

2195-3657

BRACKET

desc: SUPPORT

1шт.

19

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

21

S0561053

BOLT M12X1.75X65

desc: BOULON

2шт.

22

2124-1025D6

CLAMP

desc: ATTACHE

2шт.

23

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

25

2181-9079

FLANGE;SPLIT

desc: BRIDE

8шт.

28

S2212066

BOLT;SOCKET M10X1.5X25

desc: BOULON DE PLOT

16шт.

29

S8030121

O-RING

desc: JOINT TORIQUE

5шт.

30

2180-1026D19

O-RING

desc: JOINT TORIQUE

1шт.

31

S2212766

BOLT;SOCKET M10X1.5X55

desc: BOULON DE PLOT

4шт.

38

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

39

2181-2627D1

ADAPTER PF3/4-UNF3/4

desc: ADAPTEUR

1шт.

53

2120-2196D11

BOLT;SET

desc: BOULON

2шт.
