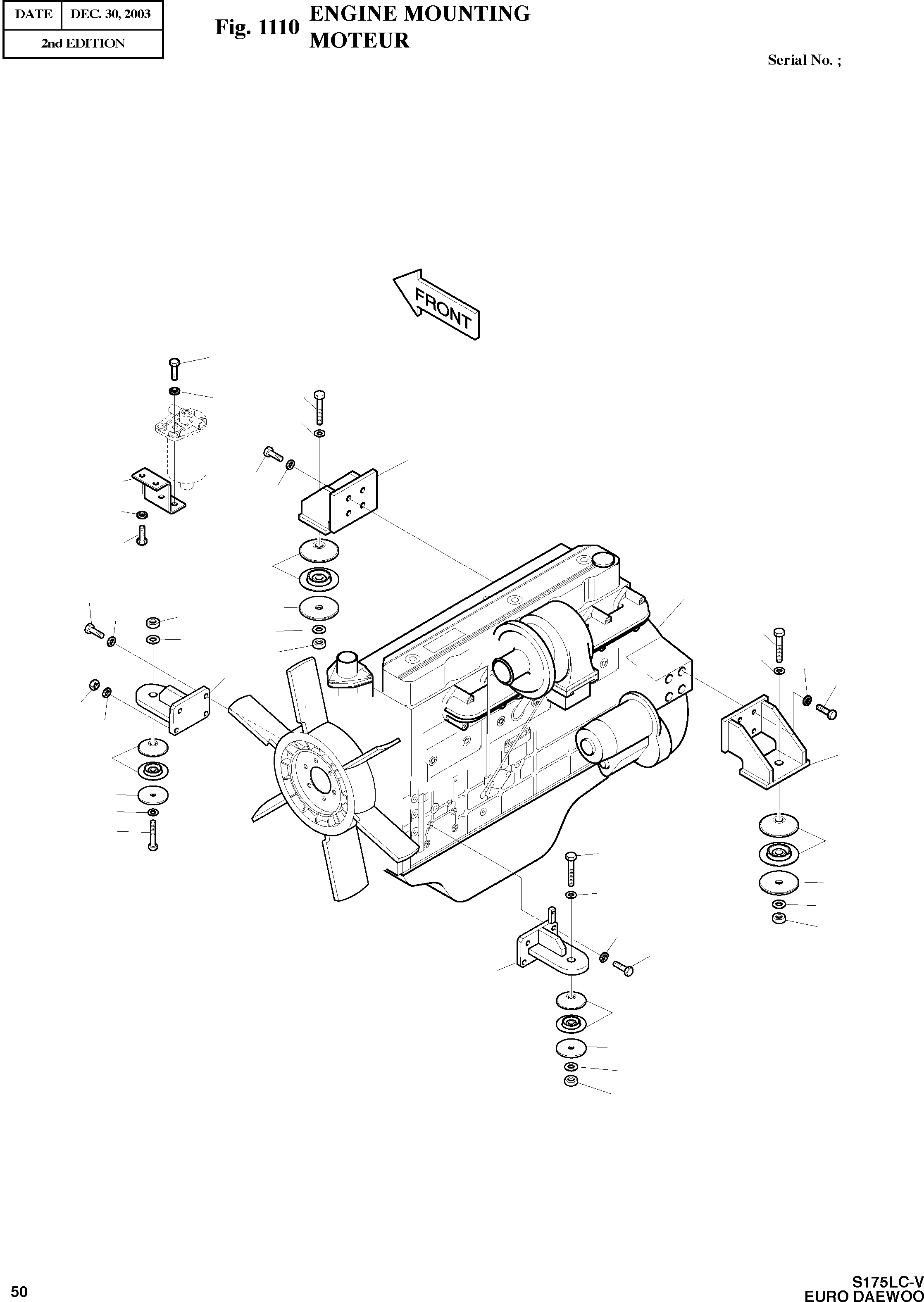

Запчасти Doosan Daewoo ENGINE MOUNTING BODY PARTS

-

201-00134

ENGINE ASS'Y

SC: D

-2шт.

1

201-00136

ENGINE-DB58TIS

desc: MOTEUR

1шт.

11

S5101003

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

8шт.

29

195-01924

BRACKET

desc: SUPPORT

1шт.

30

195-02429

BRACKET

desc: SUPPORT

1шт.

31

S0786253

BOLT M12X1.5X30

desc: BOULON

8шт.

32

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

34

2161-9066

RUBBER;ENGINE MOUNTING

desc: CAOUTCHOUC

4шт.

35

S0512053

BOLT M10X1.5X25

desc: BOULON

2шт.

36

2114-1929

WASHER;BUMP

desc: RONDELLE

4шт.

37

S0771466

BOLT M20X1.5X130

desc: BOULON

4шт.

38

121-00066

NUT;LOCK M20X1.5

desc: ECROU

4шт.

39

195-02169

BRACKET

desc: SUPPORT

1шт.

40

195-01927

BRACKET

desc: SUPPORT

1шт.

41

S0712253

BOLT M10X1.25X30

desc: BOULON

7шт.

42

S5010613

WASHER M10

desc: RONDELLE

4шт.

47

2891-1373

PLATE

desc: PLAQUE

1шт.

48

S4032633

NUT M10X1.25

desc: ECROU

1шт.

49

S0558253

BOLT M10X1.5X35

desc: BOULON

2шт.

52

2114-9012A

WASHER;HARD

desc: RONDELLE

8шт.

53

4161-9067

RUBBER;ENGINE MOUNTING

desc: CAOUTCHOUC

4шт.
