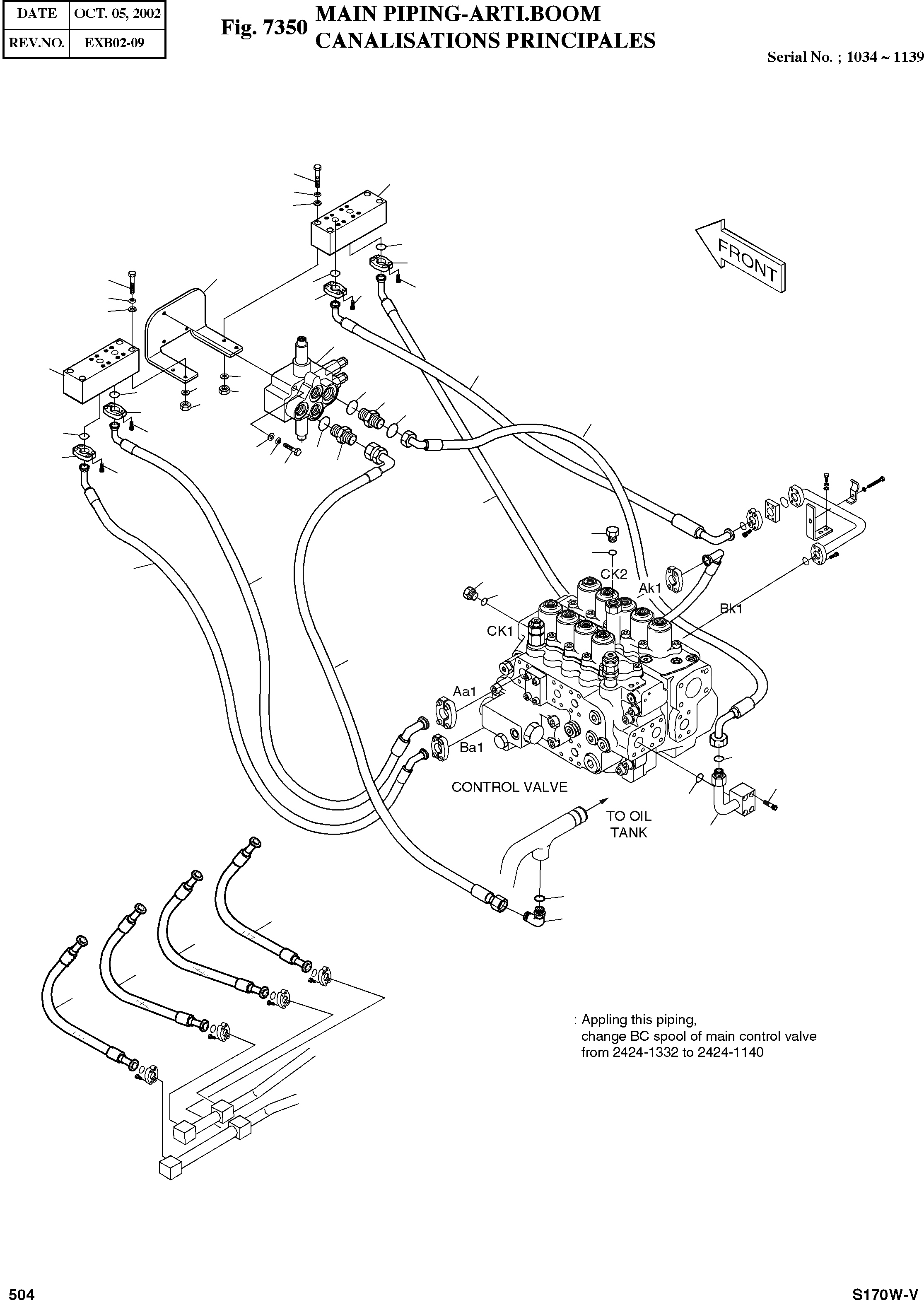

Запчасти Doosan Daewoo MAIN PIPING-ARTI.BOOM OPTION PARTS-FRONT

-

400-00620

MAIN PIPING FOR ARTI. BOOM

SERIAL: 1034-1139

-2шт.

1

2420-9365

VALVE;CONTROL

desc: VANNE

1шт.

2

423-00089

BLOCK

desc: BLOC

2шт.

3

195-01343

BRACKET

desc: SUPPORT

1шт.

4

2183-3834

PIPE

desc: TUYAU

1шт.

5

2184-1229D1

HOSE PF3/4-900L

desc: TUYAU FLEXIBLE

2шт.

6

2184-1229D2

HOSE PF3/4-850L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1036D112

HOSE PF1-1200L

desc: TUYAU FLEXIBLE

1шт.

8

DS2021031

HOSE PF3/4-1450L

desc: TUYAU FLEXIBLE

1шт.

9

DS2043050

HOSE PF1-PF3/4-700L

desc: TUYAU FLEXIBLE

1шт.

10

DS2045249

HOSE PF1-PF3/4-700L

desc: TUYAU FLEXIBLE

1шт.

11

DS2026072

HOSE PF3/4-600L

desc: TUYAU FLEXIBLE

1шт.

12

DS2043051

HOSE PF1-PF3/4-950L

desc: TUYAU FLEXIBLE

1шт.

13

2424-1140

SPOOL;BC

desc: TIROIR

1шт.

14

2181-1950D7

PLUG PFO1/2

desc: BOUCHON

2шт.

16

2181-2627D1

ADAPTER PFO3/4-UNF1 3/16

desc: RACCORD ADAPTATEUR

1шт.

17

2181-1126D25

ADAPTER PFO1-PF1

desc: RACCORD ADAPTATEUR

1шт.

18

2181-1702D11

ELBOW PFO1-PF1

desc: COUDE

1шт.

19

2181-9079

FLANGE

desc: FLASQUE EN DEUX PARTIES

8шт.

21

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

22

2180-1026D19

O-RING

desc: JOINT TORIQUE

1шт.

23

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

24

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

25

S8000231

O-RING

desc: JOINT TORIQUE

2шт.

26

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

27

S2212766

BOLT;SOCKET M10X1.5X55

desc: BOULON A 6 PANS CREUX

4шт.

28

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

16шт.

29

S0559253

BOLT M10X1.5X85

desc: BOULON A 6 PANS

3шт.

30

S0559753

BOLT M10X1.5X110

desc: BOULON A 6 PANS

8шт.

31

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

11шт.

32

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

3шт.

33

2114-1058D10

WASHER

desc: RONDELLE

12шт.

34

S4012633

NUT M10X1.5

desc: ECROU

4шт.
