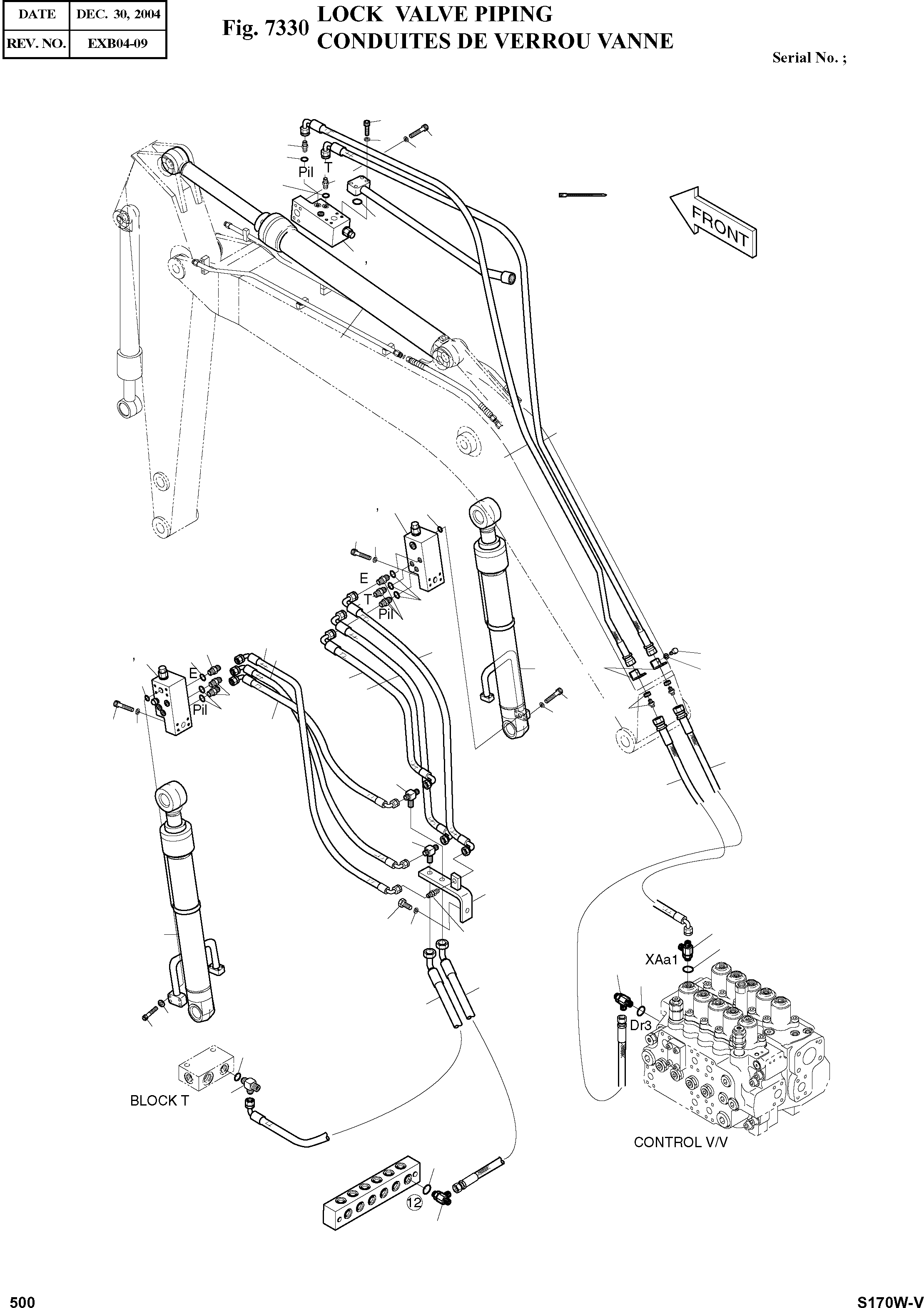

Запчасти Doosan Daewoo LOCK VALVE PIPING OPTION PARTS-FRONT

-

400-00191

LOCK VALVE PIPING

SC: D

-2шт.

1

440-00090

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECH

1шт.

2

440-00091

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECH

1шт.

3

440-00092

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

4

420-00003A

VALVE;LOCK

desc: VANNE

3шт.

4A

K9000998

SEAL KIT

desc: . KIT DE JOINT

1шт.

6

2184-1062D59

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

4шт.

7

2184-1076D118

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

2шт.

9

2184-1060D217

HOSE PF3/8-1150L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1062D78

HOSE PF3/8-1500L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1046D260

HOSE PF1/4-4740L

SERIAL: 1001-1051

1шт.

11

2184-1046D261

HOSE PF1/4-4800L

SERIAL: 1052

1шт.

12

2184-1046D254

HOSE PF1/4-4600L

SERIAL: 1001-1051

1шт.

12

2184-1046D260

HOSE PF1/4-4740L

SERIAL: 1052

1шт.

13

2184-1046D116

HOSE PF3/8-2000L

SERIAL: 1001-1099

1шт.

13

2184-1046D284

HOSE PF3/8-1800L

SERIAL: 1100

1шт.

14

2184-1045D215

HOSE PF3/8-2100L

SERIAL: 1001-1099

1шт.

14

2184-1045D206

HOSE PF3/8-2000L

SERIAL: 1100

1шт.

15

S2212661

BOLT;SOCKET M10X1.5X50

SERIAL: 1001-1066

16шт.

15

S2212666

BOLT;SOCKET M10X1.5X50

SERIAL: 1067

16шт.

16

S5110611

WASHER;SPRING M10

SERIAL: 1001-1066

16шт.

16

S5110613

WASHER;SPRING M10

SERIAL: 1067

16шт.

17

S2215761

BOLT;SOCKET M12X1.75X55

SERIAL: 1001-1066

4шт.

17

S2215766

BOLT;SOCKET M12X1.75X55

SERIAL: 1067

4шт.

18

S2215861

BOLT;SOCKET M12X1.75X60

SERIAL: 1001-1066

4шт.

18

S2215866

BOLT;SOCKET M12X1.75X60

SERIAL: 1067

4шт.

19

S5110701

WASHER;SPRING M12

SERIAL: 1001-1066

8шт.

19

S5110703

WASHER;SPRING M12

SERIAL: 1067

8шт.

20

S8000281

O-RING

desc: JOINT TORIQUE

2шт.

21

S8000341

O-RING

desc: JOINT TORIQUE

1шт.

22

195-00294

BRACKET

desc: SUPPORT

1шт.

23

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

1шт.

24

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

25

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

3шт.

26

197-00020

BRACKET

desc: SUPPORT

2шт.

27

181-00020

ADAPTER 2PF1/4

desc: RACCORD ADAPTATEUR

1шт.

28

181-00008

TEE PF3/8X2PF1/4

desc: TE

2шт.

29

181-00007

ADAPTER PF1/4XPF3/8

desc: RACCORD ADAPTATEUR

2шт.

30

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

8шт.

31

S8000111

O-RING

desc: JOINT TORIQUE

9шт.

32

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

33

2181-1951D14

TEE PFO1/4XPF1/4XPF3/8

desc: TE

1шт.

34

2181-1951D16

TEE PFO3/8X2PF3/8

desc: TE

2шт.

35

2181-1951D11

TEE PFO3/8XPF3/8XPF1/4

desc: TE

1шт.

36

2124-1084D2

CLIP;BAND

desc: ATTACHE

30шт.
