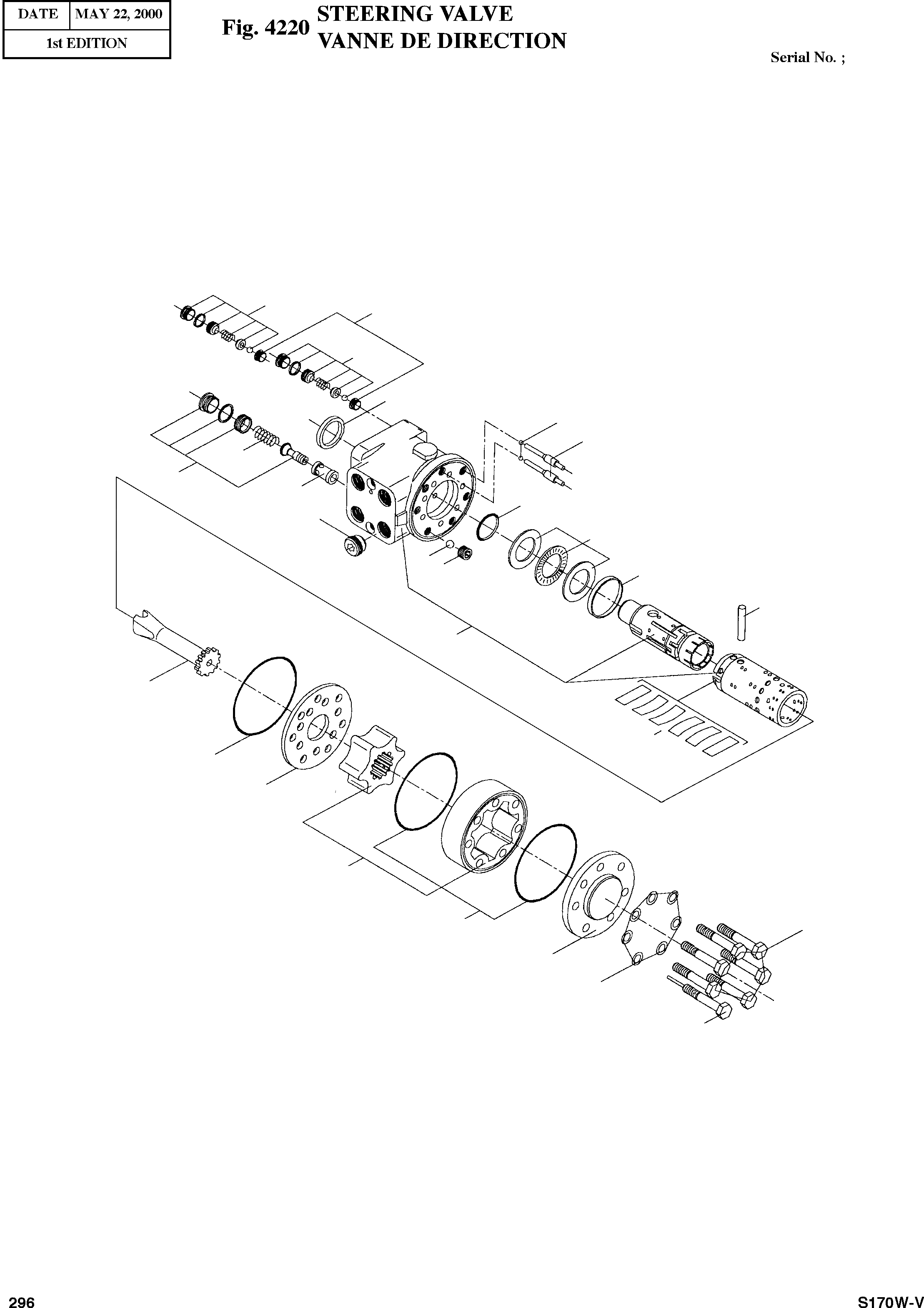

Запчасти Doosan Daewoo STEERING VALVE HYDRAULIC PARTS

-

422-00021A

VALVE;STEER

desc: VANNE

1шт.

1

633B9002

RING;DUST SEAL

desc: BAGUE D'ETANCHEITE

1шт.

2

-

HOUSING & SPOOL

SC: D

1шт.

3

689X1031

BALL 8.5

desc: BILLE

1шт.

4

150-0304

BUSHING;THREAD

desc: MANCHON

1шт.

5

150N4014

O-RING

desc: JOINT TORIQUE

1шт.

7

150-4262

BEARING ASS'Y

desc: PALIER

1шт.

8

150-0310

RING

desc: BAGUE

1шт.

9

150-0305

PIN;CROSS

desc: BROCHE

1шт.

11

150-0844

SHAFT;CARDAN

desc: TOURNEVIS EN CROIX

1шт.

12

150N4035

SPRING;SET

desc: RESSORT

1шт.

13

633B1202

O-RING

desc: JOINT TORIQUE

1шт.

14

150N0610

PLATE;DISTRIBUTOR

desc: PLAQUE

1шт.

15

150-4188

GEARWHEEL;SET

desc: PIGNON

1шт.

16

633B1173

O-RING

desc: JOINT TORIQUE

2шт.

17

150-0328

COVER;END

desc: COUVERCLE

1шт.

18

684X2481

WASHER

desc: RONDELLE

7шт.

20

150-0325

SCREW(WITH PIN)

desc: VIS

1шт.

21

681X1582

SCREW

desc: VIS

6шт.

24

150-4270

VALVE;PRESSURE RELIEF

desc: VANNE

1шт.

25

663X1802

SPRING;WIRE 2.1

desc: RESSORT

1шт.

26

150-4268

VALVE;SHOCK(WITHOUT SEAT)

desc: VANNE

2шт.

27

689X1005

BALL 3/16Ў±

desc: BILLE

2шт.

29

150-4080

BUSHING(WITH PIN)

desc: BROCHE

2шт.

32

150N4092

VALVE;CHECK

desc: VANNE

1шт.

*

150N4038

SPARE PART BAG

desc: KIT DE REPARATION

1шт.
