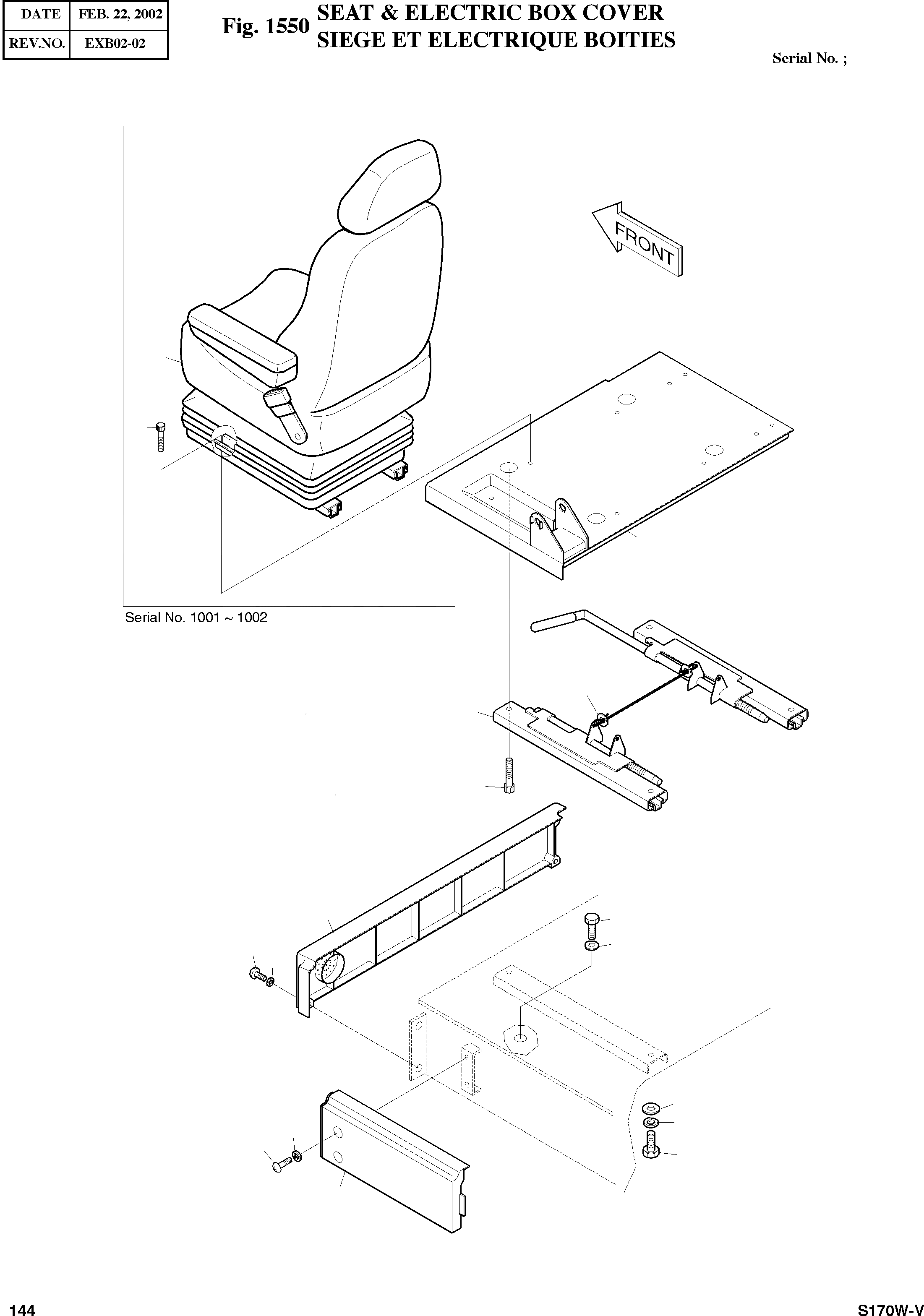

Запчасти Doosan Daewoo SEAT & ELECTRIC BOX COVER BODY PARTS

-

2197-1825F1H

CONTROL STAND ASS'Y

SERIAL: 1001-1122

-2шт.

-

2197-1825F1K

CONTROL STAND ASS'Y

SERIAL: 1123

-2шт.

2

2194-9005B

RAIL;SEAT

SERIAL: 1001-1002

1шт.

2

2194-9005C

RAIL;SEAT

SERIAL: 1003

1шт.

3

2901-9034

SEAT

SERIAL: 1001-1002

1шт.

4

2901-1078C

PLATE;SEAT ASS'Y

SERIAL: 1001-1002

1шт.

4

2901-1078E

PLATE;SEAT ASS'Y

SERIAL: 1003

1шт.

21

2621-3743

COVER;BOX(FRONT)

desc: COUVERCLE

1шт.

22

2120-2166D7

SCREW M6X1.0X14

desc: VIS

6шт.

23

2114-1898D3

WASHER;PLAIN M6

desc: RONDELLE

6шт.

24

2621-3870

COVER;BOX(L.H.)

desc: COUVERCLE

1шт.

28

S0514853

BOLT M12X1.75X20

desc: BOULON A 6 PANS

4шт.

32

2120-2166D5

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

34

S5020513

WASHER;PLAIN M8

desc: RONDELLE PLATE

4шт.

37

2114-1898D4

WASHER;PLAIN M5

desc: RONDELLE

2шт.

39

S2208761

BOLT;SOCKET M8X1.25X18

SERIAL: 1001-1002

8шт.

39

S2208761

BOLT;SOCKET M8X1.25X18

SERIAL: 1003

4шт.

47

2114-1058D46

WASHER M12

desc: RONDELLE

4шт.
