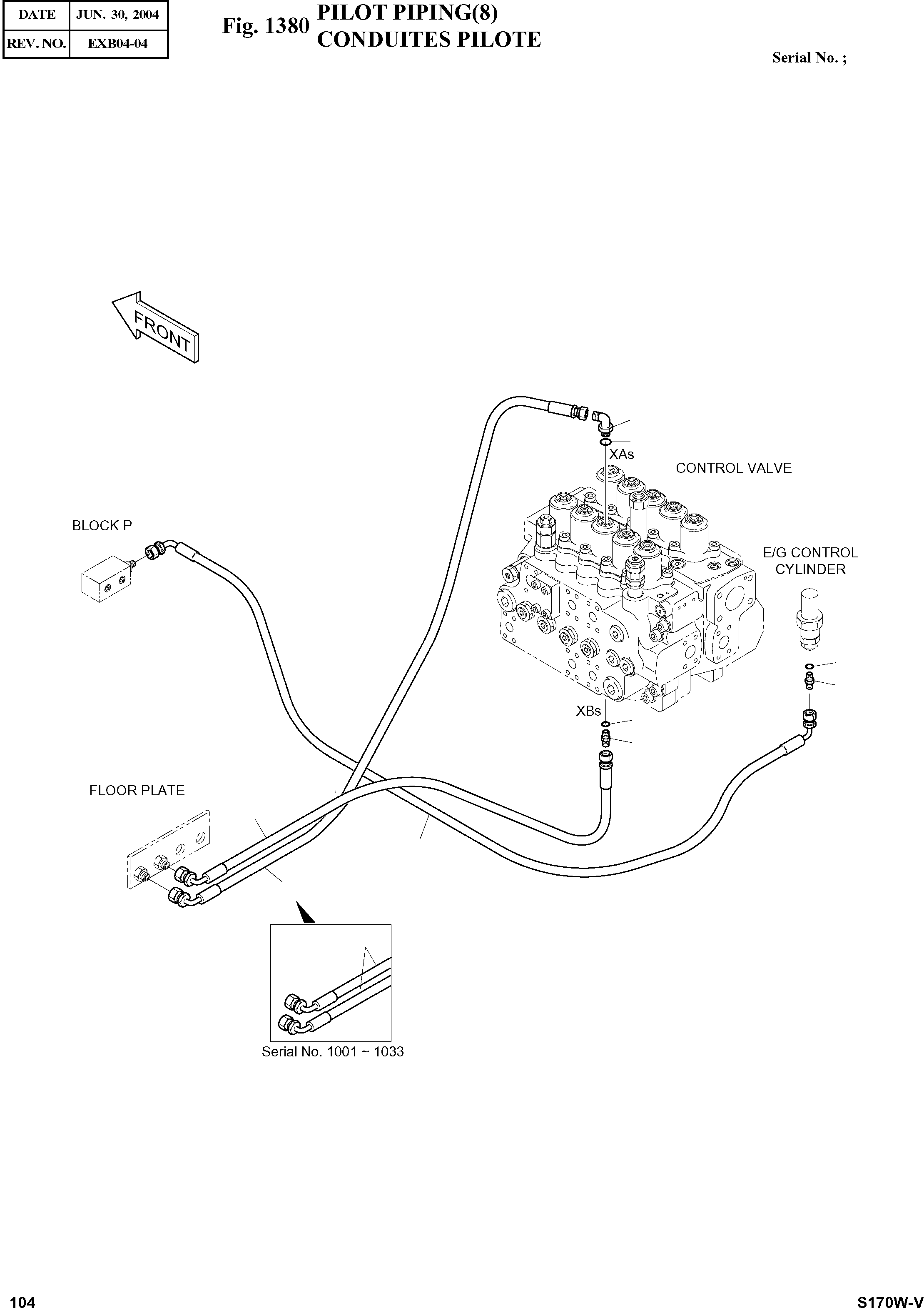

Запчасти Doosan Daewoo PILOT PIPING(8) BODY PARTS

-

400-00014A

PILOT PIPING

SERIAL: 1001-1216

-2шт.

-

400-00014B

PILOT PIPING

SERIAL: 1217-1218

-2шт.

-

400-00014C

PILOT PIPING

SERIAL: 1219

-2шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

12

2181-1702D5

ELBOW PFO3/8XPF3/8

desc: COUDE

1шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

1шт.

14

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

1шт.

25

2181-1126D36

ADAPTER PFO3/8XPF1/4

desc: RACCORD ADAPTATEUR

1шт.

89

2184-1046D73

HOSE PF1/4-1900L

SERIAL: 1034

1шт.

102

2184-1062D29

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

114

2184-1046D221

HOSE PF1/4-2050L

SERIAL: 1001-1033

2шт.

114

2184-1046D221

HOSE PF1/4-2050L

SERIAL: 1034

1шт.
