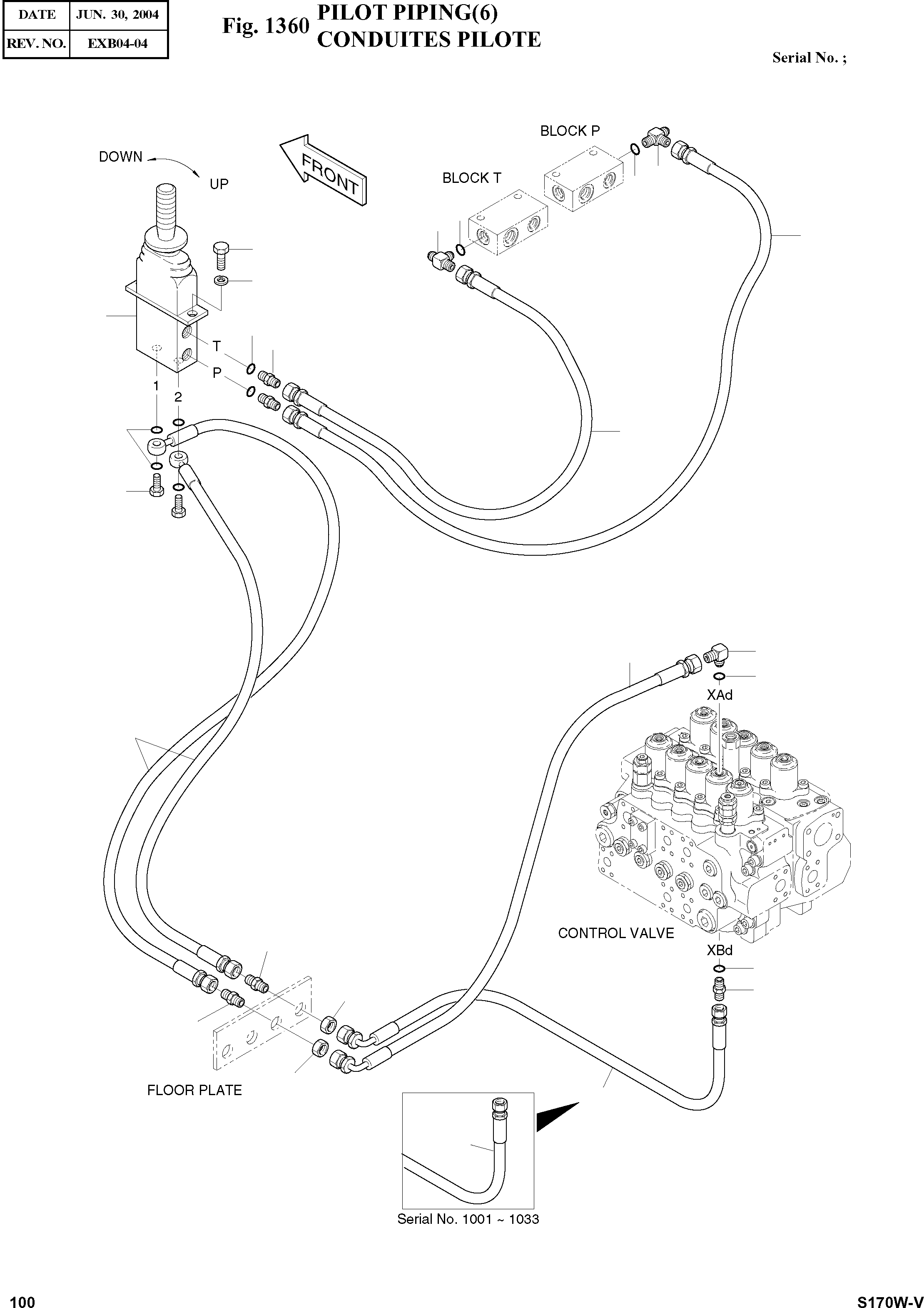

Запчасти Doosan Daewoo PILOT PIPING(6) BODY PARTS

-

400-00014A

PILOT PIPING

SERIAL: 1001-1216

-2шт.

-

400-00014B

PILOT PIPING

SERIAL: 1217-1218

-2шт.

-

400-00014C

PILOT PIPING

SERIAL: 1219

-2шт.

3

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

4шт.

9

2181-2281D4

TEE PFO3/8X2-PF1/4

desc: TE

1шт.

24

2181-1702D10

ELBOW PFO3/8XPF1/4

desc: COUDE

1шт.

25

2181-1126D36

ADAPTER PFO3/8XPF1/4

desc: RACCORD ADAPTATEUR

1шт.

46

2181-1917D4

ADAPTER 2-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

48

121-00006

NUT

desc: ECROU

2шт.

49

S8180221

PACKING

desc: RONDELLE D'ETANCHEITE

6шт.

54

2120-1475

BOLT;HOLLOW

desc: BOULON A 6 PANS

2шт.

56

2181-1951D7

TEE PFO3/8X2-PF1/4

desc: TE

1шт.

89

2184-1046D73

HOSE PF1/4-1900L

SERIAL: 1001-1033

2шт.

89

2184-1046D73

HOSE PF1/4-1900L

SERIAL: 1034

1шт.

104

2184-1045D125

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

2шт.

114

2184-1046D221

HOSE PF1/4-2050L

SERIAL: 1034

1шт.

115

2184-9081

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

2шт.

120

S3450973

SCREW

desc: VIS M6X1.0X20

2шт.

126

2420-9512A

VALVE;REMOCON

desc: DOZER VANNE DE COMMANDE A DISTANCE

1шт.

141

2181-2178

ADAPTER 2-PF1/4

desc: RACCORD ADAPTATEUR

2шт.
