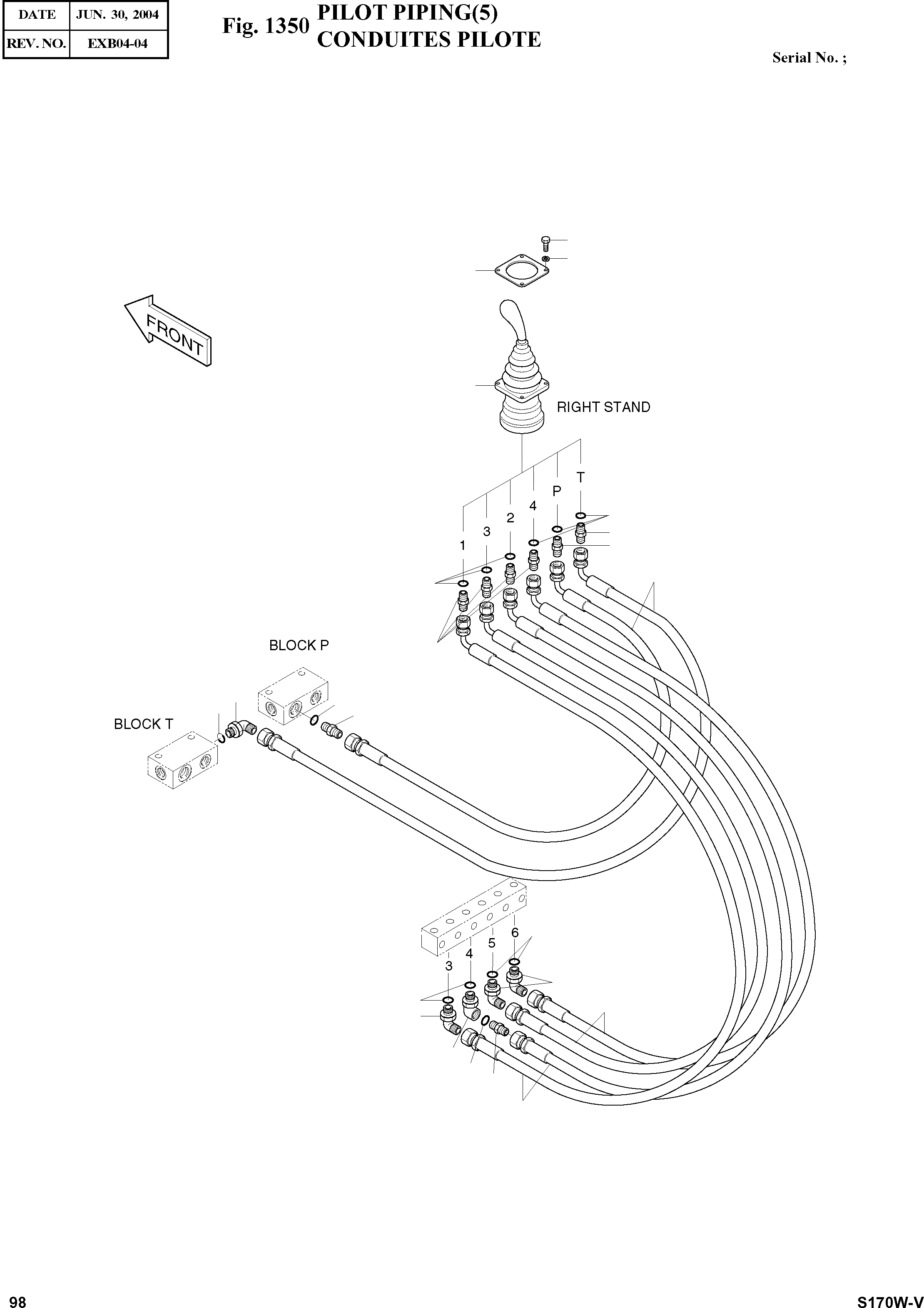

Запчасти Doosan Daewoo PILOT PIPING(5) BODY PARTS

-

400-00014A

PILOT PIPING

SERIAL: 1001-1216

-2шт.

-

400-00014B

PILOT PIPING

SERIAL: 1217-1218

-2шт.

-

400-00014C

PILOT PIPING

SERIAL: 1219

-2шт.

3

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

7шт.

10

2181-1126D7

ADAPTER PFO3/8XPF3/8

desc: RACCORD ADAPTATEUR

1шт.

12

2181-1702D5

ELBOW FPO3/8XPF3/8

desc: COUDE

4шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

20

181-00144D10

ADAPTER;ORIFICE

desc: ADAPTATEUR

1шт.

53

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: RACCORD ADAPTATEUR

6шт.

62

2181-2295D16

ELBOW 2-PFO3/8

desc: COUDE

1шт.

110

2184-1060D154

HOSE PF3/8X1850L

desc: TUYAU FLEXIBLE

2шт.

111

2184-1060D155

HOSE PF3/8X1550L

desc: TUYAU FLEXIBLE

4шт.

122

2420-9517

VALVE;REMOCON(R.H.)

SERIAL: 1001-1029

1шт.

122

420-00238

VALVE;REMOCON(R.H.)

SERIAL: 1030

1шт.

123

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

124

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.
