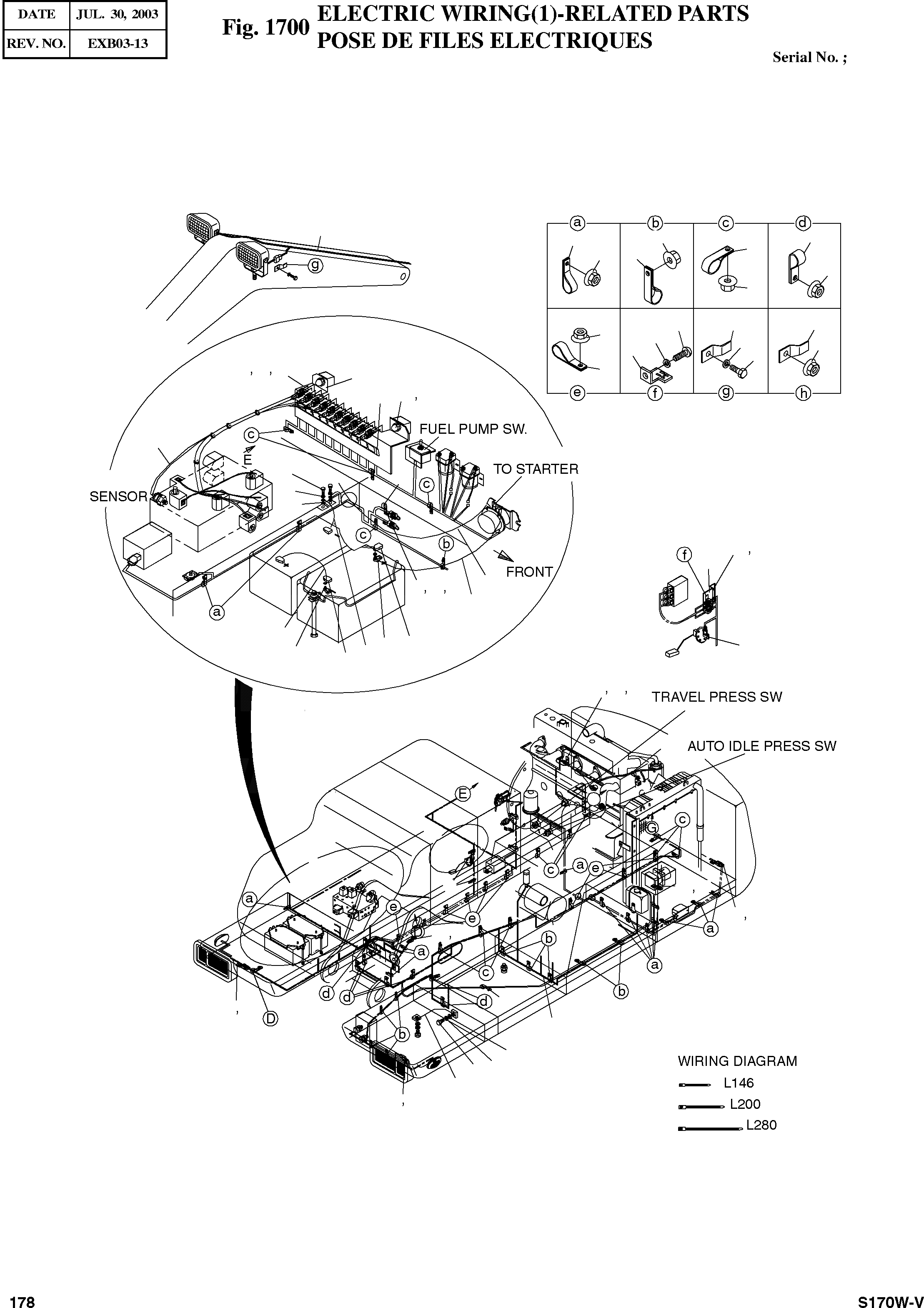

Запчасти Doosan Daewoo ELECTRIC WIRING(1)-RELATED PARTS BODY PARTS

-

2500-1266

ELECTRIC WIRING

SC: D

-2шт.

1

2599-1151

WIRING DIAGRAM

SERIAL: 1001-1122

1шт.

1

2599-1151A

WIRING DIAGRAM

SERIAL: 1123

1шт.

2

2530-1766A

HARNESS;MAIN

SERIAL: 1001-1216

1шт.

2

2530-1766B

HARNESS;MAIN

SERIAL: 1217

1шт.

4

2530-1609D1

HARNESS;WORKING LAMP

desc: FAISCEAU

1шт.

6

530-00002

HARNESS;PRESS. SENSOR

desc: FAISCEAU

1шт.

7

2550-1014D1

TERMINAL;BATTERY

desc: COSSE DE BATTERIE(+)

2шт.

8

2550-1014D2

TERMINAL;BATTERY

desc: COSSE DE BATTERIE

2шт.

9

2160-1212

CAP;BATT. TERMINAL(+)RED

desc: CHAPEAU DE CAOUTCHOUC

2шт.

10

2160-1213

CAP;BATT. TERMINAL(-)BLACK

desc: BOUCHON

2шт.

11

2553-1275D5

CABLE;BATT-EARTH 60B-L300

desc: CABLE

1шт.

12

2553-1275D6

CABLE;BATT-BATT 60R-L250

desc: CABLE BATTERIE A BATTERIE

1шт.

13

2553-1275D7

CABLE;BATT-BATT RELAY 60R-L25

desc: CABLE

1шт.

14

2553-1275D10

CABLE;BATT RELAY-STARTER 60R-

desc: CABLE

1шт.

15

2553-1275D5

CABLE;FL-EARTH 60B-L300

desc: CABLE

1шт.

16

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

4шт.

17

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

18

S5010613

WASHER;PLAIN M10

desc: RONDELLE

4шт.

19

2195-3500

BRACKET;HOUSING

desc: SUPPORT

16шт.

20

S3450953

SCREW M6X1.0X12

desc: VIS

15шт.

21

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

15шт.

22

2891-1796

PLATE

desc: PLAQUE

1шт.

23

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

2шт.

24

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

25

2190-3367B

PLATE;NAME SOL V/V

desc: PLAQUE D'IDENTIFICATION

1шт.

26

2197-2220

BRACKET

desc: SUPPORT

1шт.

27

S0508353

BOLT M8X1.25X10

desc: BOULON A 6 PANS

2шт.

28

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

29

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

5шт.

31

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

8шт.

32

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

8шт.

35

2124-1509D1

CLIP D12/M8

desc: ATTACHE

8шт.

36

2124-1509D2

CLIP D18/M8

desc: ATTACHE

21шт.

37

2124-1509D3

CLIP D24/M8

desc: ATTACHE

21шт.

38

2124-1509D4

CLIP D30/M8

desc: ATTACHE

10шт.

39

2124-1509D5

CLIP D36/M8

desc: ATTACHE DE TUYAU

8шт.

40

2121-1305

NUT M8X1.25

desc: ECROU

66шт.

41

2124-1622D1

CLIP;BAND L146

desc: ATTACHE

15шт.

42

2124-1622D2

CLIP;BAND L200

desc: ATTACHE

30шт.

43

2124-1622D3

CLIP;BAND L280

desc: ATTACHE

10шт.
