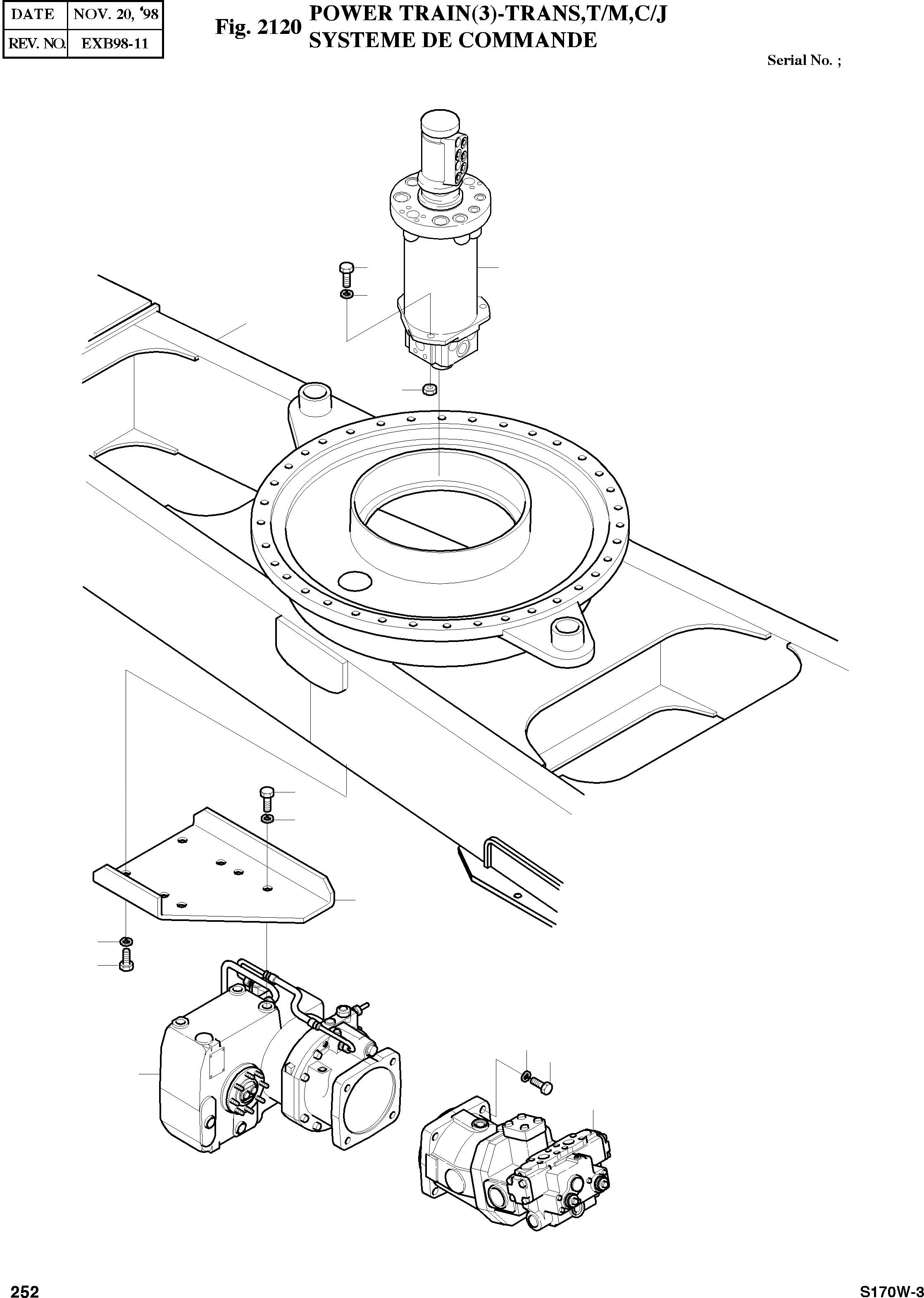

Запчасти Doosan Daewoo POWER TRAIN(3)-TRANS.T/M.C/J POWER TRAIN

-

2211-4008

POWER TRAIN

desc: ENSEMBLE TRANSMISSION

-2шт.

5

2401-9145

MOTOR TRAVEL

SERIAL: 1-341

1шт.

5

2401-9145A

MOTOR TRAVEL

SERIAL: 342

1шт.

6

2210-9410A

TRANSMISSION

SERIAL: 1-361

1шт.

6

2210-9410B

TRANSMISSION

SERIAL: 362

1шт.

7

2480-9012

JOINT;CENTER

SERIAL: 1

1шт.

7

2480-9012A

JOINT;CENTER

ICA: Y

1шт.

7

2480-9012C

JOINT;CENTER

SERIAL: 362

1шт.

16

2191-3402A

PLATE

desc: PLAQUE

1шт.

18

2603-4061C

CHASSIS;FRAME ASS'Y

SERIAL: 56-131

1шт.

18

2603-4061G

CHASSIS;FRAME ASS'Y

SERIAL: 132

1шт.

18

2603-4061H

CHASSIS;FRAME ASS'Y

desc: BATI DE CHASSIS

1шт.

18

2603-4061J

CHASSIS;FRAME ASS'Y

SERIAL: 372-381

1шт.

18

2603-4061K

CHASSIS;FRAME ASS'Y

SERIAL: 382-420

1шт.

18

2603-4061L

CHASSIS;FRAME ASS'Y

SERIAL: 421-443

1шт.

18

2603-4061P

CHASSIS;FRAME ASS'Y

SERIAL: 444-456

1шт.

18

2603-4061Q

CHASSIS;FRAME ASS'Y

SERIAL: 457

1шт.

20

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

7шт.

21

S4012933

NUT M16X2.0

desc: ECROU

3шт.

24

S0521461

BOLT M16X2.0X40

SERIAL: 1-119

3шт.

24

S0521561

BOLT M16X2.0X45

SERIAL: 120

3шт.

26

S0527661

BOLT M20X2.5X50

desc: BOULON A 6 PANS

4шт.

27

S0527561

BOLT M20X2.5X45

desc: BOULON A 6 PANS

3шт.

28

S5103101

WASHER;SPRING M20

desc: RONDELLE ELASTIQUE

7шт.

38

S0565361

BOLT M16X2.0X55

desc: BOULON A 6 PANS

4шт.
