Запчасти Doosan Daewoo OUTRIGGER PIPING-FRONT POWER TRAIN

-

2400-4153

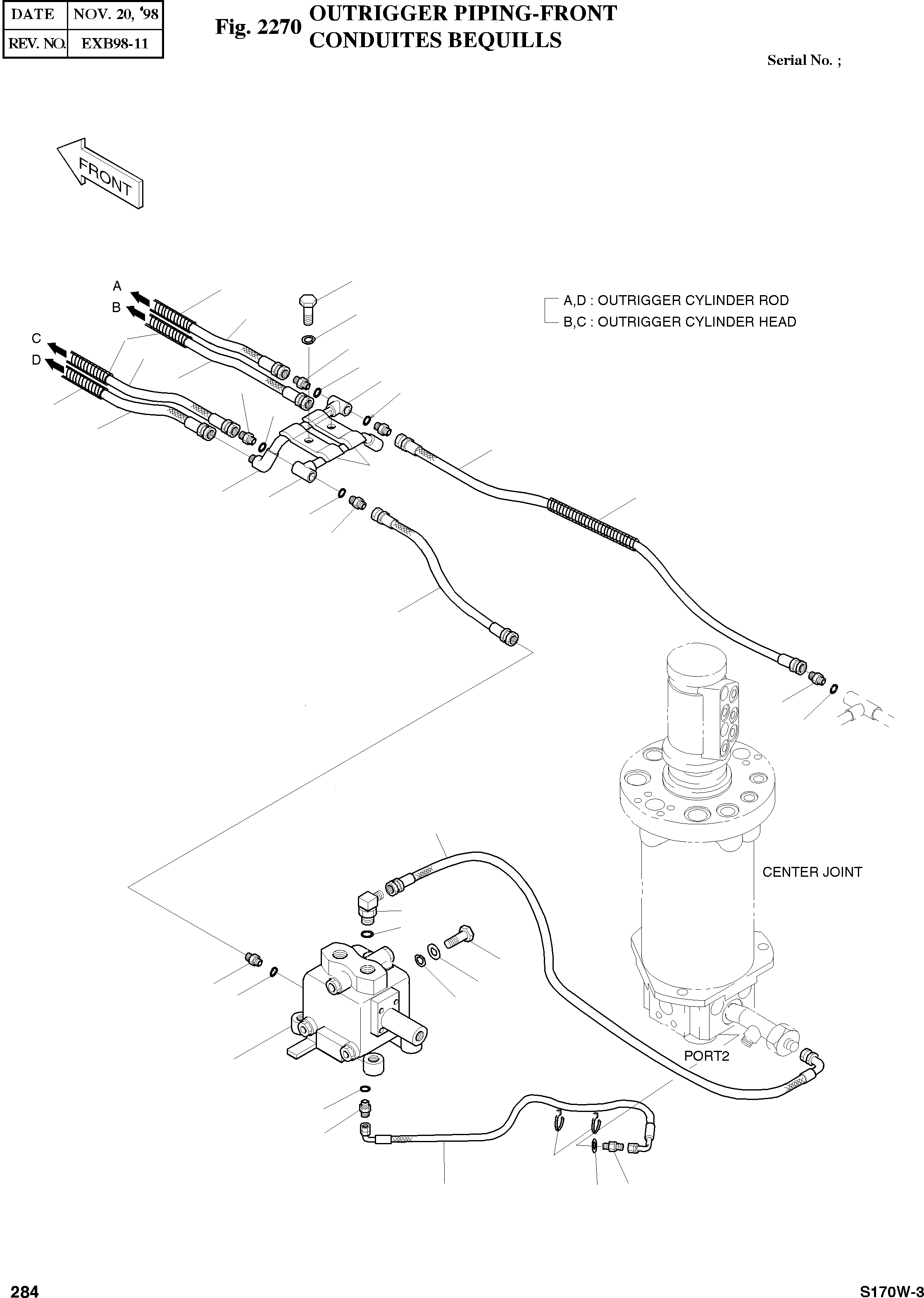

FRONT OUTRIGGER PIPING

desc: ENSEMBLE FRONTAL

-2шт.

1

S8000111

O-RING P11

REP_PNO: 8202-009

3шт.

2

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD ADAPTATEUR

2шт.

3

2184-1061D2

HOSE PF1/4-1235L

desc: TUYAU FLEXIBLE

1шт.

4

2181-1126D39

ADAPTER PFO1/4. PF3/8

SERIAL: 1-55

1шт.

4

2181-1702D3

ELBOW PFO1/4.PF3/8

SERIAL: 56

1шт.

5

2184-1090D14

HOSE PF3/8-650L

SERIAL: 1-55

1шт.

5

2184-1036D181

HOSE PF3/8-1200L

SERIAL: 56

1шт.

6

2420-9291A

VALVE;SELECTOR

desc: VANNE DE SELECTION

1шт.

7

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE M10

3шт.

8

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

9

S2213161

BOLT;SOCKET M10X1.5X75

desc: BOULON A 6 PANS CREUX

3шт.

10

S8000241

O-RING P24

desc: JOINT TORIQUE P24

1шт.

11

2181-1126D24

ADAPTER PFO3/4-PF1/2

desc: RACCORD ADAPTATEUR

1шт.

12

2184-1026D245

HOSE PF1/2-820L

desc: TUYAU FLEXIBLE

1шт.

13

S8000181

O-RING P18

REP_PNO: 8202-014

5шт.

14

2181-1126D6

ADAPTER;S PF.PFO1/2

desc: RACCORD ADAPTATEUR

5шт.

15

2184-1026D306

HOSE PF1/2-1850L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1026D332

HOSE PF1/2-1050L

SERIAL: 1-10

2шт.

16

2184-1026D335

HOSE PF1/2-950L

SERIAL: 11

2шт.

17

2158-1003D4

PROTECTOR;HOSE

desc: PROTECTEUR

4шт.

18

2183-4810

PIPE

desc: CONDUITE

1шт.

19

2183-4809

PIPE

desc: CONDUITE

1шт.

20

2124-1340D5

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

21

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

22

S0560653

BOLT M12X1.75X45

desc: BOULON A 6 PANS

2шт.

23

2124-1084D3

CLIP;BAND

desc: ATTACHE

2шт.

24

2184-1026D331

HOSE PF1/2-1000L

SERIAL: 1-371

2шт.

24

2184-1026D332

HOSE PF1/2-1050L

SERIAL: 372

2шт.
