Запчасти Doosan Daewoo CHOCKING PIPING POWER TRAIN

-

2400-4149

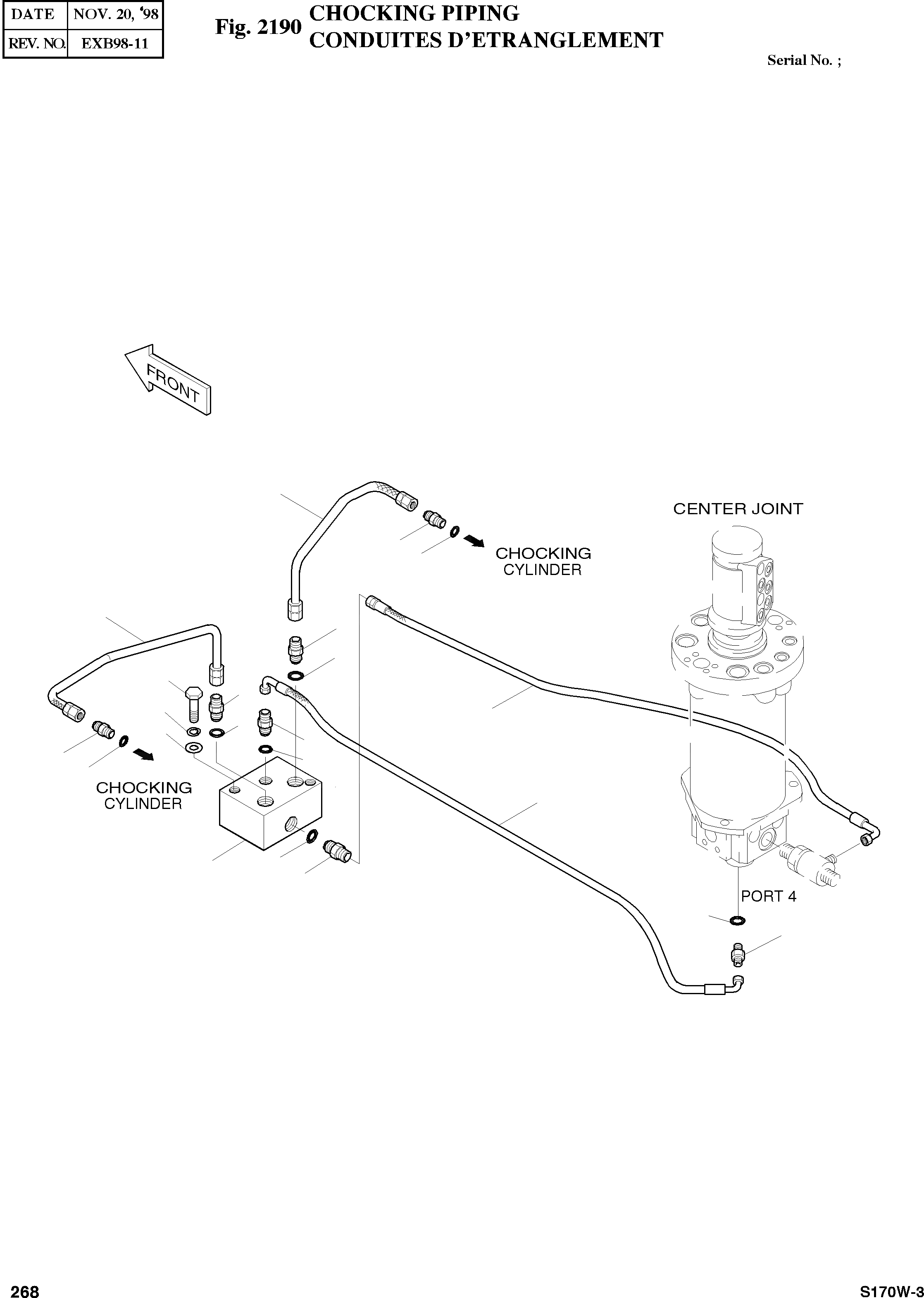

STEERING & CHOCKING PIPING

desc: DIRECTION

-2шт.

3

2181-1126D7

ADAPTER;S PF.PFO3/8

desc: RACCORD ADAPTATEUR

2шт.

4

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

8

2183-4807

PIPE

desc: CONDUITE

1шт.

9

2183-4808

PIPE

desc: CONDUITE

1шт.

10

2181-1126D8

ADAPTER;S UNFO3/4.PF3/8

desc: RACCORD ADAPTATEUR

2шт.

11

2180-1026D13

O-RING UNF3/4

desc: JOINT TORIQUE

2шт.

12

2423-9007A

VALVE;CHOCKING

desc: VANNE

1шт.

13

S0557053

BOLT M8X1.25X85

desc: BOULON A 6 PANS

2шт.

14

S5010513

WASHER;PLAIN M8

desc: RONDELLE M8

2шт.

15

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

16

2184-1045D101

HOSE PF1/4-2200L

desc: TUYAU FLEXIBLE

1шт.

17

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD ADAPTATEUR

3шт.

18

S8000111

O-RING P11

REP_PNO: 8202-009

3шт.

19

2184-1061D3

HOSE PF1/4-2180L

desc: TUYAU FLEXIBLE

1шт.
