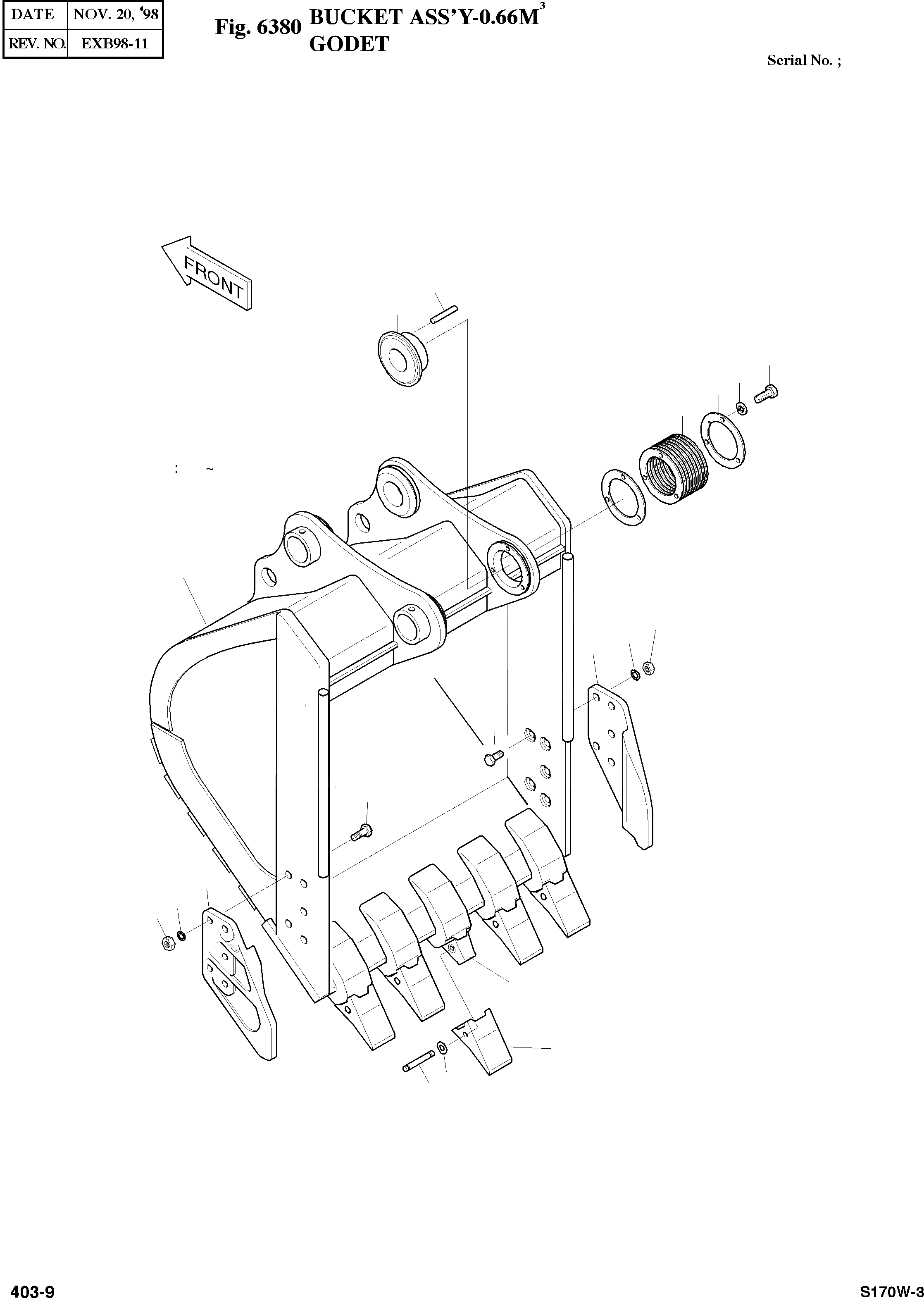

Запчасти Doosan Daewoo BUCKET ASSY-0.66M©ш OPTION PARTS

-

2704-1512

BUCKET SUB ASS'Y-0.66§©

SERIAL: 1-443

1шт.

1

2704-1511

BUCKET SUB ASS'Y-0.66§©

desc: GODET

1шт.

1A

2704-1510

BUCKET-0.66§©

desc: . GODET

1шт.

1AA

2713-1218

ADAPTER;TOOTH

desc: .. RACCORD

5шт.

1B

2713-1217

POINT;TOOTH

desc: . DENT

5шт.

1C

2705-1020

PIN;LOCKING

desc: . BROCHE DE BLOCAGE

5шт.

1D

2114-1848A

WASHER;LOCK

desc: . RONDELLE D'ARRET

5шт.

1E

2713-1059

CUTTER SIDE(R)

desc: . COUTEAU LATERAL

1шт.

1F

2713-1060

CUTTER SIDE(L)

desc: . COUTEAU LATERAL

1шт.

1G

S0570061

BOLT M20X2.5X60

desc: . BOULON A 6 PANS

10шт.

1H

S4013133

NUT M22X1.5

desc: . ECROU

10шт.

1I

S5103101

WASHER;SPRING M20

desc: . RONDELLE ELASTIQUE

10шт.

2

2114-1378

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

3

2191-1771

PLATE

desc: PLAQUE

1шт.

4

2123-1107D2

PIN;DOWEL

desc: GOUPILLE

1шт.

5

S0521661

BOLT M16X2.0X50

desc: BOULON A 6 PANS

3шт.

6

S5102903

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

3шт.

7

2114-1360

SHIM

desc: CALE

9шт.

8

2114-1361

SHIM

desc: CALE

1шт.
