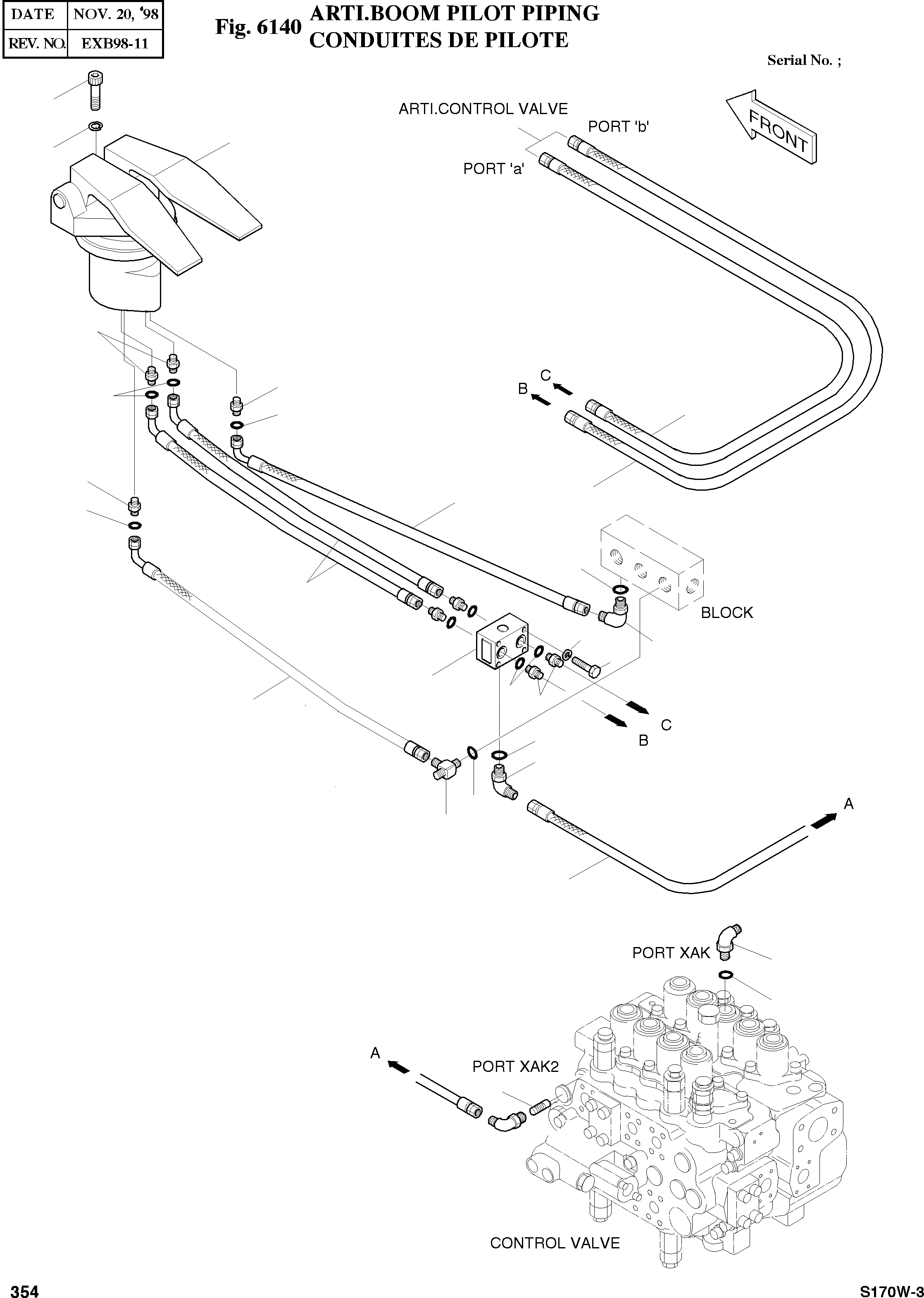

Запчасти Doosan Daewoo ARTI.BOOM PILOT PIPING OPTION PARTS

-

2400-1498

ARTI. BOOM PILOT PIPING

desc: CONDUITES PILOTE

1шт.

1

2420-9158

SOLENOID VALVE;BLOCK

desc: SOUPAPE A SOLENOIDE

1шт.

2

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

3

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

5

S2205261

BOLT;SOCKET M6X1.0X30

desc: BOULON A 6 PANS CREUX

3шт.

6

2420-9412

VALVE;OPTION

desc: VANNES EN OPTION

1шт.

7

2181-1917D24

ADAPTER PF1/4. 1/4

desc: RACCORD ADAPTATEUR

1шт.

8

S8180221

PACKING PF1/4"

desc: RONDELLE D'ETANCHEITE

4шт.

9

2181-1917D4

ADAPTER;S PF1/4. 1/4

desc: RACCORD ADAPTATEUR

3шт.

10

S8000111

O-RING P11

REP_PNO: 8202-009

8шт.

11

2181-1702D4

ELBOW PFO. PF1/4

desc: COUDE

3шт.

12

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD ADAPTATEUR

4шт.

13

2181-1951D1

TEE PFO. 2-PF1/4

desc: TE

1шт.

14

2184-1046D143

HOSE (S-90)PF1/4-1150L

desc: TUYAU FLEXIBLE

2шт.

15

2184-1046D142

HOSE (S-90)PF1/4-900L

desc: TUYAU FLEXIBLE

2шт.

17

2184-1045D157

HOSE PF1/4-1500L

SERIAL: 1-341

1шт.

17

2184-1045D147

HOSE PF1/4-2250L

SERIAL: 342

1шт.

18

2184-1045D97

HOSE PF1/4-3300L

desc: TUYAU FLEXIBLE

1шт.

19

2184-1045D94

HOSE PF1/4-3900L

desc: TUYAU FLEXIBLE

1шт.

20

2424-1140

SPOOL;BC

desc: TIROIR

1шт.
