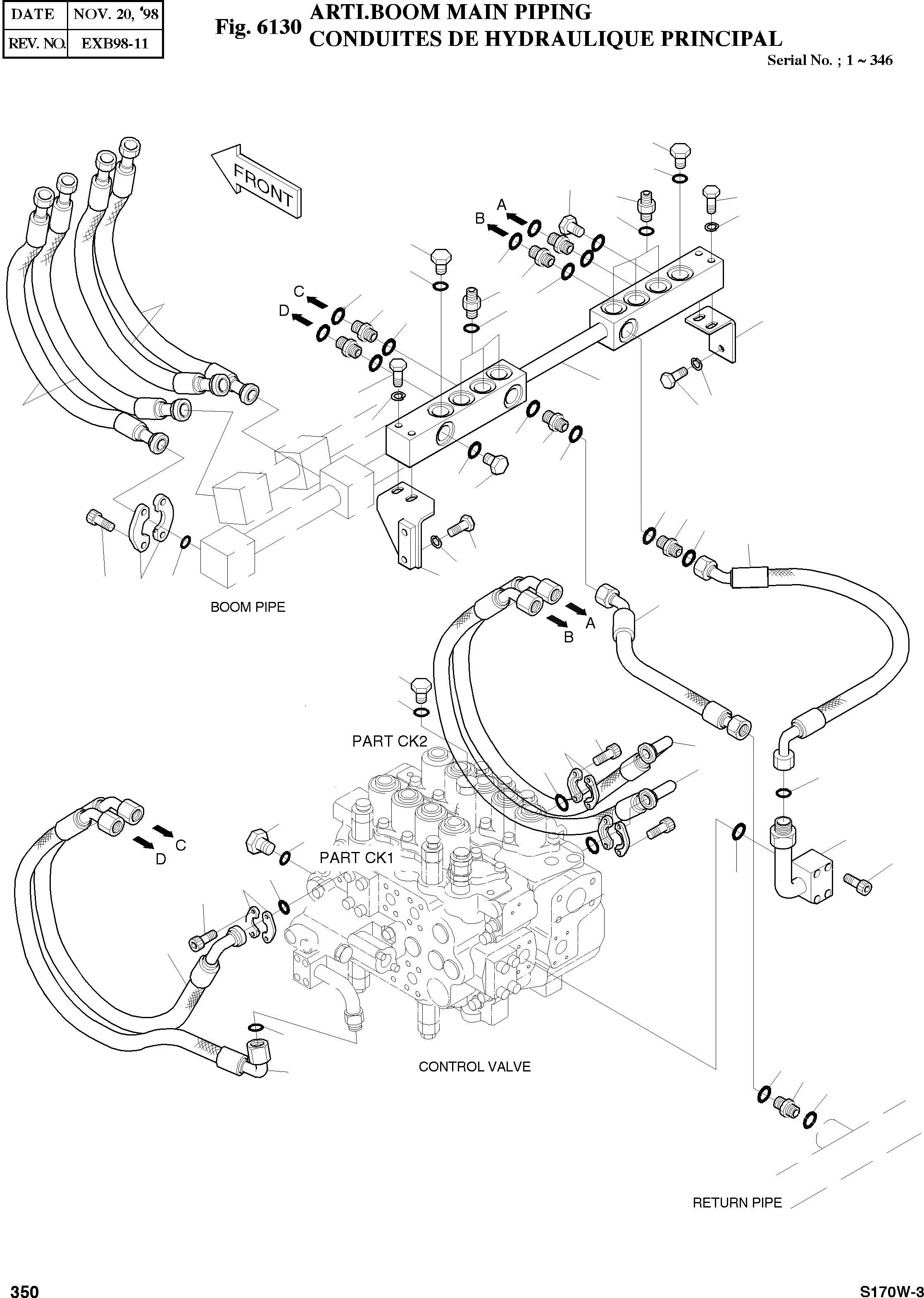

Запчасти Doosan Daewoo ARTI.BOOM MAIN PIPING OPTION PARTS

-

2400-4172

ARTI. BOOM MAIN PIPING

SERIAL: 1-346

1шт.

1

2181-4297

BLOCK

desc: BLOC

1шт.

2

2195-4701

BRACKET

desc: SUPPORT

1шт.

3

2195-4702

BRACKET

desc: SUPPORT

1шт.

4

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

5

S0559153

BOLT M10X1.5X80

desc: BOULON A 6 PANS

4шт.

6

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

7

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

8

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

9

2183-3834

PIPE

desc: CONDUITE

1шт.

10

2184-1212D12

HOSE PF3/4-550L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1219D4

HOSE PF3/4-900L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1250D8

HOSE PF3/4-1300L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1250D9

HOSE PF3/4-1250L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1250D10

HOSE PF3/4-1350L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1250D11

HOSE PF3/4-1250L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1229D2

HOSE PF3/4-850L

desc: TUYAU FLEXIBLE

4шт.

17

2181-4133D5

ADAPTER PF3/4. ORS3/4

desc: RACCORD ADAPTATEUR

12шт.

18

2181-4133D12

ADAPTER PFO1. ORS3/4

desc: RACCORD ADAPTATEUR

1шт.

19

2181-1950D5

PLUG PFO3/4

desc: BOUCHON

4шт.

20

2181-1950D7

PLUG PFO1/2

desc: BOUCHON

2шт.

21

S2212061

BOLT;SOCKET M10X1.5X25

desc: BOULON A 6 PANS CREUX

16шт.

22

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

12шт.

23

S2212761

BOLT;SOCKET M10X1.5X55

desc: BOULON A 6 PANS CREUX

4шт.

24

2181-9078

FLANGE;SPLIT 1"-5000PSI

desc: BRIDE

8шт.

25

2181-9083

FLANGE;SPLIT 1"-5000PSI

desc: BRIDE

6шт.

26

S8000181

O-RING P18

REP_PNO: 8202-014

2шт.

27

S8000241

O-RING P24

desc: JOINT TORIQUE P24

16шт.

28

S8030121

O-RING F-12

desc: JOINT TORIQUE

12шт.

29

S8000291

O-RING P29

REP_PNO: 8202-023

1шт.

30

2180-1026D2

O-RING SAE3/4"

desc: JOINT TORIQUE

4шт.

31

2180-1026D19

O-RING SAE1"

desc: JOINT TORIQUE

4шт.
