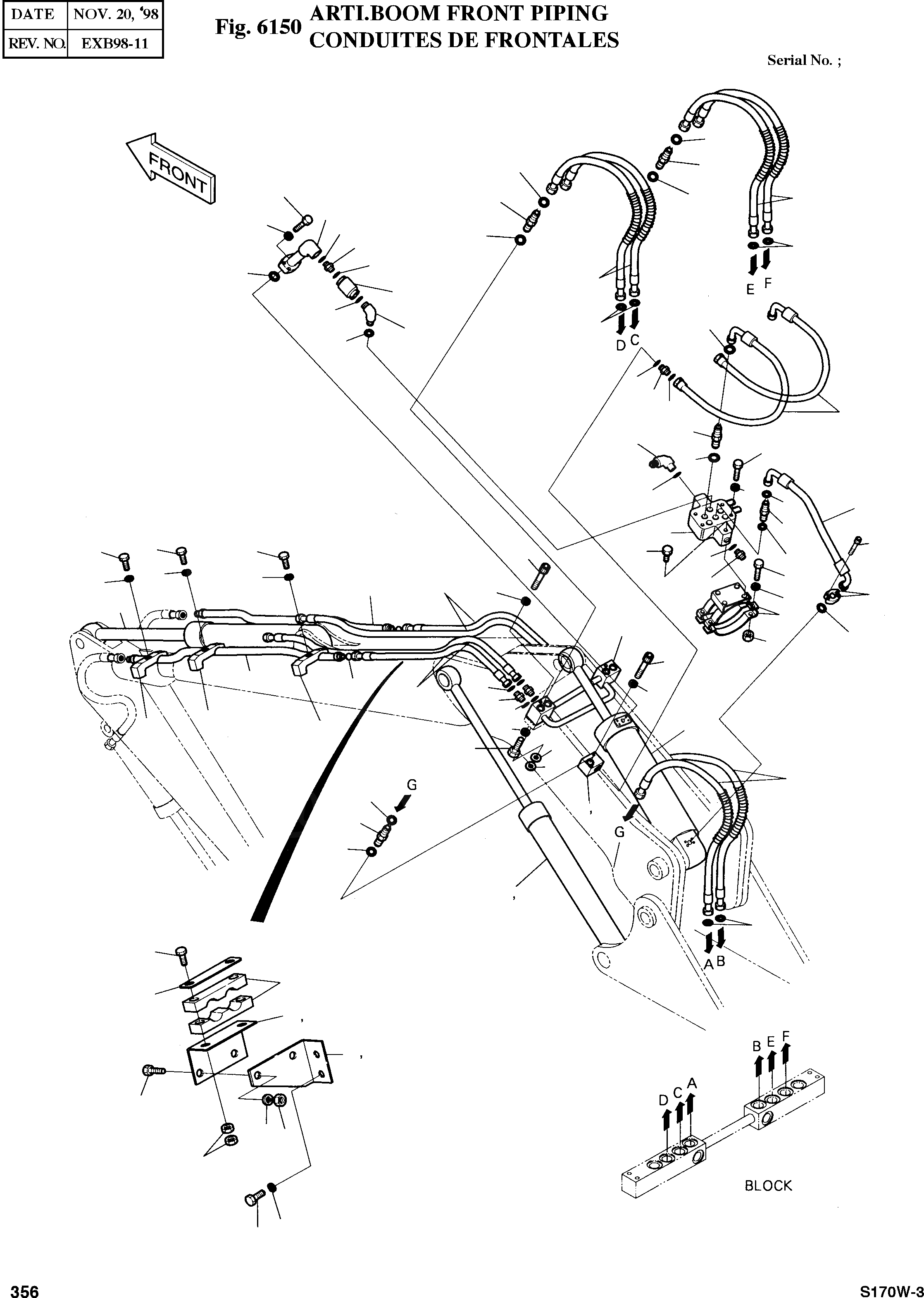

Запчасти Doosan Daewoo ARTI.BOOM FRONT PIPING OPTION PARTS

-

2400-4164

ARTI. BOOM FRONT PIPING

SC: D

-2шт.

1

2440-9432

CYLINDER;BOOM(R.H)

SERIAL: 1-451

1шт.

1

2440-9432B

CYLINDER;BOOM(R.H)

SERIAL: 452

1шт.

2

2440-9433

CYLINDER;BOOM(L.H)

SERIAL: 1-451

1шт.

2

2440-9433B

CYLINDER;BOOM(L.H)

SERIAL: 452

1шт.

3

2440-9124

CYLINDER;ARM

SERIAL: 1-451

1шт.

3

2440-9124A

CYLINDER;ARM

SERIAL: 452

1шт.

4

2440-9434

CYLINDER;ARTICULATION

SERIAL: 1-451

1шт.

4

2440-9434B

CYLINDER;ARTICULATION

SERIAL: 452

1шт.

5

2183-4822

PIPE

desc: CONDUITE

1шт.

6

2183-4823

PIPE

desc: CONDUITE

1шт.

7

2184-1196D20

HOSE PF3/4-2000L

desc: TUYAU FLEXIBLE

6шт.

8

2184-1196D11

HOSE PF3/4-2150L

desc: TUYAU FLEXIBLE

4шт.

9

2184-1197D27

HOSE PF3/4-1050L

desc: TUYAU FLEXIBLE

2шт.

10

2184-1202D21

HOSE PF3/4-620L

desc: TUYAU FLEXIBLE

1шт.

11

2124-1026D2

CLAMP;PIPE

desc: ATTACHE DE TUBE

6шт.

12

2191-4571

PLATE

desc: PLAQUE

1шт.

13

2191-4572

PLATE

desc: PLAQUE

1шт.

14

2191-4573

PLATE

desc: PLAQUE

1шт.

15

2191-4574

PLATE

desc: PLAQUE

1шт.

16

2124-4061

CLAMP

desc: COLLIER

4шт.

17

2191-4575

PLATE

desc: PLAQUE

2шт.

18

2423-4011

BLOCK

desc: BLOC

1шт.

19

2181-4133D5

ADAPTER PF3/4. ORS3/4

desc: RACCORD ADAPTATEUR

15шт.

20

S8000241

O-RING P24

desc: JOINT TORIQUE

19шт.

21

S8030121

O-RING F-12

desc: JOINT TORIQUE

25шт.

22

2420-9229A

VALVE;CONTROL

SERIAL: 1-461

1шт.

22

2420-9365

VALVE;CONTROL

SERIAL: 462

1шт.

23

2195-4697

BRACKET

desc: SUPPORT

1шт.

24

2183-3842A

PIPE

desc: CONDUITE

1шт.

25

S2212461

BOLT;SOCKET M10X1.5X40

desc: BOULON A 6 PANS CREUX

4шт.

26

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

21шт.

27

S8010301

O-RING

desc: JOINT TORIQUE

1шт.

28

2181-1938D11

ADAPTER PF3/4. 3/4

desc: RACCORD ADAPTATEUR

1шт.

29

2420-9101A

VALVE;SLOW RETURN

desc: CLAPET RETOUR BASSE PRESSION

1шт.

30

2181-2421

ELBOW PF3/4. 3/4

desc: COUDE

1шт.

32

2181-1116D9

PLUG PT1/4

desc: BOUCHON PT1/4

1шт.

33

2181-9079

FLANGE;SPLIT 3/4"-5000PSI

desc: BRIDE

2шт.

34

2180-1026D2

O-RING SAE3/4"

desc: JOINT TORIQUE

1шт.

35

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

4шт.

36

S0559353

BOLT M10X1.5X90

desc: BOULON A 6 PANS

3шт.

37

S0512353

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

38

S4012633

NUT M10X1.5

desc: ECROU M10x1.5

12шт.

39

S2213671

BOLT;SOCKET M10X1.5X100

desc: BOULON A 6 PANS CREUX

2шт.

40

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE M10

4шт.

41

2114-1059D36

SHIM 1.2T

desc: CALE

4шт.

42

S0511953

BOLT M10X1.5X22

desc: BOULON A 6 PANS

4шт.

43

S0512153

BOLT M10X1.5X28

desc: BOULON A 6 PANS

4шт.

44

S0559153

BOLT M10X1.5X80

desc: BOULON A 6 PANS

4шт.

45

S0560853

BOLT M12X1.75X55

desc: BOULON A 6 PANS

6шт.

46

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

6шт.

47

2181-1702D4

ELBOW PFO. PF1/4

desc: COUDE

1шт.

48

S8000111

O-RING P11

REP_PNO: 8202-009

2шт.

49

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD ADAPTATEUR

1шт.

50

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

51

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

2шт.

52

S2213261

BOLT;SOCKET M10X1.5X80

desc: BOULON A 6 PANS CREUX

4шт.

53

2423-4014

BLOCK(R.H)

desc: BLOC

1шт.

54

2423-4015

BLOCK(L.H)

desc: BLOC

1шт.
