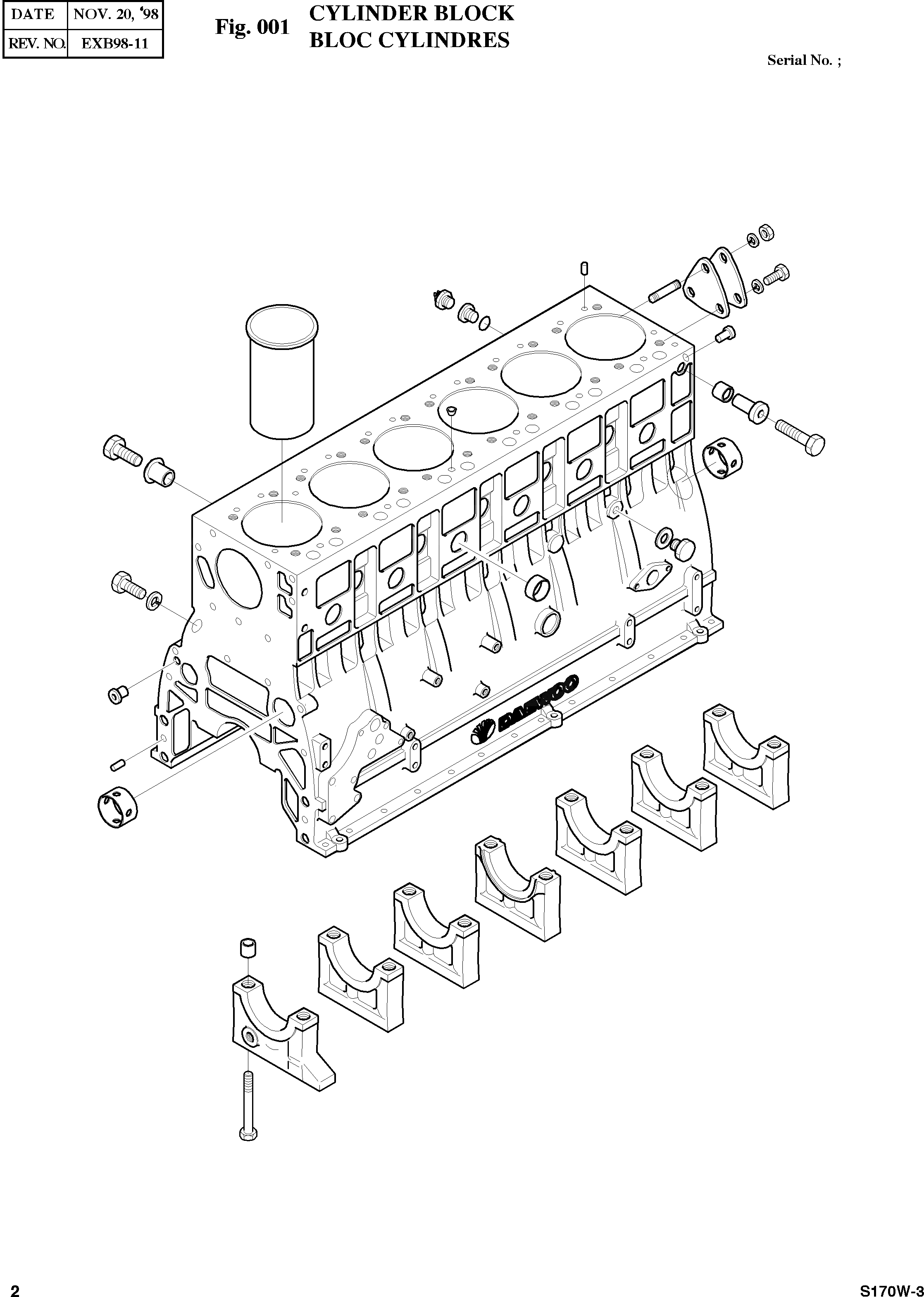

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

-

65.01101-6041

CYLINDER BLOCK ASS'Y

desc: ENSEMBLE BLOC-CYLINDRES

1шт.

1

65.01101-0041

BLOCK;CYLINDER

desc: . BLOC CYLINDRES

1шт.

2

06.15091-0326

PLUG;CORE HOLE B40D

desc: . BOUCHON

9шт.

3

65.91606-0041

PLUG;CORE HOLE B20D

desc: . BOUCHON

2шт.

3

65.91020-0013

PLUG

desc: . BOUCHON

1шт.

4

65.91001-0002

PLUG

desc: . BOUCHON

2шт.

5

65.04410-0017

BUSH;CAMSHAFT

desc: . DOUILLE

4шт.

6

65.01105-1164

CAP;BEARING(NO.7)

SC: D

1шт.

7

65.01105-1160

CAP;BEARING(NO.1.2.3.5.6)

SC: D

5шт.

8

65.01105-1156

CAP;BEARING(NO.4)

SC: D

1шт.

9

65.91710-0035

RING;LOCATING

desc: . BAGUE

14шт.

10

65.90020-0035

BOLT;BEARING CAP(12.9T)

SERIAL: 500082

14шт.

10

65.90020-0035A

BOLT;BEARING CAP(12.9T)

SERIAL: 500083

14шт.

11

65.01201-0020

LINER;CYLINDER

desc: CHEMISE DE CYLINDRE

6шт.

12

65.90310-0048

SCREW;LUG M10X1.5

desc: VIS

6шт.

13

06.56180-0714

RING;SEAL A10X15

desc: BAGUE D'ETANCHEITE

6шт.

14

65.90310-0091

SCREW;PLUG M12X1.5

desc: . VIS

1шт.

15

06.56190-0704

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE

1шт.

16

06.22022-0907

PIN;DOWEL 6m6X10

desc: . GOUPILLE

6шт.

17

65.96601-0042

GASKET;END COVER

desc: JOINT DU COUVERCLE AR

1шт.

18

65.91605-0006

COVER;END

desc: COUVERCLE ARRIERE

1шт.

19

06.01283-7111

BOLT;HEX

desc: BOULON A 6 PANS

2шт.

19

06.01913-3111

BOLT;HEX. M8X1.25X16

desc: BOULON A 6 PANS

2шт.

20

06.06225-0704

BOLT;STUD M8X20

desc: GOUJON

1шт.

21

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE A8

3шт.

21

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE A8

1шт.

22

06.11063-8214

NUT;HEX. M8

desc: ECROU 6 PANS M8

1шт.

23

06.22220-1212

PIN;SPIRAL LOCK 8X24

desc: GOUJON

2шт.

24

65.91701-0088

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

25

06.01283-7519

BOLT;HEX. M16X40

desc: BOULON A 6 PANS

2шт.

25

06.01013-9517

BOLT;HEX. M16X60

desc: BOULON A 6 PANS

1шт.

26

65.27441-7007

SWITCH;OIL PRESSURE

desc: MANOCONTACT DE PRESSION D'HUILE

1шт.

27

65.98130-0030

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

28

06.56180-0714

RING;SEAL A10X15

desc: BAGUE D'ETANCHEITE

1шт.

29

65.91701-0273

RING;SPACER

desc: BAGUE

1шт.

30

65.91701-0088

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

31

06.01283-7524

BOLT;HEX. M16X65

desc: BOULON A 6 PANS

1шт.
