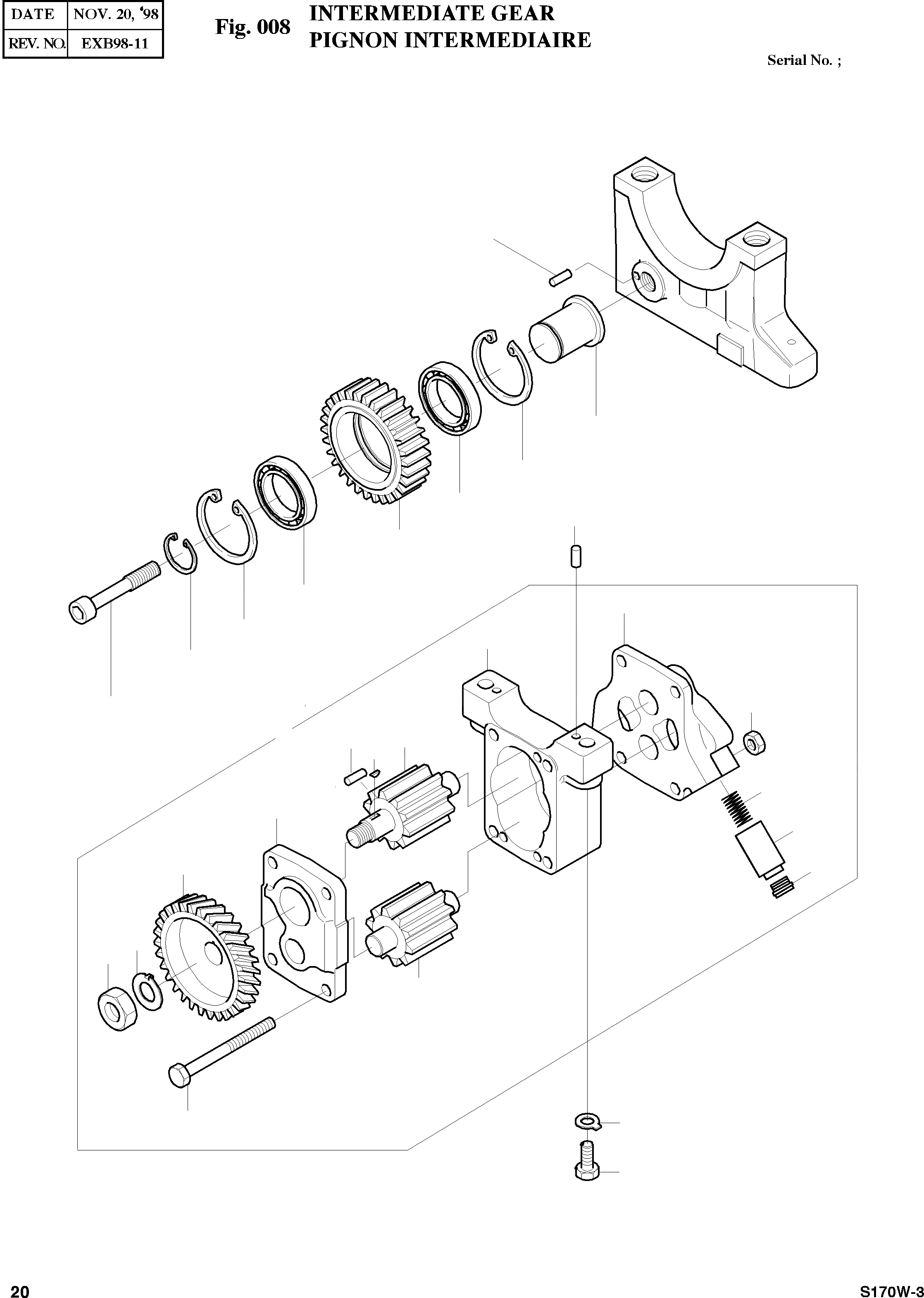

Запчасти Doosan Daewoo INTERMEDIATE GEAR ENGINE PARTS

5
4
3
2
24
1
2
13
3
10
6
17
7
8
11
15
18
22
14
21
9
23
19
20
12
25
16
26

Артикул

Название

Примечание

Количество

-

65.05200-6034

IDLE GEAR ASS'Y

desc: BARBOTIN

1шт.

1

65.05204-0036

GEAR;IDLE

desc: . ENSEMBLE POMPE A HUILE

1шт.

2

06.31420-0314

BEARING;BALL #6006

desc: . PALIER

2шт.

3

06.29020-0132

RING;SNAP 55X2

desc: . BAGUE DE SOUTIEN

2шт.

4

65.05205-0018

PIN;IDLE GEAR

desc: . GOUPILLE

1шт.

5

06.22220-0905

PIN;SPIRAL LOCK 4X10

desc: . GOUPILLE

1шт.

5

06.22220-0905

PIN;SPIRAL LOCK 4X10

desc: . GOUPILLE

6

06.29010-0125

RING;SNAL 30X2

desc: . BAGUE DE SOUTIEN

1шт.

7

65.90030-0009

BOLT;SOCKET HEAD M10X60

desc: . BOULON A 6 PANS CREUX

1шт.

8

65.05100-6022

OIL PUMP ASS'Y

desc: POMPE A HUILE

1шт.

9

65.05201-0037

GEAR;OIL PUMP DRIVE

desc: . ENSEMBLE POMPE A HUILE

1шт.

10

65.05102-0014

HOUSING;OIL PUMP

desc: . BOITIER DE POMPE A HUILE

1шт.

11

65.05104-5004

GEAR;PUMP

desc: . PIGNON DE POMPE

1шт.

12

65.05104-5003

GEAR;PUMP

desc: . PIGNON DE POMPE

1шт.

13

64.05103-5012

OIL PUMP COVER ASS'Y(RR)

desc: . ENSEMBLE COUVERCLE POMPE A HUILE(AR)

1шт.

14

65.05103-5015

OIL PUMP COVER ASS'Y(FR)

desc: . ENSEMBLE COUVERCLE POMPE A HUILE(AV)

1шт.

15

06.22022-0909

PIN;DOWEL 6mX14

desc: . GOUPILLE

4шт.

15

06.22022-0909

PIN;DOWEL 6mX14

desc: . GOUPILLE

16

06.01013-9118

BOLT;HEX. M8X65

desc: . BOULON A 6 PANS

4шт.

17

65.90510-0012

NUT;LOCK

desc: . ECROU

4шт.

18

06.29141-0207

KEY;WOODRUFF 3X13X5

desc: . CLAVETTE

1шт.

19

06.16050-0311

WASHER;LOCK 15

desc: . RONDELLE

1шт.

20

06.11053-9217

NUT;HEX. M14X1.5

desc: . ECROU

1шт.

21

65.05410-0025

PLUNGER;VALVE

desc: . PLONGEUR

1шт.

22

65.97601-0110

SPRING;COMPRESSION

desc: . RESSORT

1шт.

23

65.90310-0104

SCREW;PLUG

desc: . VIS

1шт.

24

06.22022-0907

PIN;DOWEL 6m6X10

desc: GOUJON D'AJUSTAGE

2шт.

25

65.90801-0038

WASHER;LOCK

desc: RONDELLE FREIN

2шт.

26

06.01013-9215

BOLT;HEX. M10X50

desc: BOULON A 6 PANS

2шт.

Выбрано товаров: 29
