Запчасти Doosan Daewoo STEERING PIPING BODY PARTS

-

2400-4174

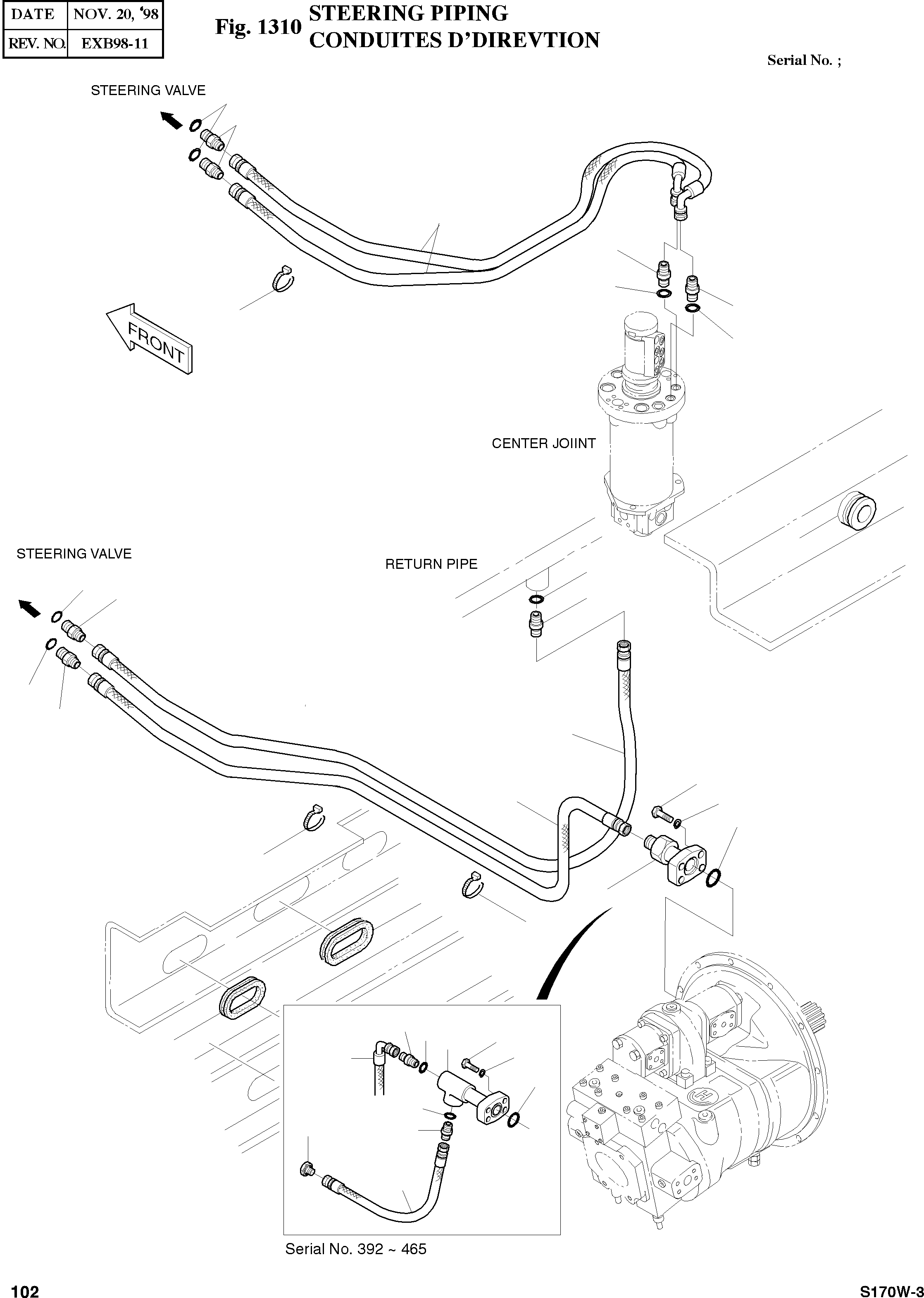

STEERING PIPING

desc: DIRECTION

-1шт.

1

2184-1026D281

HOSE(S-S) 1/2.3260L

desc: TUYAU FLEXIBLE

1шт.

2

2160-1201D1

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

2шт.

3

2160-1201D4

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

4шт.

4

2160-1201D5

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

1шт.

5

2124-1084D3

CLIP;BAND

SERIAL: 1-391

4шт.

5

2124-1084D3

CLIP;BAND

SERIAL: 392

6шт.

6

2181-1126D47

ADAPTER UNF03/4XPF1/2

desc: RACCORD ADAPTATEUR

2шт.

7

2180-1026D13

O-RING UNF3/4

desc: JOINT TORIQUE

4шт.

8

2181-1126D8

ADAPTER;S UNFO3/4.PF3/8

desc: RACCORD ADAPTATEUR

2шт.

9

S8000181

O-RING P18

SERIAL: 1-391

1шт.

9

S8000181

O-RING P18

SERIAL: 392-465

3шт.

9

S8000181

O-RING P18

SERIAL: 466

1шт.

10

2181-1126D6

ADAPTER;S PF.PFO1/2

SERIAL: 1-391

1шт.

10

2181-1126D6

ADAPTER;S PF.PFO1/2

SERIAL: 392-465

3шт.

10

2181-1126D6

ADAPTER;S PF.PFO1/2

SERIAL: 466

1шт.

11

2183-3800

PIPE

SERIAL: 1-391

1шт.

11

2193-1422

PIPE

SERIAL: 392-465

1шт.

11

2183-3800

PIPE

SERIAL: 466

1шт.

12

2180-1026D2

O-RING SAE3/4"

desc: JOINT TORIQUE

1шт.

13

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

14

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

4шт.

15

2181-1126D7

ADAPTER;S PF.PFO3/8

desc: RACCORD ADAPTATEUR

2шт.

16

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

18

2184-1036D223

HOSE;PF3/8-1900L

desc: TUYAU FLEXIBLE

2шт.

19

2184-1026D307

HOSE;PF1/2-2900L

SERIAL: 1-391

1шт.

19

2184-1036D264

HOSE PF1/2-3000L

SERIAL: 392-465

1шт.

19

2184-1026D307

HOSE PF1/2-2900L

SERIAL: 466

1шт.

20

2184-1026D159

HOSE PF1/2-900L

SERIAL: 392-465

1шт.

21

2181-2339D3

PLUG

SERIAL: 392-465

1шт.
