Запчасти Doosan Daewoo PILOT PIPING(9) BODY PARTS

-

2400-1598

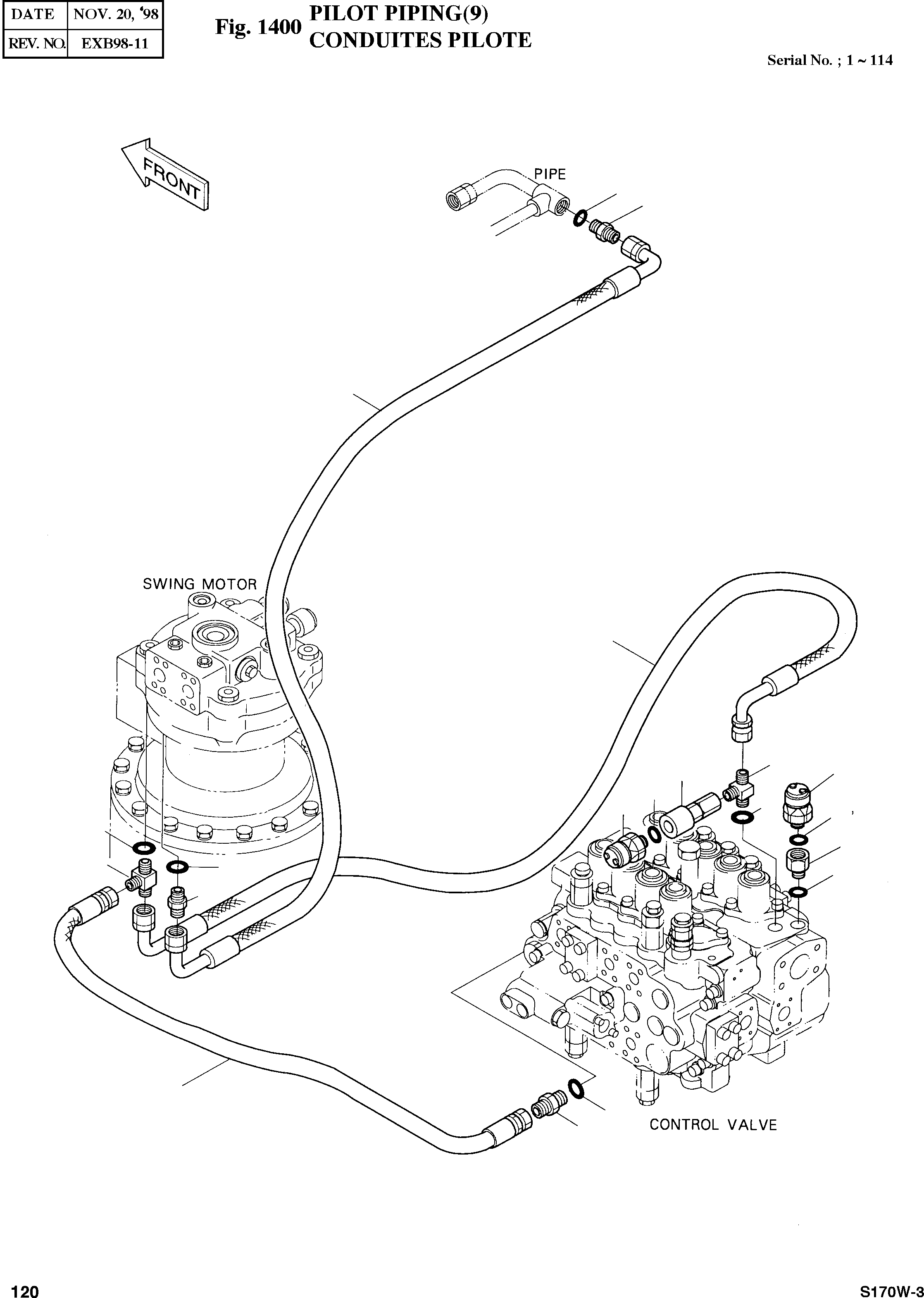

PILOT PIPING

SERIAL: 1-114

1шт.

10

S8000141

O-RING P14

REP_PNO: 8202-011

1шт.

11

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD ADAPTATEUR

2шт.

12

S8000111

O-RING P11

REP_PNO: 8202-009

6шт.

15

2184-1045D88

HOSE PF1/4-680L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1061D191

HOSE PF1/4-1350L

SERIAL: 1-20

1шт.

16

2184-1061D47

HOSE PF1/4-1100L

SERIAL: 21-50

1шт.

16

2184-1046D76

HOSE PF1/4-1200L

SERIAL: 51

1шт.

37

S8180221

PACKING PF1/4"

desc: RONDELLE D'ETANCHEITE

1шт.

52

2184-1061D69

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

67

2181-1126D36

ADAPTER PFO3/8. PF1/4

desc: RACCORD ADAPTATEUR

1шт.

71

2181-1951D1

TEE PFO. 2-PF1/4

desc: TE

2шт.

100

2181-4292

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

101

2549-1135D1

SWITCH;PRESSURE

desc: INTERRUPTEUR

2шт.

108

2181-2470

REDUCER PF1/4-M12

desc: REDUCTEUR

1шт.
