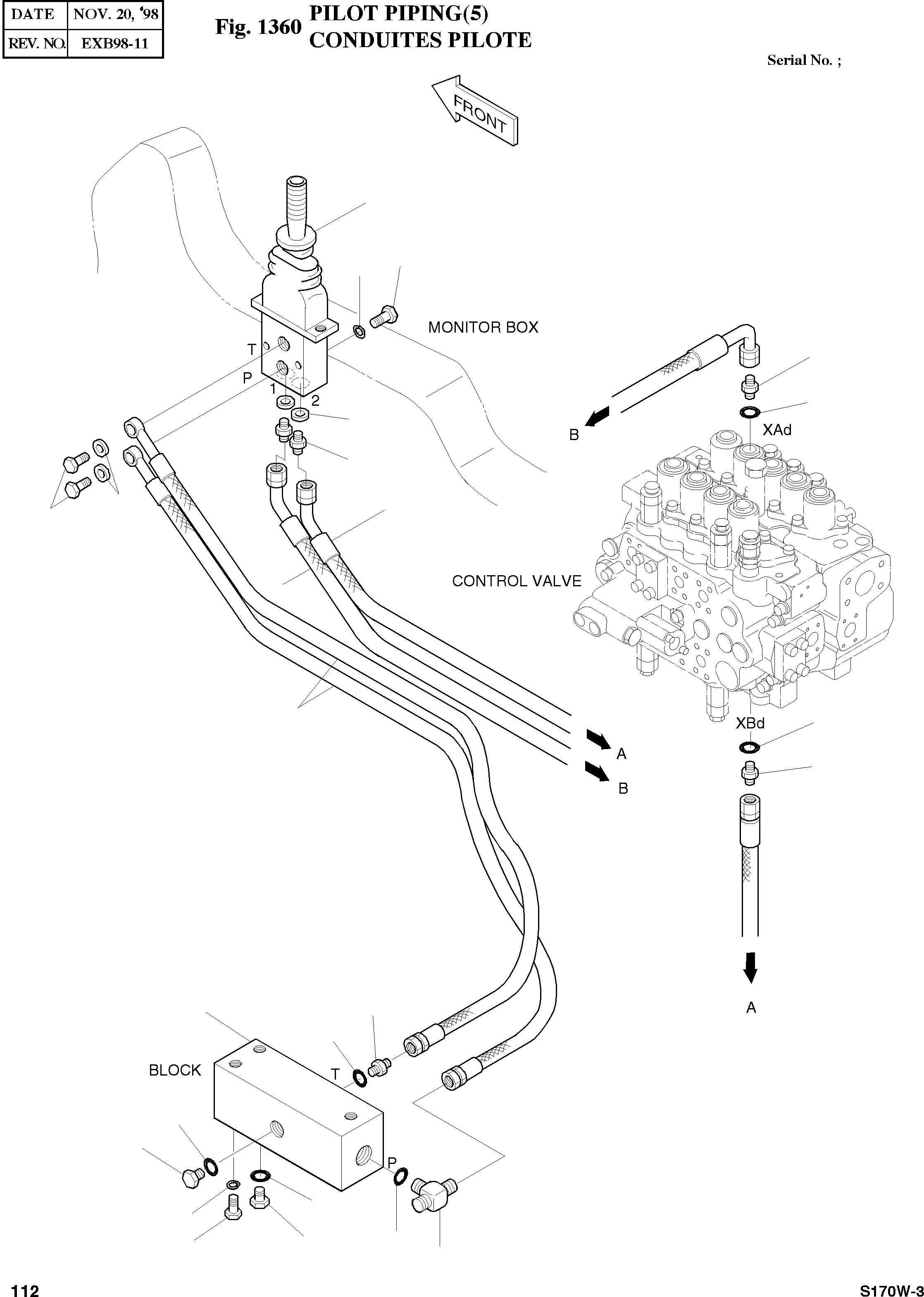

Запчасти Doosan Daewoo PILOT PIPING(5) BODY PARTS

-

2400-1598

PILOT PIPING

desc: CIRCUIT PILOTE

-2шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

11

2181-1126D14

ADAPTER PFO. PF1/4

desc: RACCORD ADAPTATEUR

3шт.

12

S8000111

O-RING P11

REP_PNO: 8202-009

6шт.

27

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

32

2420-9411

VALVE;DOZER REMOCON

desc: VANNE

1шт.

33

S0556253

BOLT M8X1.25X45

desc: BOULON A 6 PANS

2шт.

34

2184-9081

HOSE(S-BANJO)1/4-1400L

desc: TUYAU FLEXIBLE

2шт.

35

2120-1475

BOLT;HOLLOW PF1/4

desc: BOULON A 6 PANS

2шт.

36

2181-1917D4

ADAPTER;S PF1/4. 1/4

desc: RACCORD ADAPTATEUR

2шт.

37

S8180221

PACKING PF1/4"

desc: RONDELLE D'ETANCHEITE

4шт.

57

2181-1950D1

PLUG PFO 1/4

desc: BOUCHON

2шт.

69

2423-1330

BLOCK

desc: BLOC

1шт.

70

S2205661

BOLT;SOCKET M6X1.0X50

desc: BOULON A 6 PANS CREUX

3шт.

71

2181-1951D1

TEE PFO. 2-PF1/4

desc: TE

1шт.

95

2184-1060D99

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

99

2184-1062D44

HOSE PF1/4-3000L

desc: TUYAU FLEXIBLE

1шт.
