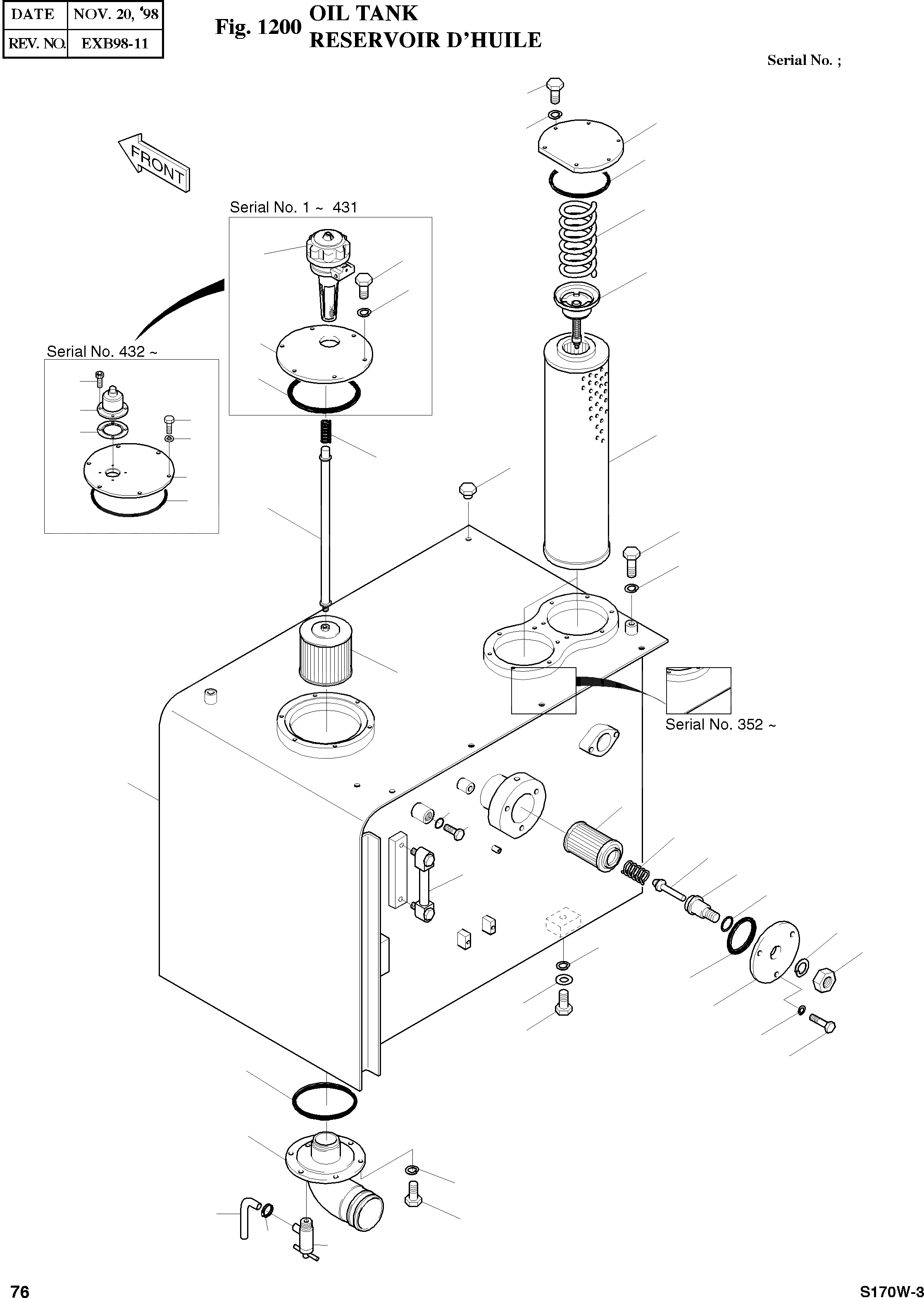

Запчасти Doosan Daewoo OIL TANK BODY PARTS

-

2470-4042

OIL TANK ASS'Y

SC: D

-2шт.

1

2470-4043A

OIL TANK

SERIAL: 1-10

1шт.

1

2470-4043B

OIL TANK

SERIAL: 11-106

1шт.

1

2470-4043C

OIL TANK

SERIAL: 107-351

1шт.

1

2470-4043E

OIL TANK

SERIAL: 352

1шт.

1

2470-4043G

OIL TANK

SERIAL: 352

1шт.

2

2474-9003B

ELEMENT;FILTER

desc: ELEMENT FILTRANT

2шт.

3

2426-9009

VALVE;BY-PASS

desc: CLAPET DE DERIVATION

2шт.

4

2129-1038

SPRING

desc: RESSORT

2шт.

5

S8011350

O-RING

desc: JOINT TORIQUE

2шт.

6

2473-4002

COVER

desc: COUVERCLE

2шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

24шт.

8

S0512053

BOLT M10X1.5X25

SERIAL: 1-431

24шт.

8

S0512053

BOLT M10X1.5X25

SERIAL: 432

18шт.

9

S8011650

O-RING G165

desc: JOINT TORIQUE G165

2шт.

10

2193-4047A

PIPE

desc: CONDUITE

1шт.

11

2474-9016A

FILTER;SUCTION

desc: FILTRE A ASPIRATION

1шт.

12

2136-4034

ROD

desc: TIGE

1шт.

13

2129-1008

SPRING;COMPRESS

desc: RESSORT DE COMPRESSION

2шт.

14

2473-4001

COVER

SERIAL: 1-431

1шт.

14

2473-4001A

COVER

SERIAL: 432-468

1шт.

14

2473-4001B

COVER

SERIAL: 469

1шт.

15

2186-9001

COCK

desc: ROBINET

1шт.

16

S5010913

WASHER;PLAIN M16

desc: RONDELLE PLATE M16

4шт.

17

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

4шт.

18

S0521451

BOLT M16X2.0X40

desc: BOULON A 6 PANS

4шт.

19

S8000111

O-RING P11

desc: JOINT TORIQUE

1шт.

20

2181-1950D1

PLUG PFO 1/4

desc: BOUCHON

1шт.

22

2422-9013

BREATHER;AIR

SERIAL: 1-431

1шт.

22

REP_PNO: 2473-4001A

-1шт.

22

REP_PNO: 2180-9187

-1шт.

22

REP_PNO: S2202961

-1шт.

22

2422-9027

BREATHER;AIR

SERIAL: 432

1шт.

23

2181-1116D2

PLUG PT1/4

desc: BOUCHON PT1/4

2шт.

24

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

5шт.

25

S0514653

BOLT M12X1.75X16

desc: BOULON A 6 PANS

2шт.

26

2474-1001

ELEMENT;DRAIN

desc: ELEMENT FILTRANT

1шт.

27

2426-1001

VALVE L85

desc: VANNE

1шт.

28

S8000180

O-RING P18

desc: JOINT TORIQUE

1шт.

29

S8010850

O-RING G85

desc: JOINT TORIQUE G85

1шт.

30

2181-1019A

COVER

desc: COUVERCLE

1шт.

31

2427-1001

SEAT;VALVE

desc: SIEGE DE VALVE

1шт.

32

S5103001

WASHER;SPRING M18

desc: RONDELLE ELASTIQUE

1шт.

33

S4033033

NUT M18X1.5

desc: ECROU

1шт.

34

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

3шт.

35

2119-1007

GAUGE;LEVEL

desc: JAUGE

1шт.

36

2184-9089

HOSE;VINYL Ґх9

SERIAL: 342

1шт.

37

S8450006

CLAMP;HOSE

SERIAL: 342

1шт.

38

2180-9187

GASKET

SERIAL: 432

1шт.

39

S2202961

BOLT;SOCKET M5X0.8X12

SERIAL: 432

4шт.

40

S0512253

BOLT M10X1.5X30

SERIAL: 432

6шт.
