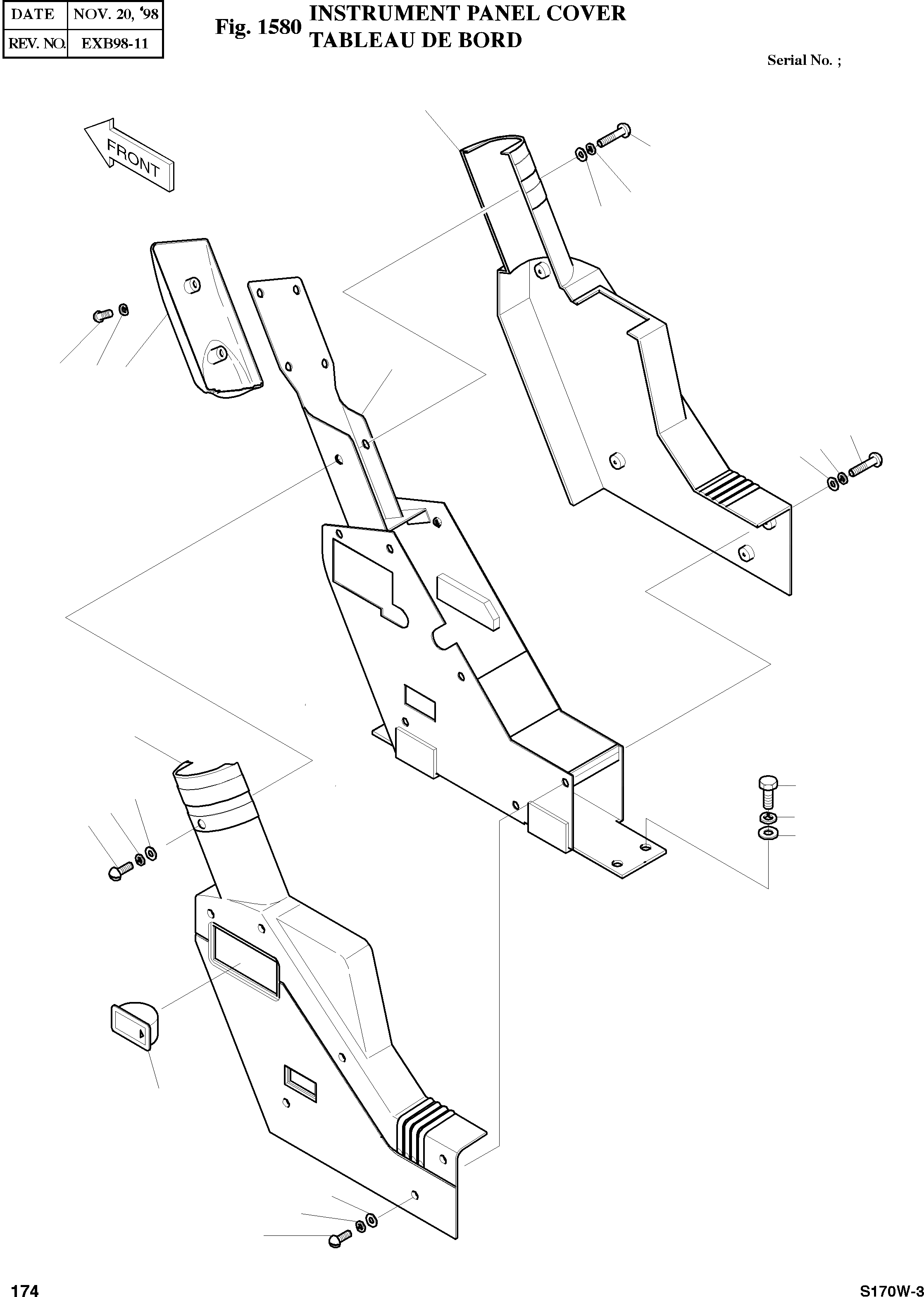

Запчасти Doosan Daewoo INSTRUMENT PANEL COVER BODY PARTS

-

2195-3784

CONTROL STAND ASS'Y

desc: CONSOLE DE COMMANDE

1шт.

4

2195-3680A

BRACKET

desc: SUPPORT

1шт.

5

2621-2679

COVER;BRACKET(L)

SERIAL: 1-93

1шт.

5

2621-2679A

COVER;BRACKET(L)

SERIAL: 94

1шт.

6

2621-2678

COVER;BRACKET(R)

desc: COUVERCLE

1шт.

19

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

4шт.

20

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

21

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

4шт.

23

S3450573

SCREW M4X0.7X10

desc: VIS

2шт.

24

S5000113

WASHER;PLAIN M4

desc: RONDELLE PLATE

2шт.

25

S3458843

SCREW M5X0.8X14

desc: VIS

12шт.

26

S5000213

WASHER;PLAIN M5

desc: RONDELLE PLATE

12шт.

27

S5102203

WASHER;SPRING M5

desc: RONDELLE ELASTIQUE

12шт.

28

2906-9004

ASHTRAY

desc: CENDRIER

1шт.

40

S3458583

SCREW M4X0.7X12

desc: VIS

2шт.

41

S5102103

WASHER;SPRING M4

desc: RONDELLE ELASTIQUE

4шт.

43

2621-2738

COVER;LOWER

desc: COUVERCLE

1шт.
