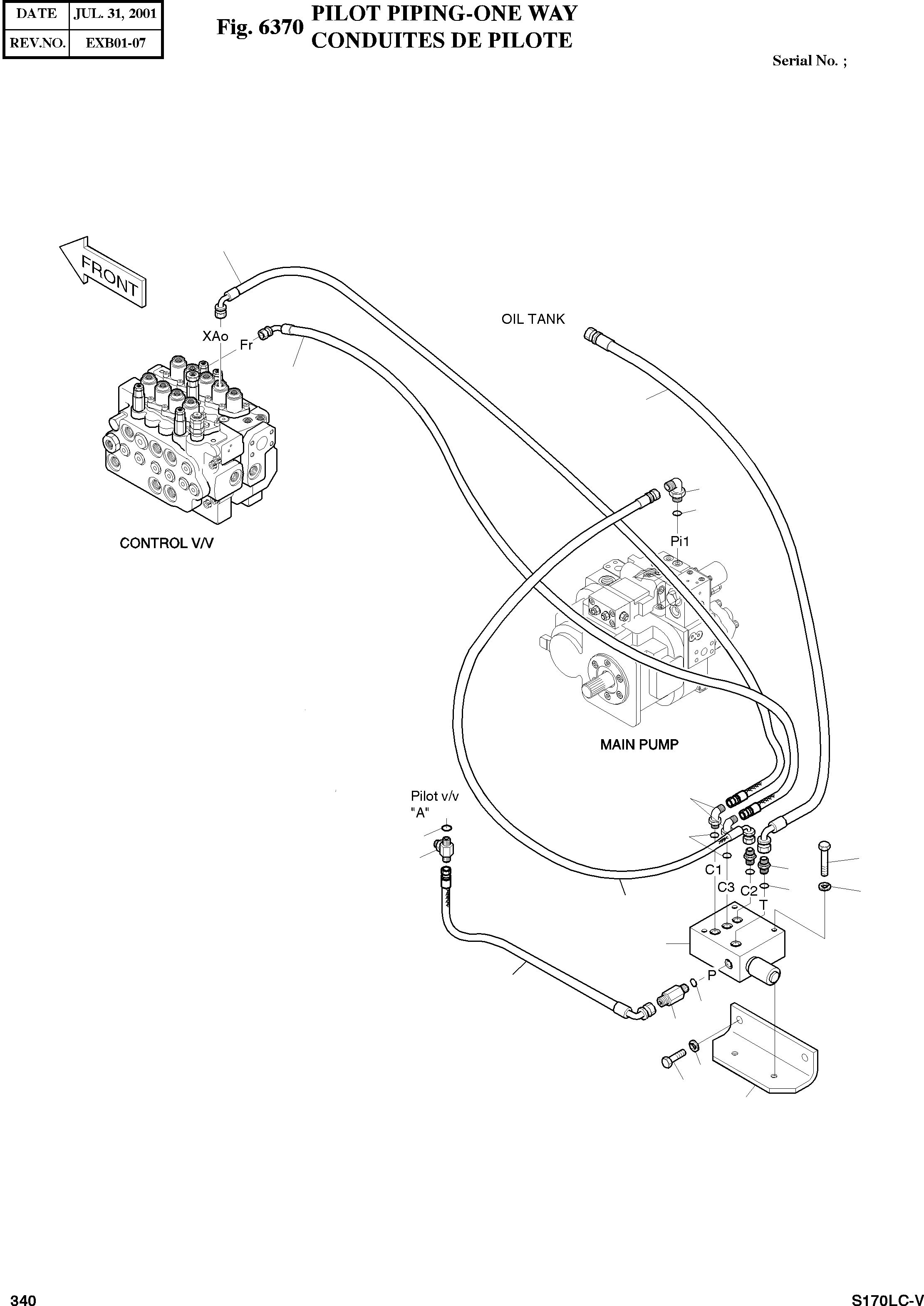

Запчасти Doosan Daewoo PILOT PIPING-ONE WAY OPTION PARTS

-

400-00439

PILOT PIPING-ONE WAY

SC: D

-2шт.

1

2420-9227A

VALVE;PACKAGE

desc: SOUPAPE A SOLENOIDE

1шт.

2

2891-1403

BRACKET

desc: SUPPORT

1шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

4

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

5

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

6

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

7

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

8

2181-1126D34

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

9

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

10

2181-1702D56

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

11

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

12

2181-2375D5

TEE

desc: TE

1шт.

13

2184-1046D94

HOSE PF1/4-780L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1046D196

HOSE PF1/4-1550L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1046D49

HOSE PF1/4-1020L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1046D117

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.
