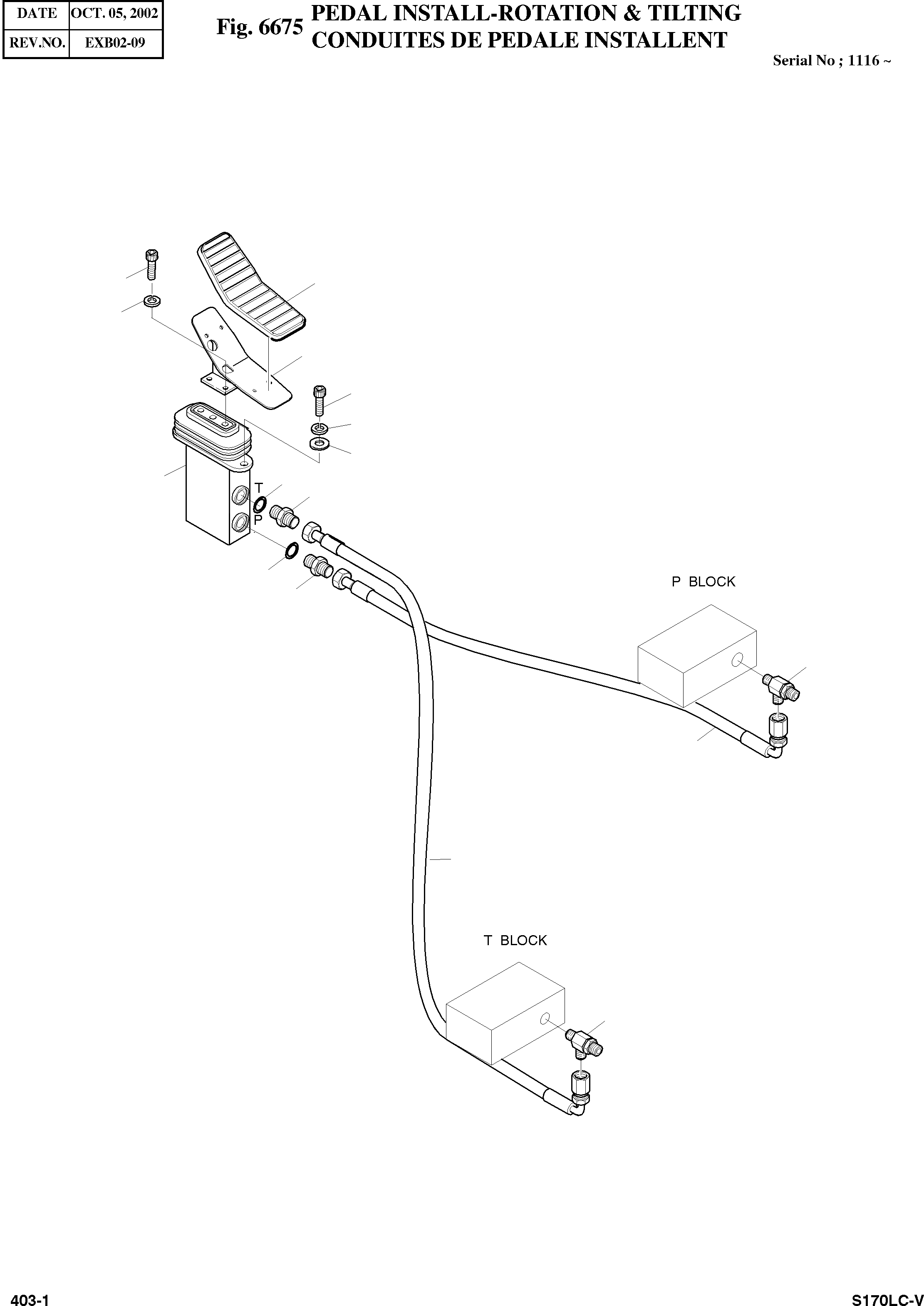

Запчасти Doosan Daewoo PEDAL INSTALL-ROTATION & TILTING OPTION PARTS

-

134-00023

PEDAL INSTALL-ROTATION & TILTING

SC: D

-2шт.

1

420-00347

VALVE;PEDAL

desc: VANNE

1шт.

2

2184-1046D55

HOSE PF1/4-530L

desc: TUYAU FLEXIBLE

1шт.

3

2184-1046D166

HOSE PF1/4-370L

desc: TUYAU FLEXIBLE

1шт.

4

2181-1951D19

TEE PF01/2XPF1/2XPF1/4

desc: TE

1шт.

5

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

2шт.

6

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

7

S5010613

WASHER;PLAIN

desc: RONDELLE

2шт.

8

S2211866

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

2шт.

9

2197-1818

BRACKET;PEDAL(R.H)

desc: SUPPORT

1шт.

10

2161-2257

RUBBER;PEDAL

desc: CAOUTCHOUC

1шт.

11

2181-1126D14

ADAPTER;S PFO-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

12

S8000111

O-RING

desc: JOINT TORIQUE

2шт.

13

2181-1951D6

TEE

desc: TE

1шт.
