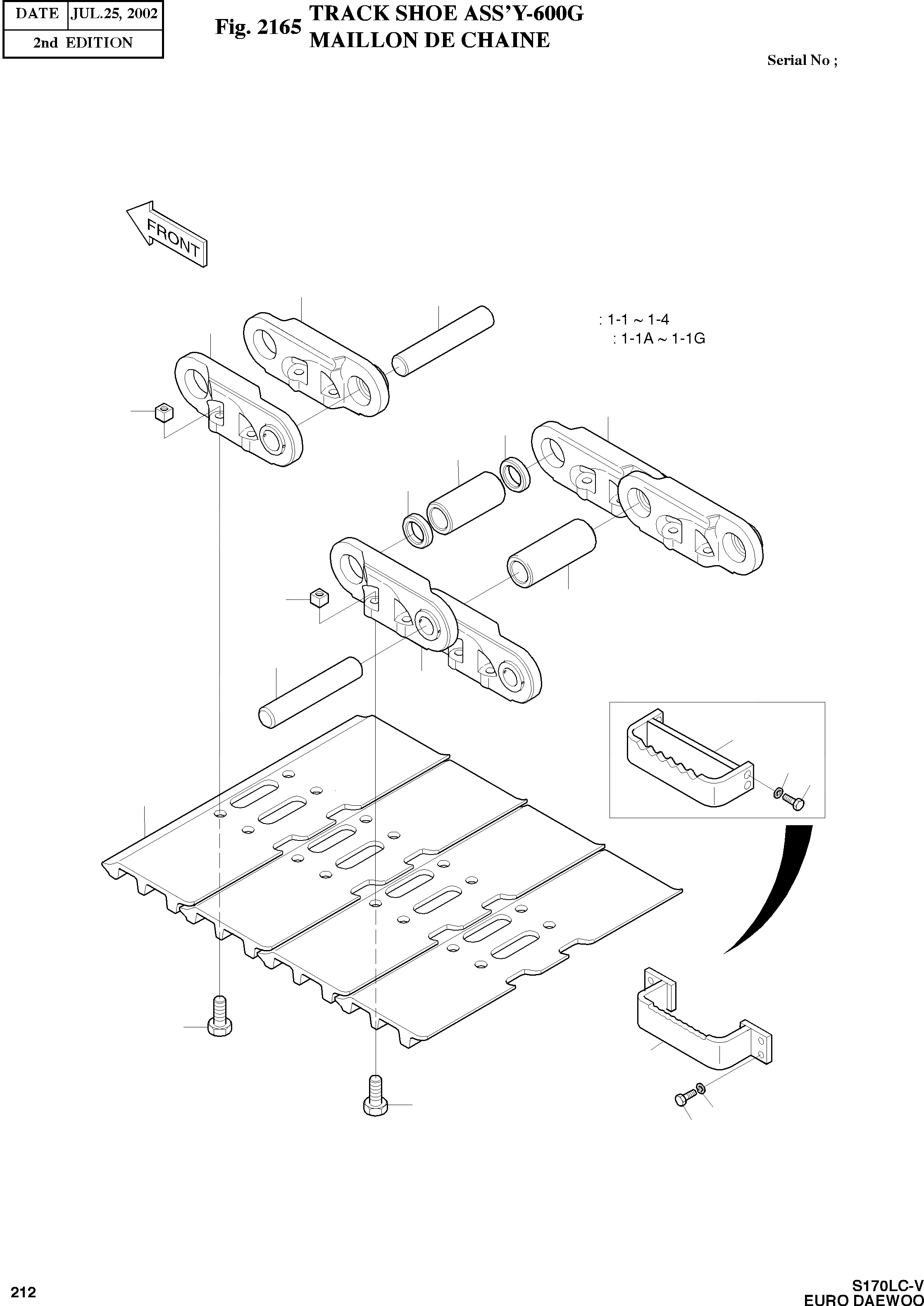

Запчасти Doosan Daewoo TRACK SHOE ASSY-600G TRACK PARTS

-

9273-7025

TRACK SHOE ASS'Y

SC: D

-2шт.

1

9273-6010D2

TRACK SHOE ASS'Y-600G

desc: MAILLON DE CHAINE

2шт.

1-1

9272-6006

LINK ASS'Y

desc: . PIECE DE JONCTION

1шт.

1-1A

9272-6008

LINK;TRACK(R.H)

desc: .. PIECE DE JONCTION

49шт.

1-1B

9272-6007

LINK;TRACK(L.H)

desc: .. PIECE DE JONCTION

49шт.

1-1C

9110-6001

BUSHING

desc: .. DOUILLE

48шт.

1-1D

9110-6002

BUSHING;MASTER

desc: .. DOUILLE PRINCIPALE

1шт.

1-1E

9123-6001

PIN

desc: .. GOUPILLE

48шт.

1-1F

9123-6002

PIN;MASTER

desc: .. BROCHE PRINCIPALE

1шт.

1-1G

9114-6001

SPACER

desc: .. BAGUE D'ECARTEMENT

2шт.

1-2

9272-6005

SHOE;TRACK

desc: . PATIN

49шт.

1-3

9120-6006D12

BOLT

desc: . BOULON A 6 PANS

196шт.

1-4

9121-6005

NUT

desc: . ECROU HEXAGONAL

196шт.

2

2195-2527D1

BRACKET

desc: SUPPORT

4шт.

2

2195-2527AD1

BRACKET

desc: SUPPORT

4шт.

3

S0558253

BOLT M1X1.5X35

desc: BOULON A 6 PANS

16шт.

3

S0515353

BOLT M1X1.5X35

desc: BOULON A 6 PANS

16шт.

4

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

16шт.

4

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

16шт.
