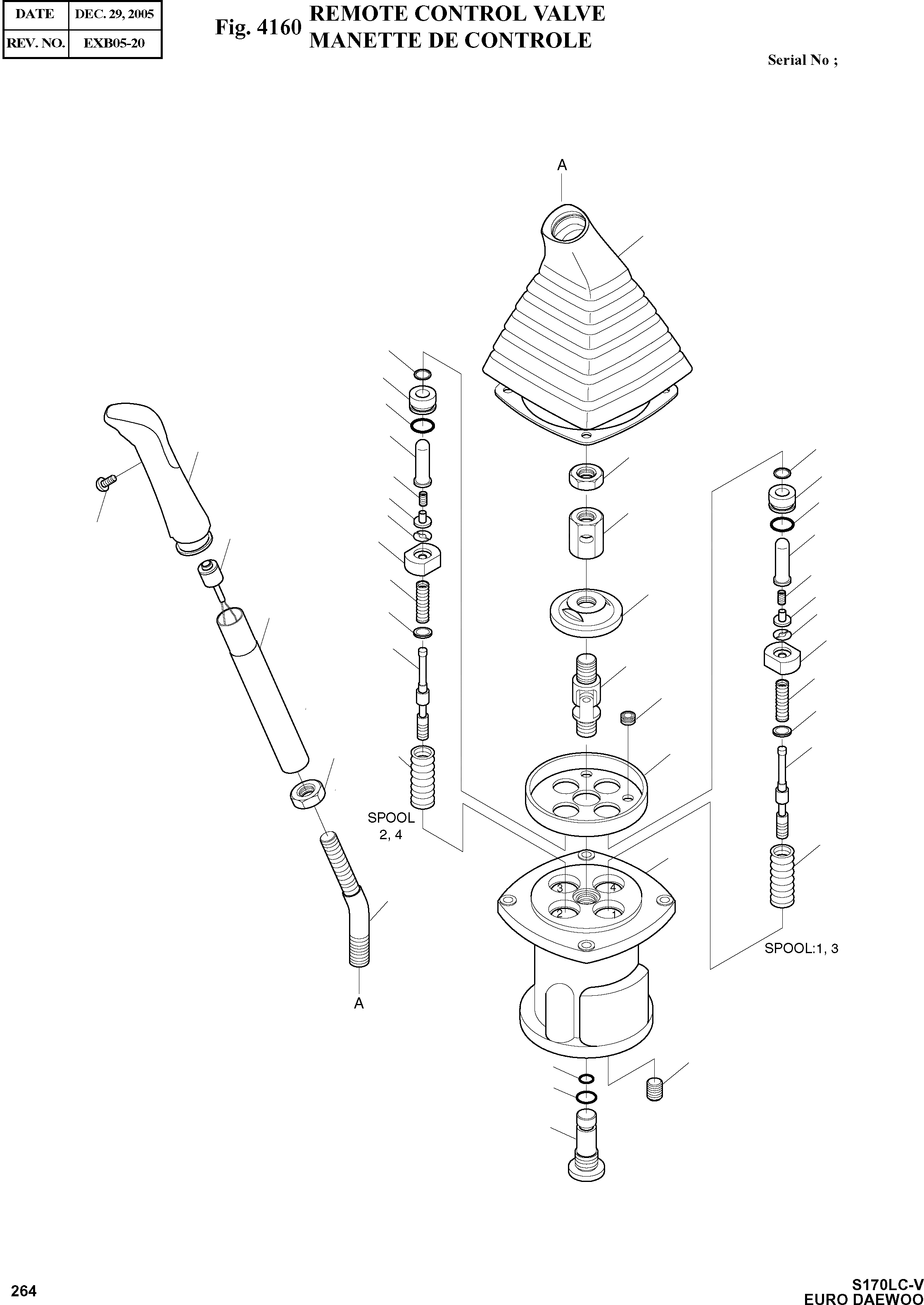

Запчасти Doosan Daewoo REMOTE CONTROL VALVE HYDRAULIC PARTS

-

420-00237

REMOTE CONTROL VALVE(L.H.)

desc: MANETTE DE CONTROLE

1шт.

-

420-00238

REMOTE CONTROL VALVE(R.H.)

desc: MANETTE DE CONTROLE

1шт.

1

J95C1001

CASE

desc: CARTER

1шт.

2

WPT18

PLUG

desc: BOUCHON

1шт.

3

J95C1002

PLUG

desc: BOUCHON

1шт.

4

P0010A

O-RING

desc: JOINT TORIQUE

1шт.

5

P0014

O-RING

desc: JOINT TORIQUE

1шт.

6

J95C1003

SPOOL

desc: BOBINE

1шт.

7

J95C1004

SHIM

SC: R

1шт.

8

JA0D3001

SPRING(1 . 3)

desc: RESSORT

2шт.

9

JA0D3002

SEAT;SPRING(1 . 3)

desc: SIEGE

2шт.

10

J95C1007

SPRING

desc: RESSORT

4шт.

11

JA0D3003

STOPPER

desc: ARRET

4шт.

12

J97A5011

STOPPER(1 . 3)

desc: ARRET

2шт.

13

JA0D3004

SPRING

desc: RESSORT

4шт.

14

JA0D3005

ROD;PUSH

desc: TIGE DE POUSSOIR

4шт.

15

JA0D3006

SPRING(2 . 4)

desc: RESSORT

2шт.

16

JA0D3007

SEAT;SPRING(2 . 4)

desc: SIEGE

2шт.

17

J97A5012

STOPPER(2 . 4)

desc: ARRET

2шт.

18

JA0D3008

PLUG

desc: BOUCHON

4шт.

19

P0020

O-RING

desc: JOINT TORIQUE

4шт.

20

RSY12

SEAL;ROD

desc: TIGE D'ETANCHEITE

1шт.

21

J95C1010

PLATE

desc: PLAQUE

1шт.

22

J95C1011

BUSHING

desc: DOUILLE

1шт.

23

J95C1012

JOINT ASS'Y

desc: ENSEMBLE DE JOINT

1шт.

24

J95C1013

PLATE;SWASH

desc: PLAQUE

1шт.

25

J95C1014

NUT;HEX

desc: ECROU

1шт.

26

HNM14-1

NUT;HEX

desc: ECROU

1шт.

*

J97A1006LK

JOYSTICK SUB ASS'Y(L.H)

desc: TRAINTEMENT

1шт.

*

J97A1006RK

JOYSTICK SUB ASS'Y(R.H)

desc: TRAINTEMENT

1шт.

27

J97A1001

CONNECTOR

desc: . RACCORD

1шт.

28

J97A1003

BOOT(L.H)

desc: . GAINE DE PROTECTION

1шт.

28

J97A1002

BOOT(R.H)

desc: . GAINE DE PROTECTION

1шт.

29

HNM12-1

NUT;HEX

desc: . ECROU

1шт.

30

J97A1004

SWITCH ASS'Y

desc: . INTERRUPTEUR

1шт.

31

J97A1005

INSERT

SC: D

1шт.

32

J97A1006

HANDLE ASS'Y

desc: . HANDLE ASS'Y

1шт.

33

SAM103

SCREW

desc: . VIS

1шт.
