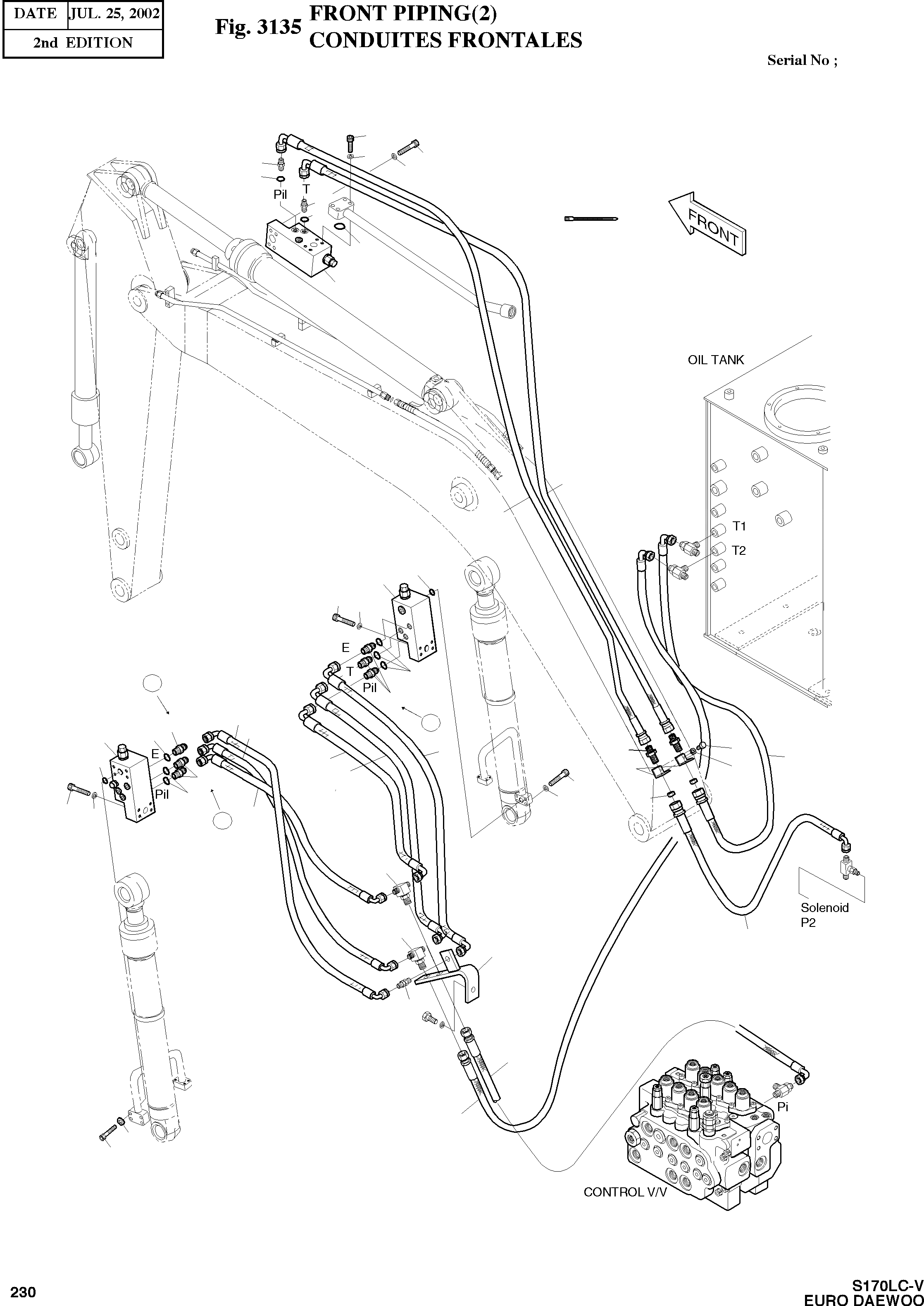

Запчасти Doosan Daewoo FRONT PIPING(2) FRONT PARTS

-

9400-1075

FRONT PIPING(2)

SC: D

-2шт.

19

S5102703

WASHER;SPRING M12

desc: RONDELLE GROWER M12

2шт.

28

9420-6018A

VALVE;LOCK

desc: CLAPET DE SECURITE PF3/4

3шт.

29

S2212661

BOLT;SOCKET M10x1.5x50

SERIAL: 1-50260

20шт.

29

S2212666

BOLT;SOCKET M10x1.5x50

SERIAL: 50261

20шт.

30

S5110611

WASHER;SPRING

SERIAL: 1-50260

24шт.

30

S5110613

WASHER;SPRING

SERIAL: 50261

24шт.

31

S8000281

O-RING

desc: JOINT TORIQUE

3шт.

32

181-00078D5

ADAPTER PF1/4-PF3/8

desc: ADAPTATEUR

2шт.

33

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

34

197-00020

BRACKET

desc: SUPPORT

2шт.

36

181-00020

ADAPTER PF1/4-PF1/4

desc: ADAPTATEUR

1шт.

37

197-00022

SUPPORT

desc: SUPPORT

1шт.

38

2181-1126D14

ADAPTER PF1/4-PF1/4

SERIAL: 1-50160

2шт.

38

2181-1126D14

ADAPTER PF1/4-PF1/4

SERIAL: 50161

8шт.

39

181-00008

TEE PF1/4-PF1/4-PF3/8

desc: TE

2шт.

40

2181-1126D38

ADAPTER PF1/4-PF1/4

SERIAL: 1-50160

6шт.

41

S8000111

O-RING

desc: JOINT TORIQUE 1/4

8шт.

42

2124-1622D2

CLIP;BAND

desc: ATTACHE

25шт.

45

2184-1076D147

HOSE 1/4-750L

desc: FLEXIBLE

2шт.

46

2184-1062D84

HOSE 1/4-750L

desc: FLEXIBLE

2шт.

47

2184-1062D85

HOSE 1/4-700L

desc: FLEXIBLE

2шт.

48

2184-1046D260

HOSE 1/4-4740L

desc: FLEXIBLE

2шт.

49

2184-1046D275

HOSE 3/8-1650L

desc: FLEXIBLE

1шт.

50

2184-1060D145

HOSE 3/8-1700L

desc: FLEXIBLE

1шт.

51

2184-1046D295

HOSE 3/8-1450L

desc: FLEXIBLE

1шт.

52

2184-1060D79

HOSE 3/8-1450L

desc: FLEXIBLE

1шт.

54

121-00010D1

NUT

desc: ECROU

2шт.

55

S2212861

BOLT; SOCKET M10X1.5X60

SERIAL: 1-50260

4шт.

55

S2212866

BOLT; SOCKET M10X1.5X60

SERIAL: 50261

4шт.
