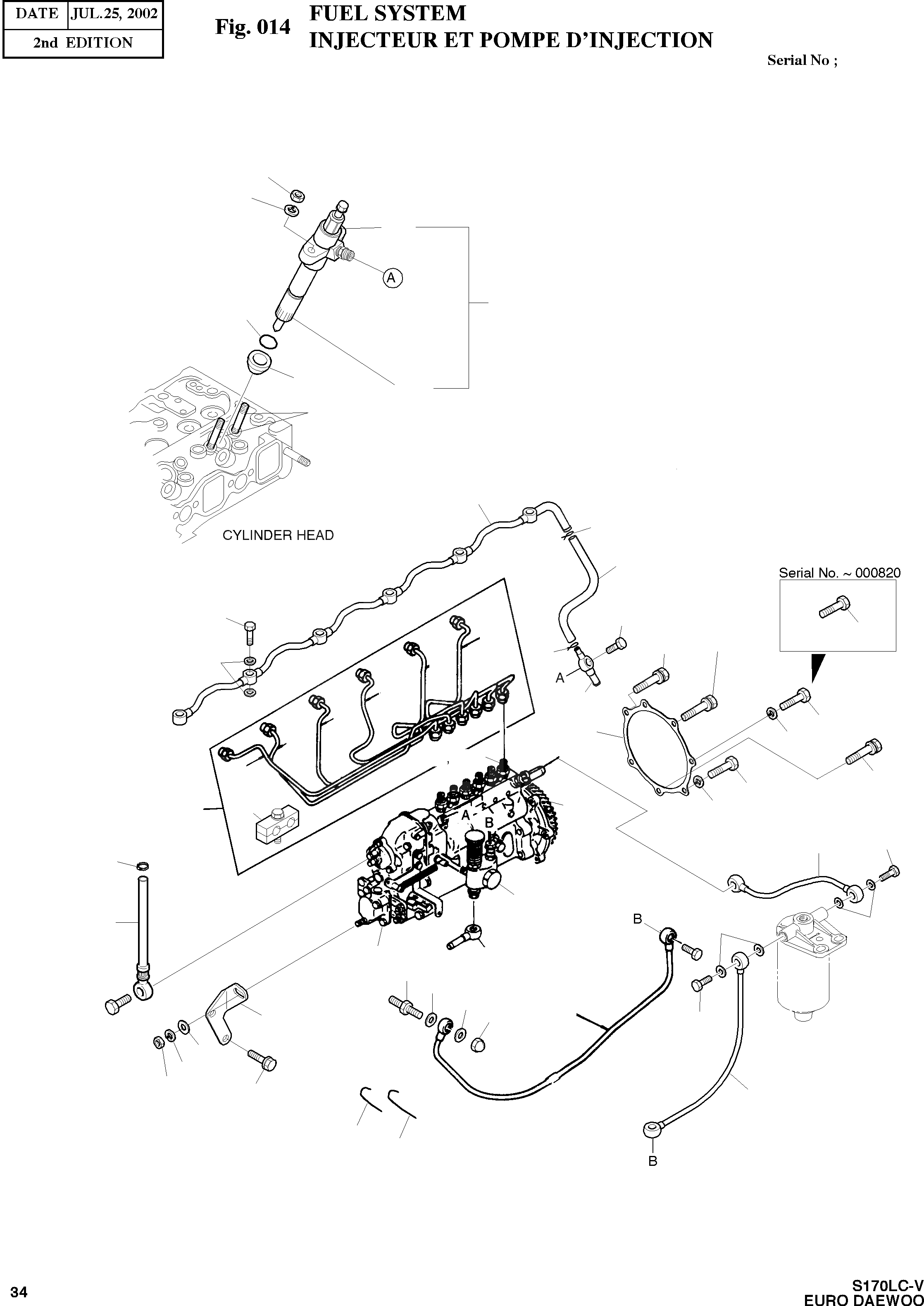

Запчасти Doosan Daewoo FUEL SYSTEM ENGINE PARTS

101

65.10101-7295

NOZZLE HOLDER ASS'Y

desc: BEC SUPPORT

6шт.

102

65.10102-6044

TIP;NOZZLE

desc: . BEC

1шт.

103

65.10101-6021

HOLDER;NOZZLE

desc: . SUPPORT DE BEC

1шт.

104

65.96507-0004

RING;SEAL

desc: BAGUE D'ETANCHEITE

6шт.

106

65.96507-0046

RING;SEAL

desc: BAGUE D'ETANCHEITE

6шт.

108

06.06125-8711

BOLT;STUD

SERIAL: 011201

12шт.

108

65.90201-0099

BOLT;STUD

SERIAL: 011202

12шт.

109

06.11063-8214

NUT;HEX. M8

desc: ECROU 6 PANS M8

12шт.

110

06.16731-2107

WASHER

desc: RONDELLE ELASTIQUE

12шт.

201

65.10301-6289

PRESSURE PIPE ASS'Y

desc: PIPE DE PRESSION

1шт.

202

65.10301-5275

PIPE;INJECTION(1 CYLINDER)

SC: D

1шт.

203

65.10301-5276

PIPE;INJECTION(2 CYLINDER)

SC: D

1шт.

204

65.10301-5277

PIPE;INJECTION(3 CYLINDER)

SC: D

1шт.

205

65.10301-5278

PIPE;INJECTION(4 CYLINDER)

SC: D

1шт.

206

65.10301-5279

PIPE;INJECTION(5 CYLINDER)

SC: D

1шт.

207

65.10301-5280

PIPE;INJECTION(6 CYLINDER)

SC: D

1шт.

208

65.97401-6008

PIPE CLIP ASS'Y

desc: . ATTACHE

5шт.

301

65.11101-7663

PUMP;INJECTION

desc: POMPE D'CINJECTION

1шт.

301A

105220-6410

FEED PUMP

desc: . POMPE

1шт.

301B

31151-322S

PLUNGER

desc: . POMPE

6шт.

301C

65.11108-0010

VALVE DELIVERY

desc: . POMPE

1шт.

301D

131424-1520

VALVE OVERFLOW

desc: . POMPE

1шт.

301E

156636-9020

COUPLING

desc: . POMPE

1шт.

303

65.11596-0001

WIRE;SEAL

desc: FIL

3шт.

304

65.11596-0002

WIRE;SEAL

desc: FIL

1шт.

306

65.08301-6008

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

307

06.67020-0101

CLAMP

desc: COLLIER

1шт.

308

65.05701-5200

PIPE;OIL

desc: CONDUITE

1шт.

309

65.98155-0011

UNION;HOLLOW

desc: GRAISSEUR

1шт.

310

06.12172-9314

NUT;CAP

desc: CHAPEAU DE ECROU

1шт.

311

06.56180-0714

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

401

06.01913-3122

BOLT ASS'Y M8X55

desc: BOULON A 6 PANS

1шт.

402

06.01913-3124

BOLT ASS'Y M8X65

desc: BOULON A 6 PANS

4шт.

403

06.01283-7126

BOLT ASS'Y

SERIAL: 000820

1шт.

404

06.01283-7128

BOLT;HEX. M8X85

SERIAL: 000820

1шт.

404

06.01283-7128

BOLT;HEX. M8X85

SERIAL: 000821

2шт.

405

06.16731-2107

WASHER;SPRING

SERIAL: 000821

2шт.

406

65.11401-0002C

BRACKET;REAR

desc: SUPPORT

1шт.

407

06.01953-3213

BOLT ASS'Y M10X1.25X20

desc: BOULON A 6 PANS

2шт.

408

06.15010-2312

WASHER;PLAIN

desc: RONDELLE

1шт.

409

06.11063-9215

NUT M10X1.25

desc: ECROU

1шт.

410

06.16731-2108

WASHER;SPRING

desc: RONDELLE

1шт.

411

65.11902A0001

GASKET;INJECTION PUMP

desc: JOINT

1шт.

501

65.12301-5022

PIPE;FUEL(RETURN)

desc: CANALISATION DE GAZOLE

1шт.

502

65.96341-0100

HOSE;FUEL

desc: TUYAU A GAZOLE

2шт.

503

06.78144-2204

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

504

65.96507-0043

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

505

06.78144-2204

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

506

65.96507-0043

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

507

65.12301-5824

PIPE;FUEL

desc: CONDUITES

1шт.

508

65.98150-0015B

SCREW;HOLLOW

desc: VIS CREUSE

6шт.

509

06.56180-0712

RING;SEAL A8X14

desc: BAGUE D'ETANCHEITE

12шт.

510

65.12301-5825

PIPE;FUEL(RETURN)

desc: CONDUITES

1шт.

511

65.96301-0176

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

512

65.97401-0089

CLIP

desc: CLIP

2шт.
