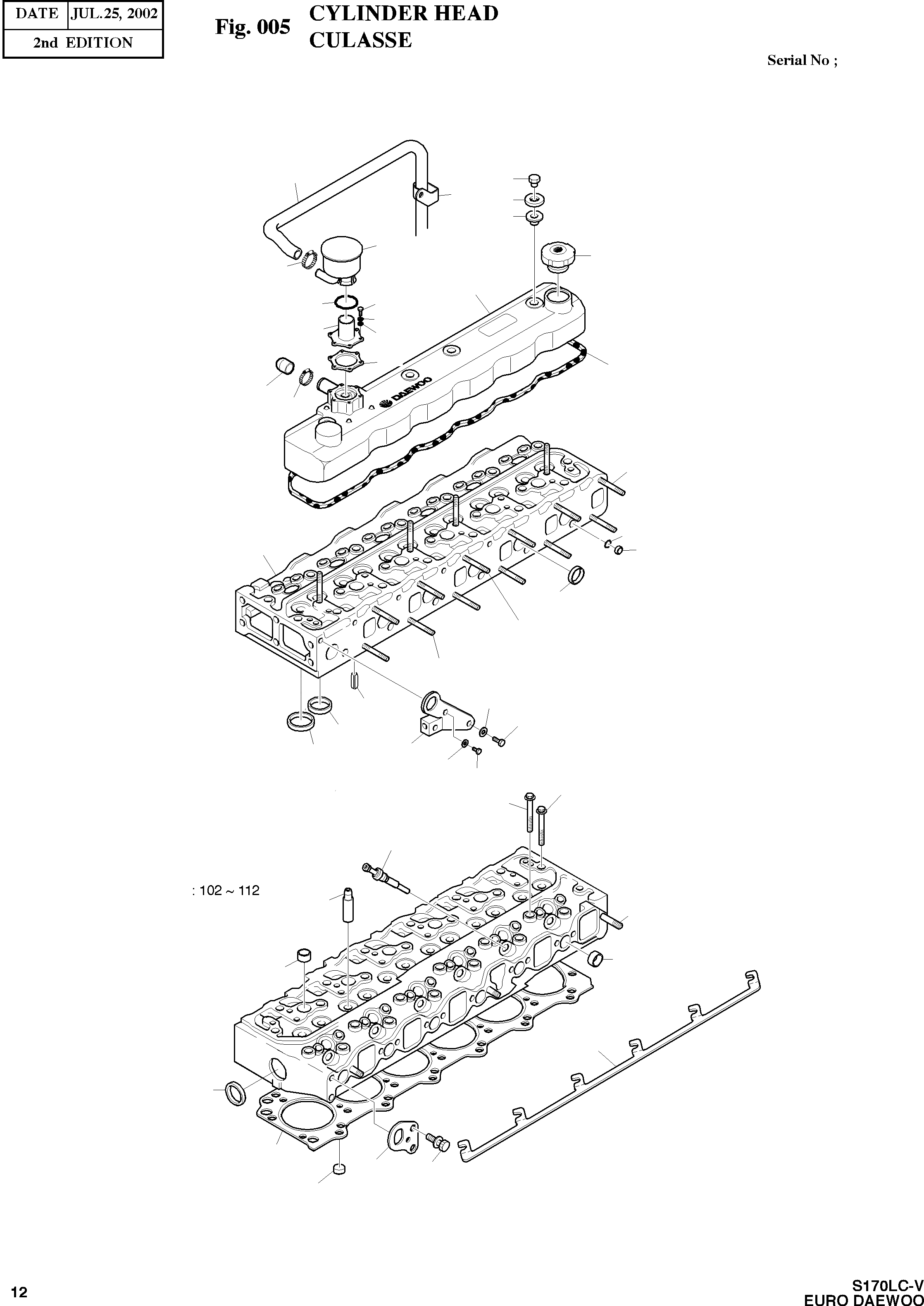

Запчасти Doosan Daewoo CYLINDER HEAD ENGINE PARTS

101

65.03101-6049

CYLINDER HEAD ASS'Y

desc: ENSEMBLE CULASSE

1шт.

102

65.03101-1043

HEAD;CYLINDER

SC: D

1шт.

104

65.03201-1013

GUIDE;VALVE

SC: B

12шт.

105

65.03203-1020

SEAT;EXHAUST VALVE

SC: B

6шт.

106

65.03203-1019

SEAT;INLET VALVE

SC: B

6шт.

107

65.90302-0015

PLUG;CORE(NEAR FACE)

desc: . BOUCHON

1шт.

108

65.90302-0016

PLUG;CORE(EXHAUST MAIN)

desc: . BOUCHON

3шт.

109

65.90302-0019B

PLUG;CORE

desc: . COUPELLE

11шт.

110

06.15090-2313

PLUG;CORE

desc: . BOUCHON

3шт.

111

06.15090-2305

PLUG;CORE

desc: . BOUCHON

6шт.

112

65.90302-0011

PLUG;DRILLED PASS

desc: . BOUCHON

6шт.

113

65.90302-0017

PLUG;WATER JET CORE

desc: BOUCHON

6шт.

116

06.06225-0706

BOLT;STUD

desc: GOUJON

3шт.

117

06.06125-8717

BOLT;STUD

desc: GOUJON

10шт.

118

06.06125-8709

BOLT;STUD

desc: GOUJON M12X1.25X1.75X65

1шт.

119

65.91710-0004

RING;STOPPER

desc: BAGUE

2шт.

120

65.90020-0294

BOLT;CYLINDER HEAD

desc: BOULON DE CULASSE

20шт.

121

65.90020-0295

BOLT;CYLINDER HEAD

desc: BOULON DE CULASSE

6шт.

123

06.06125-8723

BOLT;STUD

desc: GOUJON

1шт.

125

65.03901-0055

GASKET;CYLINDER HEAD

desc: JOINT

1шт.

126

65.19202-5005

HOOK;LIFTING

desc: CROCHET

1шт.

128

06.01733-4208

BOLT M10X1.25X22

desc: BOULON A 6 PANS

1шт.

129

06.01733-4409

BOLT;HEX M14X1.5X25

desc: BOULON A 6 PANS

1шт.

130

06.16731-2110

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

131

65.19202-0005

HOOK;LIFTING

desc: CROCHET

1шт.

135

06.01943-3213

BOLT ASS'Y M10X1.25X20

desc: BOULON A 6 PANS

2шт.

136

06.16731-2108

WASHER;SPRING

desc: RONDELLE

1шт.

137

65.26803-7014B

PLUG;GLOW

desc: PRISE DE LUEUR

6шт.

138

65.26810-0007

CONNECTOR

desc: RACCORD

1шт.

201

65.03401-6043A

CYLINDER HEAD COVER ASS'Y

SERIAL: 001129

1шт.

201

65.03401-6057

CYLINDER HEAD COVER ASS'Y

SERIAL: 001130

1шт.

206

65.90501-0028

NUT;CYLINDER HEAD COVER

desc: ECROU

4шт.

207

65.90701-0202

WASHER;PLATE

desc: RONDELLE

4шт.

208

65.03905-0023

GASKET;CYL. HEAD COVER

desc: RONDELLE

4шт.

210

65.01801-0011

CASE;BREATHER

desc: BOITE

1шт.

212

06.04190-8808

BOLT M5X16

desc: VIS

6шт.

213

06.16731-2104

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

214

06.15010-0308

WASHER;PLAIN

desc: RONDELLE

6шт.

218

65.96301-0322

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

219

06.67020-0102

CLAMP

SERIAL: 001129

2шт.

219

06.67020-0102

CLAMP

SERIAL: 001130

1шт.

220

65.01810-5007

CAP;OIL FILLER

desc: VIBREUR

1шт.

223

65.01801-5097

BREATHER PIPE ASS'Y

desc: CLAPET DE RECHANGE

1шт.

224

65.96501-0032B

O-RING

desc: JOINT TORIQUE 36.99x3.53

1шт.

225

65.96001-0008

CAP;RUBBER

SERIAL: 001129

1шт.

226

65.03905-0002B

GASKET;CYLINDER HEAD COVER

desc: RONDELLE D'ETANCHEITE

1шт.

227

65.03903-0001

PACKING;COVER

desc: RONDELLE D'ETANCHEITE

1шт.

228

65.97401-0144

CLIP

desc: CLIP

1шт.
