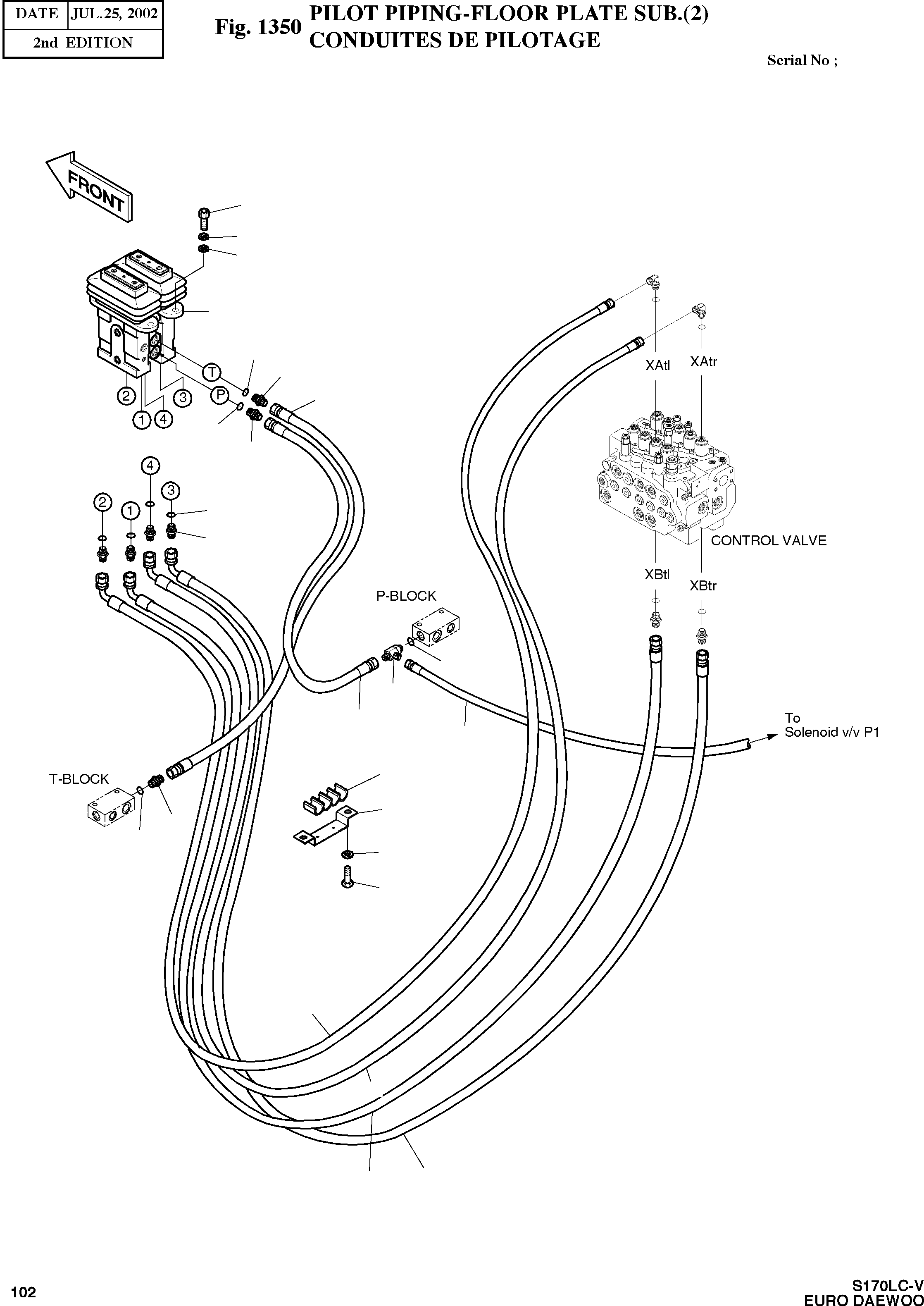

Запчасти Doosan Daewoo PILOT PIPING-FLOOR PLATE SUB.(2) BODY PARTS

-

400-00146A

PILOT PIPING;FLOOR PLATE SUB

SC: D

-2шт.

5

420-00030

VALVE;PEDAL

desc: VANNE

1шт.

6

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

4шт.

7

S5110603

WASHER;SPRING M10

desc: RONDELLE GROWER

4шт.

8

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

13

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD

4шт.

16

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

20

2184-1046D245

HOSE PF3/8-2700L

desc: FLEXIBLE

1шт.

21

2184-1046D274

HOSE PF3/8-3200L

desc: FLEXIBLE

1шт.

22

2184-1046D277

HOSE PF3/8-2750L

desc: FLEXIBLE

1шт.

23

2184-1046D274

HOSE PF3/8-3200L

desc: FLEXIBLE

1шт.

24

2184-1045D156

HOSE PF1/4-350L

desc: FLEXIBLE

1шт.

25

2184-1045D156

HOSE PF1/4-350L

desc: FLEXIBLE

1шт.

38

2184-1046D194

HOSE PF1/4-2800L

desc: FLEXIBLE

1шт.

41

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

45

2181-1951D7

TEE PFO3/8-2PF1/4

desc: TE

1шт.

46

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD

1шт.

48

S5010613

WASHER;PLAIN M10

desc: RONDELLE

4шт.

51

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

1шт.

52

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

1шт.

53

S5102503

WASHER;SPRING

desc: RONDELLE GROWER M8

2шт.

54

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

2шт.
