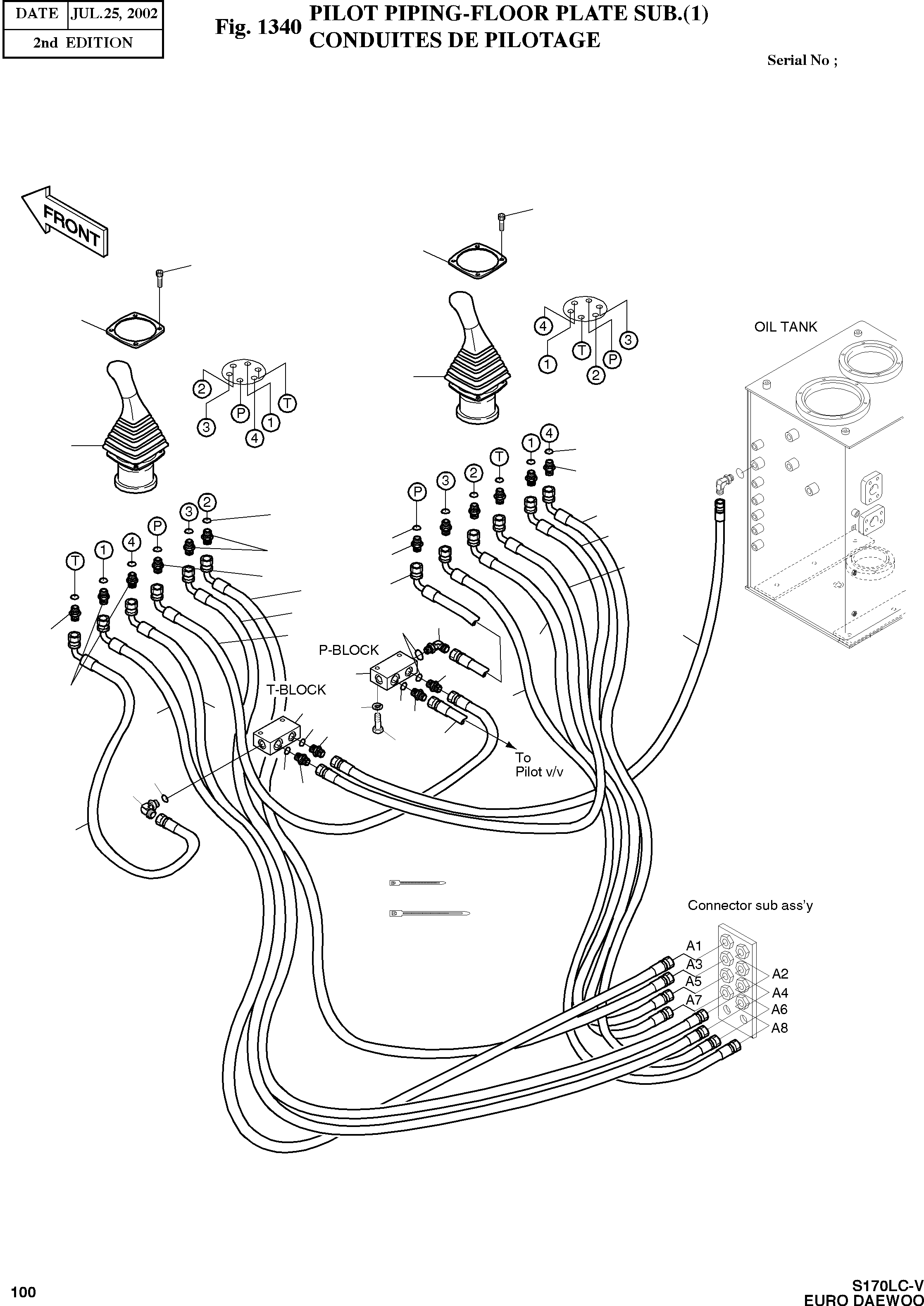

Запчасти Doosan Daewoo PILOT PIPING-FLOOR PLATE SUB.(1) BODY PARTS

-

400-00146A

PILOT PIPING;FLOOR PLATE SUB

SC: D

-2шт.

1

420-00237

VALVE;REMOCON(L.H)

desc: VANNE DE COMMANDE A DISTANCE

1шт.

2

420-00238

VALVE;REMOCON(R.H)

desc: VANNE DE COMMANDE A DISTANCE

1шт.

3

S2205061

BOLT;SOCKT M6X1.0X25

desc: BOULON A 6 PANS

8шт.

4

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

2шт.

8

S8000111

O-RING

desc: JOINT TORIQUE

12шт.

10

2423-1470

BLOCK

desc: BLOC

2шт.

11

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

4шт.

13

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD

9шт.

14

2181-1126D120

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

3шт.

17

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

4шт.

18

2124-1622D1

CLIP;BAND

desc: ATTACHE

4шт.

19

2124-1622D2

CLIP;BAND

desc: ATTACHE

4шт.

26

2184-1267D17

HOSE PF3/8-2550L

desc: FLEXIBLE

1шт.

27

2184-1267D17

HOSE PF3/8-2550L

desc: FLEXIBLE

1шт.

28

2184-1267D17

HOSE PF3/8-2550L

desc: FLEXIBLE

1шт.

29

2184-1267D17

HOSE PF3/8-2550L

desc: FLEXIBLE

1шт.

30

2184-1060D229

HOSE PF3/8-2500L

desc: FLEXIBLE

1шт.

31

2184-1060D229

HOSE PF3/8-2500L

desc: FLEXIBLE

1шт.

32

2184-1060D229

HOSE PF3/8-2500L

desc: FLEXIBLE

1шт.

33

2184-1060D229

HOSE PF3/8-2500L

desc: FLEXIBLE

1шт.

34

2184-1267D9

HOSE PF3/8-1950L

desc: FLEXIBLE

1шт.

35

2184-1267D10

HOSE PF3/8-2050L

desc: FLEXIBLE

1шт.

36

2184-1060D151

HOSE PF3/8-1950L

desc: FLEXIBLE

1шт.

37

2184-1060D151

HOSE PF3/8-1950L

desc: FLEXIBLE

1шт.

40

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

41

S8000141

O-RING

desc: JOINT TORIQUE

4шт.

42

2471-1135

FILTER;ADAPTER

desc: FILTRE

1шт.

43

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

2шт.

44

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

2шт.

47

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

1шт.

49

2184-1026D392

HOSE PF1/2-3300L

desc: FLEXIBLE

1шт.

50

2184-1026D273

HOSE PF1/2-3000L

desc: FLEXIBLE

1шт.
