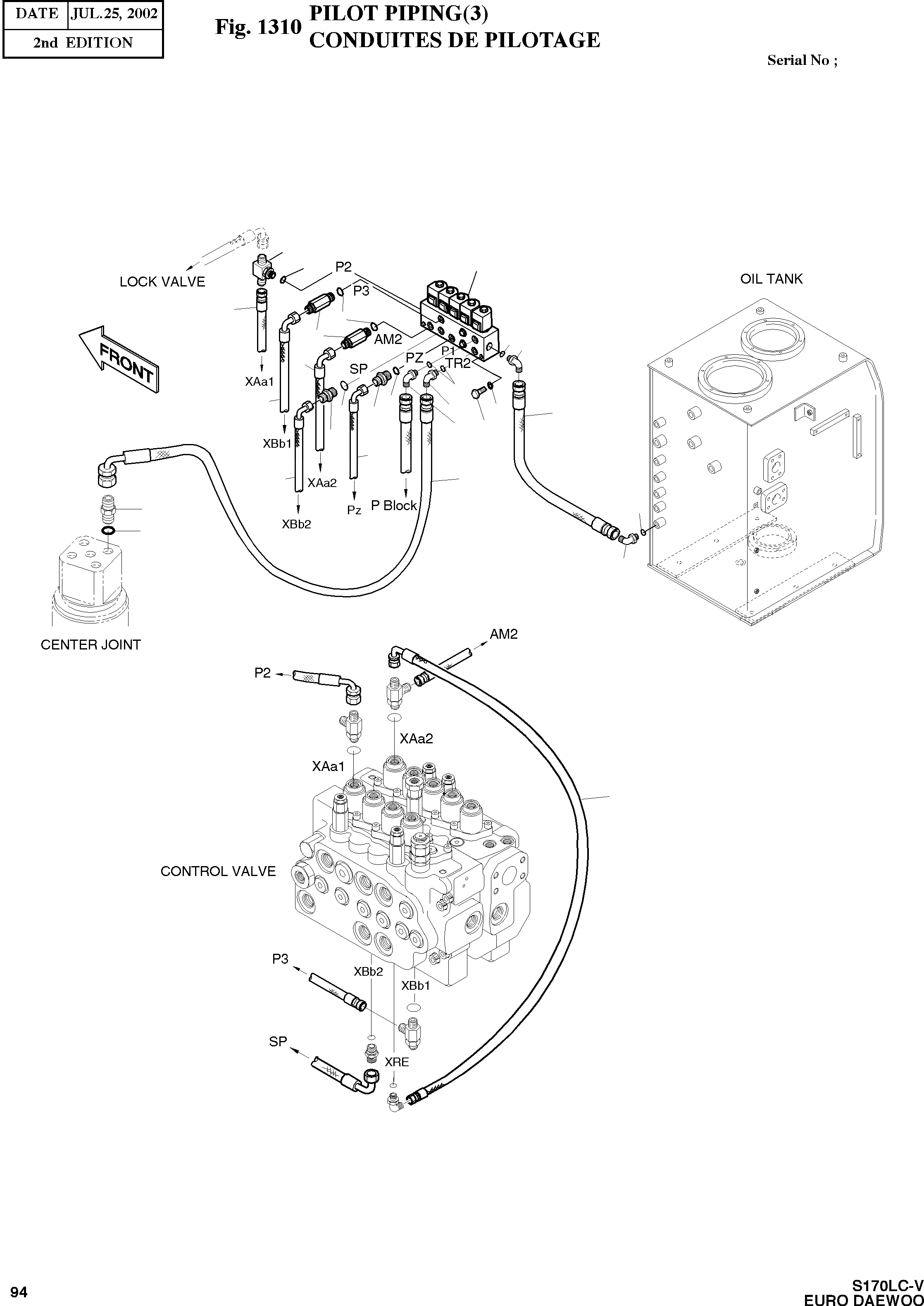

Запчасти Doosan Daewoo PILOT PIPING(3) BODY PARTS

-

9400-1077

PILOT PIPING

SC: D

-2шт.

2

426-00082

VALVE;SOLENOID

desc: VANNE

1шт.

14

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

2шт.

16

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

17

S8000141

O-RING

desc: JOINT TORIQUE

6шт.

18

S8000111

O-RING

desc: JOINT TORIQUE

4шт.

21

2181-1126D27

ADAPTER FPO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

23

2181-1126D14

ADAPTER FPO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

27

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

2шт.

29

2181-1702D56

ELBOW;LONG

desc: COUDE

1шт.

41

2184-1046D91

HOSE PF1/4-1440L

desc: FLEXIBLE

1шт.

44

2184-1061D39

HOSE PF1/4-800L

desc: FLEXIBLE

1шт.

45

2184-1046D236

HOSE PF3/8-570L

desc: FLEXIBLE

1шт.

46

2184-1046D240

HOSE PF3/8-950L

desc: FLEXIBLE

1шт.

47

2184-1045D173

HOSE PF3/8-350L

desc: FLEXIBLE

1шт.

64

2184-1046D83

HOSE PF1/4-830L

desc: FLEXIBLE

1шт.

71

2184-1046D273

HOSE PF3/8-810L

desc: FLEXIBLE

1шт.

72

2184-1061D252

HOSE PF3/8-900L

desc: FLEXIBLE

1шт.

73

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

1шт.

74

2181-1702D57

ELBOW;LONG

desc: COUDE

1шт.

75

2181-2281D13

TEE -3PF3/8

desc: TE

1шт.
